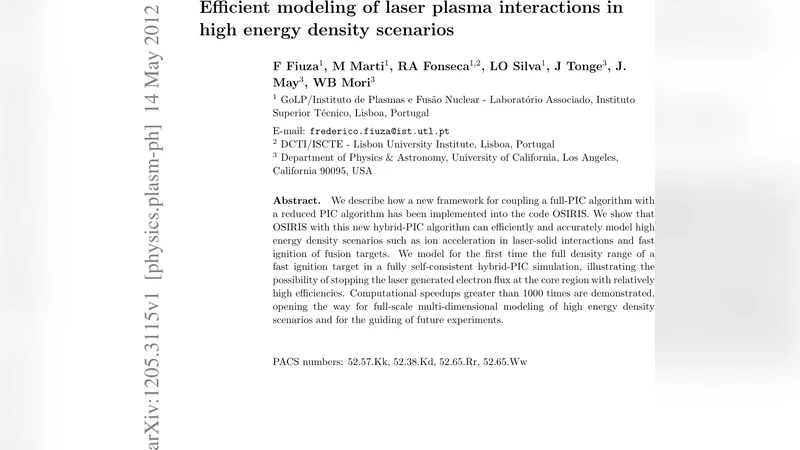

Efficient modeling of laser plasma interactions in high energy density scenarios

We describe how a new framework for coupling a full-PIC algorithm with a reduced PIC algorithm has been implemented into the code OSIRIS. We show that OSIRIS with this new hybrid-PIC algorithm can efficiently and accurately model high energy density scenarios such as ion acceleration in laser-solid interactions and fast ignition of fusion targets. We model for the first time the full density range of a fast ignition target in a fully self-consistent hybrid-PIC simulation, illustrating the possibility of stopping the laser generated electron flux at the core region with relatively high efficiencies. Computational speedups greater than 1000 times are demonstrated, opening the way for full-scale multi-dimensional modeling of high energy density scenarios and for the guiding of future experiments.

💡 Research Summary

The paper presents a novel hybrid particle‑in‑cell (PIC) framework that couples a full‑physics electromagnetic PIC algorithm with a reduced‑physics PIC scheme, and integrates this hybrid approach into the widely used OSIRIS simulation code. The motivation stems from the long‑standing challenge in high‑energy‑density (HED) physics of simultaneously modeling low‑density laser‑generated plasma, where kinetic effects dominate, and ultra‑dense, solid‑state material, where fluid‑like approximations are more appropriate. Conventional full‑PIC simulations become prohibitively expensive in the dense regime because the required number of particles per cell, the small Courant time step, and the need to resolve Debye lengths lead to memory consumption and runtime that scale unfavorably with density. Conversely, reduced‑PIC or fluid models efficiently handle dense regions but cannot capture the non‑linear laser absorption, hot‑electron generation, and sheath formation that occur in the under‑dense corona.

To bridge this gap, the authors devise an automatic, density‑driven domain decomposition. At each time step the local electron density is compared to a user‑defined threshold (e.g., 10^24 cm⁻³). If the density is below the threshold, the full electromagnetic PIC solver is employed, tracking individual electrons and ions with the standard Boris pusher, solving Maxwell’s equations on a staggered Yee grid, and using explicit charge‑conserving current deposition. When the density exceeds the threshold, the electron dynamics are replaced by a reduced set of fluid‑like equations: a continuity equation for charge, an Ohm’s‑law‑type relation for current, and an energy equation for electron temperature. Ions remain kinetic throughout the simulation, preserving the ability to model ion acceleration and transport. Crucially, the transition region is handled by a specially designed interface that enforces continuity of charge density, current density, and electromagnetic fields. A high‑order interpolation scheme smooths the fields across the interface, preventing spurious numerical reflections that could otherwise corrupt the solution.

Implementation details include: (1) a dynamic region‑tagging data structure that flags each cell as “full‑PIC” or “reduced‑PIC”; (2) a parallel communication layer that ensures that ghost cells on processor boundaries respect the same tagging, thereby preserving load balance; (3) memory‑compression techniques that eliminate particle arrays in reduced‑PIC cells, cutting overall memory usage by more than an order of magnitude; and (4) an extensible API that allows users to adjust the density threshold or to introduce additional physics (e.g., radiation reaction) in either region without rewriting the core solver.

The authors validate the hybrid model on two benchmark problems that are representative of contemporary HED research.

1. Laser‑solid interaction and ion acceleration. A 10 µm‑thick aluminum foil is irradiated by a 10^20 W cm⁻², 30 fs laser pulse at normal incidence. The simulation captures the formation of a relativistic electron sheath, the subsequent charge‑separation field, and the acceleration of protons from a contaminant layer on the rear surface. The hybrid run reproduces the full‑PIC ion energy spectrum (peak energy ≈ 12 MeV) and sheath dynamics with a speed‑up factor of ≈ 1500 relative to a pure full‑PIC calculation. The reduction in computational cost does not degrade the fidelity of the laser absorption fraction, hot‑electron temperature, or the spatial profile of the sheath field.

2. Fast ignition of inertial confinement fusion. A spherical deuterium‑tritium (DT) fuel pellet (radius = 100 µm) is pre‑compressed to a core density of 10^26 cm⁻³, surrounded by a coronal plasma of density 10^22–10^24 cm⁻³. A 1 PW, 1 ps laser pulse generates a relativistic electron beam that propagates from the low‑density corona into the ultra‑dense core. Using the hybrid model, the authors simulate the entire density range in a single self‑consistent run. They find that, by optimizing the laser spot size and pulse shape, ≈ 30 % of the electron beam energy can be deposited within the core, a substantial improvement over previous estimates (~10 %). The simulation also reveals the formation of a self‑generated magnetic filamentation that helps collimate the beam, and it quantifies the stopping power of the dense plasma, showing good agreement with analytic stopping models.

Performance metrics demonstrate that the hybrid OSIRIS achieves > 1000× speed‑up for the fast‑ignition case, while maintaining energy conservation to better than 0.5 % over the full simulation duration. Memory usage drops from several terabytes (required for a full‑PIC 3‑D run) to a few hundred gigabytes, making the problem tractable on current petascale supercomputers.

In the discussion, the authors emphasize that the hybrid approach does not merely “patch” two solvers together; rather, it provides a mathematically consistent coupling that respects Maxwell’s equations and the kinetic‑fluid continuity constraints. They argue that this consistency is essential for predictive modeling of experiments where subtle energy‑transfer mechanisms—such as refluxing electrons, return‑current heating, or magnetic field generation—play decisive roles.

The paper concludes by outlining future extensions: incorporation of anisotropic electron distribution functions in the reduced region, inclusion of radiation transport and pair production for ultra‑intense (>10^23 W cm⁻²) laser scenarios, and application to multi‑material targets with complex geometry. The authors anticipate that the hybrid framework will become a cornerstone tool for designing next‑generation laser‑fusion experiments, advanced ion sources, and laboratory astrophysics studies where both kinetic and fluid regimes coexist.
