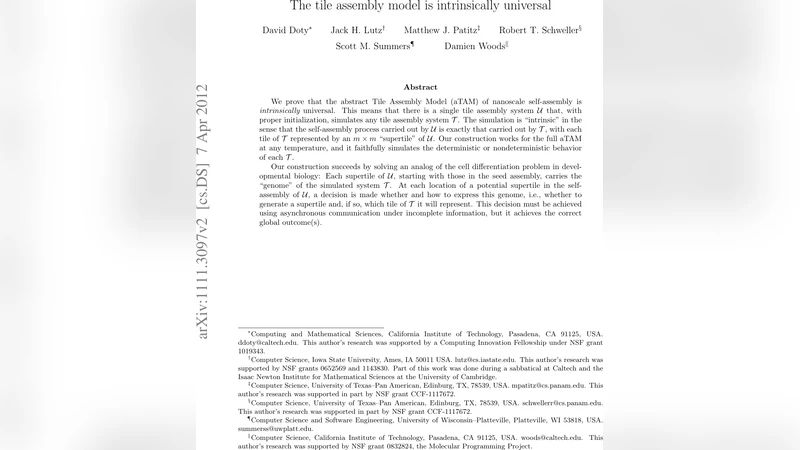

The tile assembly model is intrinsically universal

We prove that the abstract Tile Assembly Model (aTAM) of nanoscale self-assembly is intrinsically universal. This means that there is a single tile assembly system U that, with proper initialization, simulates any tile assembly system T. The simulation is “intrinsic” in the sense that the self-assembly process carried out by U is exactly that carried out by T, with each tile of T represented by an m x m “supertile” of U. Our construction works for the full aTAM at any temperature, and it faithfully simulates the deterministic or nondeterministic behavior of each T. Our construction succeeds by solving an analog of the cell differentiation problem in developmental biology: Each supertile of U, starting with those in the seed assembly, carries the “genome” of the simulated system T. At each location of a potential supertile in the self-assembly of U, a decision is made whether and how to express this genome, i.e., whether to generate a supertile and, if so, which tile of T it will represent. This decision must be achieved using asynchronous communication under incomplete information, but it achieves the correct global outcome(s).

💡 Research Summary

The paper establishes that the abstract Tile Assembly Model (aTAM) is intrinsically universal: a single tile set U, together with an appropriately chosen seed, can simulate any aTAM system T while faithfully reproducing the actual self‑assembly process rather than merely the computational output. In this simulation each tile of T is represented by an m × m “supertile” of U, and the simulation works for both deterministic and nondeterministic systems at any temperature τ (the simulating system U itself operates at temperature 2).

The authors begin by recalling the standard definition of aTAM: tiles are unit squares with glues (labels and strengths) on four sides; a tile can attach to an existing assembly when the total strength of matching glues meets or exceeds the temperature τ. An assembly grows asynchronously, one tile at a time, and may be nondeterministic when several tiles can attach simultaneously.

To formalize “simulation” they introduce an m‑block representation function R that maps each m × m block of tiles from U to a single tile of T, with the requirement that overlapping blocks map consistently. An assembly α of U “clearly maps” to an assembly β of T if every non‑empty block of α corresponds to a tile of β and the blocks are locally contiguous. This block‑replacement viewpoint is the same as used in intrinsic universality for cellular automata, but adapted to the irreversible, space‑filling nature of tile assembly.

The core technical contribution is a construction of U that can carry the entire description of the simulated system T—its “genome”—inside each supertile. Growth proceeds by three primitive mechanisms:

1. Frames – a four‑layer border placed just inside each potential supertile. Frames exchange glue information with neighboring supertiles, and a symmetry‑breaking competition at each corner decides which side “wins” when two frames meet. This resolves conflicts without global coordination.

2. Crawlers – mobile messenger structures that travel around the interior of a supertile, copying and transporting pieces of the genome (tile type, glue labels, temperature information) from one side to another. Crawlers ensure that every side of a supertile eventually knows the correct glue to expose to its neighbor.

3. Probes – thin extensions that reach across the interior of a supertile to the opposite side. Probes are used to test whether the opposite side already exists; if it does, they convey the necessary binding information, and if it does not, they allow the supertile to make a nondeterministic choice consistent with the simulated system T.

When a location becomes eligible for a new supertile, the local frame, crawlers, and probes collectively decide whether a supertile should appear and, if so, which tile of T it represents. The decision uses only locally available information (the glues exposed by neighboring frames and the genome carried by the adjacent supertiles). In deterministic T this yields a unique continuation; in nondeterministic T the construction permits multiple compatible continuations, exactly mirroring the nondeterminism of T.

A crucial aspect of the construction is its handling of arbitrary temperature τ. By normalizing all glue strengths to be at most τ and fixing the simulating temperature to 2, the authors show that any τ‑system can be encoded without loss of power: a tile that would bind at strength τ in T can be simulated by a pattern of strength‑2 bonds in U that collectively enforce the same binding condition.

The paper also situates its result within prior work. Earlier notions of universality for aTAM (e.g., Winfree’s universal Turing‑machine simulation) only captured computational equivalence, not the dynamics of self‑assembly. A previous intrinsic‑universality result for a restricted sub‑model required temperature 2, prohibited glue mismatches, and limited bond strengths, making it biologically implausible. The present construction removes all those artificial constraints, proving intrinsic universality for the full aTAM.

Technical challenges stem from the irreversible nature of tiles (once placed they cannot be moved) and the highly asynchronous, nondeterministic growth. The authors’ three‑primitive toolkit avoids dead‑ends and “junk” assemblies by ensuring that every partial assembly either extends toward a valid simulated assembly or can be uniquely completed. The genome‑copying process guarantees that no information is lost as the assembly expands, and the competition at frame corners prevents blocking of necessary communication paths.

In conclusion, the authors demonstrate that a single tile set U is capable of simulating any aTAM system T with exact fidelity to the original self‑assembly dynamics. This establishes a closure property for aTAM: the model is universal for itself without recourse to external computational models such as Turing machines. The result opens new avenues for fine‑grained comparison of self‑assembly models, suggests a hierarchy analogous to that in cellular automata, and provides a conceptual framework (genome, differentiation, communication primitives) that may be extended to more complex or error‑prone self‑assembly settings.
