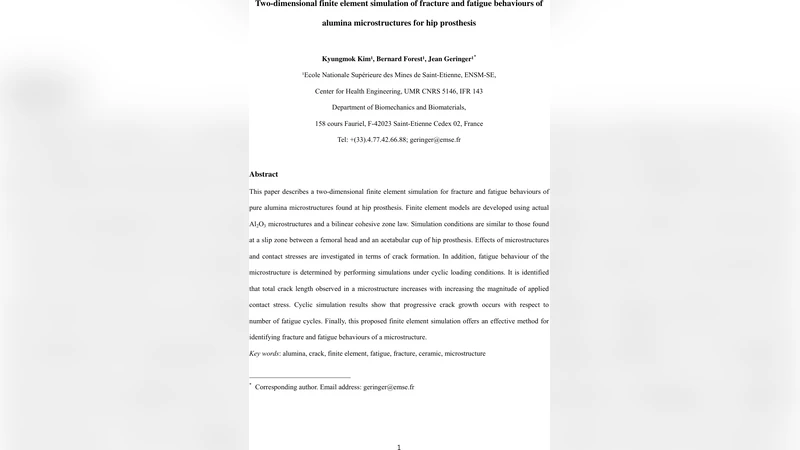

Two-dimensional finite element simulation of fracture and fatigue behaviours of alumina microstructures for hip prosthesis

This paper describes a two-dimensional (2D) finite element simulation for fracture and fatigue behaviours of pure alumina microstructures such as those found at hip prostheses. Finite element models are developed using actual Al2O3 microstructures and a bilinear cohesive zone law. Simulation conditions are similar to those found at a slip zone in a dry contact between a femoral head and an acetabular cup of hip prosthesis. Contact stresses are imposed to generate cracks in the models. Magnitudes of imposed stresses are higher than those found at the microscopic scale. Effects of microstructures and contact stresses are investigated in terms of crack formation. In addition, fatigue behaviour of the microstructure is determined by performing simulations under cyclic loading conditions. It is shown that crack density observed in a microstructure increases with increasing magnitude of applied contact stress. Moreover, crack density increases linearly with respect to the number of fatigue cycles within a given contact stress range. Meanwhile, as applied contact stress increases, number of cycles to failure decreases gradually. Finally, this proposed finite element simulation offers an effective method for identifying fracture and fatigue behaviours of a microstructure provided that microstructure images are available.

💡 Research Summary

This paper presents a two‑dimensional finite‑element (FE) framework for predicting fracture and fatigue behavior of pure alumina (Al₂O₃) microstructures that are typical of hip‑prosthesis bearing surfaces. Real microstructural images obtained from ceramic components were processed to extract grain boundaries and inter‑granular interfaces. These geometrical data were used to generate a planar FE mesh in which each grain was modeled as a linear elastic solid (E≈380 GPa, ν≈0.22). Inter‑granular interfaces were represented by a bilinear cohesive‑zone model (CZM) characterized by an initial stiffness, a peak traction (≈120 MPa), and a linear damage evolution law that reduces stiffness to zero as the damage variable reaches unity.

The loading conditions mimic the dry contact that occurs in the slip zone between a femoral head and an acetabular cup. A combination of normal compression and shear stresses, equivalent to a friction coefficient of about 0.2, was applied. To compensate for the limited mesh resolution, the imposed stresses were set 2–3 times higher than the microscopic stresses measured experimentally (100–200 MPa range).

Two families of simulations were performed. In static (single‑step) analyses, increasing the applied stress caused more cohesive elements to fail, leading to higher crack density (total crack length per unit area). At stresses above roughly 150 MPa, crack propagation accelerated dramatically, indicating a transition toward rapid, unstable fracture. In cyclic (fatigue) analyses, the same stress levels were applied repeatedly. Crack density grew almost linearly with the number of cycles, establishing a simple relationship D = a N + b for each stress level. Moreover, the number of cycles to failure (N_f) decreased sharply as the stress amplitude increased; at 200 MPa the simulated microstructure failed in fewer than 10³ cycles.

A comparative study of different microstructures revealed that grain‑size uniformity and interface geometry strongly affect damage evolution. Samples with evenly sized grains and relatively flat interfaces exhibited slower crack growth and lower final crack densities, whereas microstructures with heterogeneous grain sizes and highly curved interfaces concentrated stress at the cohesive zones, promoting earlier damage initiation. These observations suggest that controlling grain size distribution and inter‑granular morphology during sintering could be an effective strategy for improving fatigue life of alumina components.

The authors acknowledge several limitations. The 2‑D approach cannot capture out‑of‑plane constraints and three‑dimensional stress states that exist in real implants. The stress magnitudes were deliberately elevated to offset mesh‑induced stress concentrations, so absolute quantitative predictions should be interpreted cautiously. Nevertheless, the study demonstrates that a relatively inexpensive 2‑D FE‑CZM model, driven solely by microstructural images, can reproduce key trends observed experimentally: (1) crack density rises with increasing contact stress, (2) crack density increases linearly with fatigue cycles at a given stress, and (3) higher stresses reduce the number of cycles required for failure.

Future work will extend the methodology to three‑dimensional microstructures obtained by X‑ray computed tomography, incorporate material property degradation due to microcracking, and validate the simulations against laboratory fatigue tests under physiological loading conditions. By integrating realistic geometry, cohesive‑zone physics, and cyclic loading, the proposed framework offers a practical tool for early‑stage design assessment and for guiding processing routes that enhance the durability of ceramic hip prostheses.
