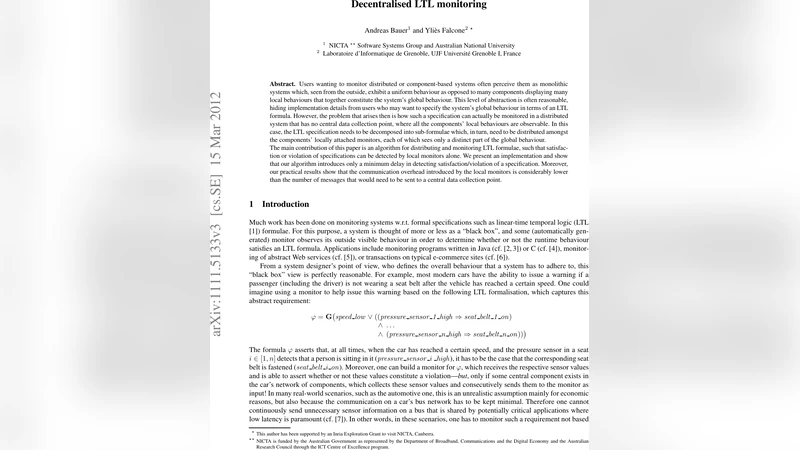

Decentralised LTL Monitoring

Users wanting to monitor distributed or component-based systems often perceive them as monolithic systems which, seen from the outside, exhibit a uniform behaviour as opposed to many components displaying many local behaviours that together constitute the system’s global behaviour. This level of abstraction is often reasonable, hiding implementation details from users who may want to specify the system’s global behaviour in terms of an LTL formula. However, the problem that arises then is how such a specification can actually be monitored in a distributed system that has no central data collection point, where all the components’ local behaviours are observable. In this case, the LTL specification needs to be decomposed into sub-formulae which, in turn, need to be distributed amongst the components’ locally attached monitors, each of which sees only a distinct part of the global behaviour. The main contribution of this paper is an algorithm for distributing and monitoring LTL formulae, such that satisfac- tion or violation of specifications can be detected by local monitors alone. We present an implementation and show that our algorithm introduces only a minimum delay in detecting satisfaction/violation of a specification. Moreover, our practical results show that the communication overhead introduced by the local monitors is considerably lower than the number of messages that would need to be sent to a central data collection point.

💡 Research Summary

The paper addresses the challenge of monitoring distributed, component‑based systems against a global Linear Temporal Logic (LTL) specification without relying on a central data collector. In many real‑world settings—automotive, avionics, distributed databases—components generate local event streams that together constitute the system’s global behavior, yet transmitting all events to a single monitor is impractical due to bandwidth, latency, and safety constraints. The authors propose a decentralized monitoring algorithm that distributes the global LTL formula among local monitors attached to each component, allowing each monitor to decide satisfaction or violation based solely on its own observations and limited communication with peers.

The system model assumes n components communicating over a synchronous bus; each component Ci observes a disjoint set of events Σi, and the global alphabet Σ = 2^AP where AP is the set of atomic propositions. A projection function Πi maps global propositions to the local view of monitor Mi. The core technical tool is LTL progression, a rewriting operation P(ϕ, σ) that, given a formula ϕ and a current event σ, produces a new formula representing the remaining obligation after σ has occurred. The authors recall the classic semantics: σ·w ⊨ ϕ iff w ⊨ P(ϕ, σ). Progression yields ⊤ (true) when the current prefix is a good prefix of the language L(ϕ), ⊥ (false) when it is a bad prefix, and otherwise a non‑trivial formula.

The decentralized algorithm works in discrete time steps. At each step t, each monitor Mi receives its local event σi(t) and applies progression to its current local formula ψi(t), obtaining ψi(t+1). If ψi(t+1) evaluates to ⊤ (or ⊥), Mi can immediately declare that the global specification is satisfied (or violated). When ψi(t+1) remains a non‑trivial formula, Mi extracts future obligations that involve propositions observable by other components, projects them with Πj, and sends them as messages to the relevant monitors. Received obligations are conjunctively merged with the local formula before the next progression step. Because messages are only sent when a monitor’s local view cannot resolve the obligation, communication overhead is dramatically reduced compared to a naïve centralised approach where every event is broadcast.

Two fundamental theorems are proved. The first shows that any local ⊤/⊥ verdict is a sufficient condition for a global verdict, guaranteeing soundness. The second shows that if the global trace eventually satisfies (or violates) the specification, then some monitor will inevitably produce a ⊤ (or ⊥) verdict after a finite number of steps, ensuring completeness. The proofs rely on the semantics of good/bad prefixes and the monotonic propagation of obligations across monitors.

The authors implement a prototype in Java, simulating a synchronous bus and the message‑passing protocol. Experiments cover two realistic benchmarks: (1) an automotive scenario with speed, pressure, and seat‑belt sensors across ten components, and (2) a distributed transaction scenario with five database nodes. Results indicate that the decentralized approach incurs at most one‑to‑two time‑step delay in detecting violations, while reducing total message traffic by 70–85 % relative to a centralized collector. To prevent formula blow‑up, the implementation incorporates simplification rules (duplicate elimination, logical equivalences), keeping the size of progressed formulas bounded in practice.

The paper discusses extensions such as handling asynchronous networks (by adding timestamps and buffering), supporting richer specifications (e.g., combining LTL with CTL or real‑time constraints), and automatically optimizing the distribution of sub‑formulas and communication schedules. The authors conclude that their progression‑based decentralized monitoring framework offers a theoretically sound, practically efficient solution for runtime verification of distributed systems where minimal communication and low latency are paramount.
