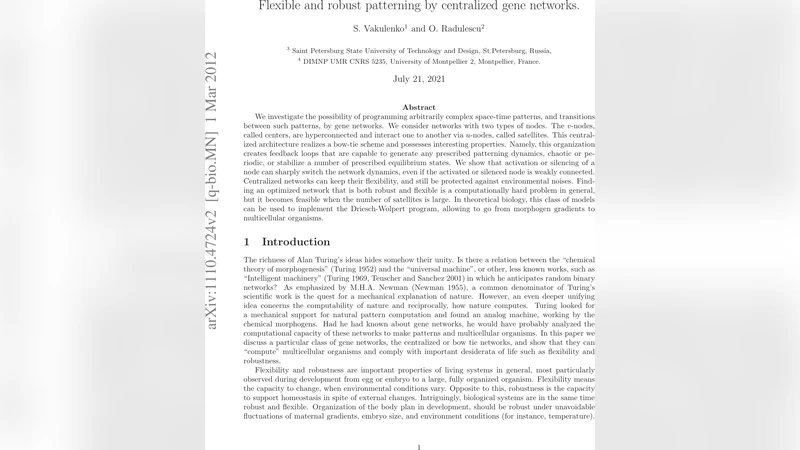

Flexible and robust patterning by centralized gene networks

We consider networks with two types of nodes. The v-nodes, called centers, are hyperconnected and interact one to another via many u-nodes, called satellites. This centralized architecture, widespread in gene networks, realize a bow-tie scheme and possesses interesting properties. Namely, this organization creates feedback loops that are capable to generate any prescribed patterning dynamics, chaotic or periodic, and create a number of equilibrium states. We show that activation or silencing of a node can sharply switch the network attractor, even if the activated or silenced node is weakly connected. We distinguish between two dynamically different situations, “power of center” (PC) when satellite response is fast and “satellite power” (SP) when center response is fast. Using a simple network example we show that a centralized network is more robust with respect to time dependent perturbations, in the PC relative to the SP case. In theoretical molecular biology, this class of models can be used to reveal a non-trivial relation between the architecture of protein-DNA and protein-protein interaction networks and controllability of space-time dynamics of cellular processes.

💡 Research Summary

The paper introduces a mathematically rigorous framework for “centralized” gene regulatory networks, consisting of a small set of highly connected hub nodes (v‑nodes, called centers) and a large set of peripheral nodes (u‑nodes, called satellites). Interactions are encoded in three matrices: A (center → satellite), B (center ↔ center), and C (satellite → center). The authors assume that satellites react and diffuse much faster than centers, which leads to two distinct dynamical regimes: “center power” (PC) where satellite dynamics is fast, and “satellite power” (SP) where center dynamics is fast.

First, the authors prove existence, uniqueness, non‑negativity, and boundedness of solutions for the full reaction‑diffusion system (equations (1)–(2)). They show that all trajectories enter a compact absorbing set, establishing a global dissipative semiflow.

Next, exploiting the time‑scale separation, they perform a singular‑perturbation reduction: satellite concentrations u can be expressed as a smooth function U(v) of the slow center variables plus a small remainder. Consequently, the long‑term dynamics is governed by a reduced ODE system for v alone.

The central theoretical result (Proposition 2.3) demonstrates that, for any prescribed structurally stable dynamical behavior—periodic orbit, chaotic attractor, or a set of equilibria—there exists a choice of matrices A, B, C and of the sigmoidal activation function σ such that the reduced system reproduces exactly that behavior. In other words, a centralized network can be programmed to generate essentially any desired spatio‑temporal pattern.

A second major theorem (Theorem 2.5) interprets this flexibility biologically: by fixing a morphogen gradient m(x) that varies across space, each cell experiences a different effective input to its center nodes, thereby realizing a “multicellular organism” in which each cell type follows a distinct attractor. This provides a rigorous implementation of the Driesch‑Wolpert positional information paradigm.

The paper also investigates controllability via gene activation or silencing. Even a weakly connected satellite, when switched on or off, can induce a sharp bifurcation of the whole network’s attractor landscape. This extends previous observations that hub mutations have large effects, showing that control does not require targeting hubs.

Robustness is addressed by formulating the design problem (the “Computation of a Robust Organism”, CRO) as an optimization over a discrete spin‑Hamiltonian. When the number of satellites N is large, the authors prove that the optimization can be solved in polynomial time, POLY(N). Thus, despite the combinatorial nature of designing a robust, flexible pattern, the problem becomes tractable for realistic network sizes.

Finally, the authors compare the PC and SP regimes through numerical simulations. The PC case (fast satellites) exhibits markedly higher resistance to time‑dependent perturbations than the SP case, confirming that the bow‑tie architecture confers intrinsic noise‑filtering properties when peripheral nodes act on a faster time scale.

Overall, the work establishes that centralized gene networks possess a unique combination of flexibility (ability to encode arbitrary dynamics) and robustness (stability against environmental fluctuations). The mathematical proofs, together with constructive algorithms, suggest that such architectures could be naturally selected during evolution and may serve as design principles for synthetic biology applications.
