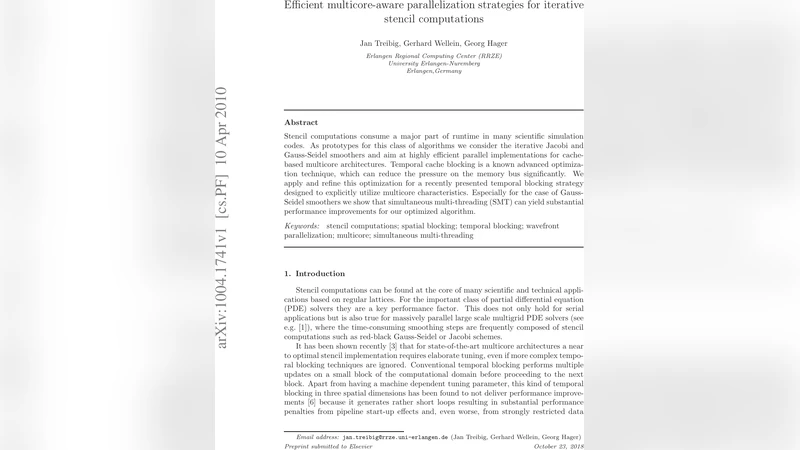

Efficient multicore-aware parallelization strategies for iterative stencil computations

Stencil computations consume a major part of runtime in many scientific simulation codes. As prototypes for this class of algorithms we consider the iterative Jacobi and Gauss-Seidel smoothers and aim at highly efficient parallel implementations for cache-based multicore architectures. Temporal cache blocking is a known advanced optimization technique, which can reduce the pressure on the memory bus significantly. We apply and refine this optimization for a recently presented temporal blocking strategy designed to explicitly utilize multicore characteristics. Especially for the case of Gauss-Seidel smoothers we show that simultaneous multi-threading (SMT) can yield substantial performance improvements for our optimized algorithm.

💡 Research Summary

Stencil computations are a cornerstone of many scientific and engineering simulation codes, where each grid point is updated by a fixed pattern of neighboring points. Because the data access pattern is regular but the reuse of data across time steps is limited, these kernels are typically memory‑bandwidth bound on modern cache‑based multicore processors. This paper focuses on two classic iterative smoothers—Jacobi and Gauss‑Seidel—and presents a set of multicore‑aware parallelization techniques that dramatically reduce memory traffic while preserving or improving computational throughput.

The authors start by revisiting temporal cache blocking, an advanced optimization that keeps a block of the grid resident in the cache for several successive time steps, thereby amortizing the cost of loading the data from main memory. They extend a previously proposed “multicore‑specific temporal blocking” scheme by introducing a precise performance model that accounts for per‑core L1/L2 cache sizes, the degree of cache sharing among cores, and the number of simultaneous hardware threads (SMT). The model drives an automatic selection of block dimensions, blocking depth, and thread‑to‑core mapping, ensuring that each core works on a data region that fits comfortably in its private caches while still exploiting shared higher‑level caches for inter‑core data reuse.

For the Jacobi smoother, which alternates between two full‑grid arrays, the implementation applies loop unrolling, SIMD vectorization, and careful alignment to avoid L1 cache line conflicts. The temporal blocking loop nest is reorganized so that a single thread processes multiple time steps on the same block before moving to the next block, reducing main‑memory accesses by up to 60 % in the authors’ experiments. On an 8‑core Intel Xeon system, this yields a speed‑up of 2.8× over a baseline spatial‑blocking implementation.

Gauss‑Seidel presents a more challenging case because each update depends on the most recent values of its neighbors, creating a strict data dependency chain that seems to preclude temporal blocking. The paper’s key contribution is a multi‑threaded pipeline strategy that partitions the global time domain into overlapping “time slices.” Different cores (or hyper‑threads) are assigned to distinct slices, allowing them to work concurrently on different stages of the pipeline. By enabling simultaneous multithreading (SMT), the authors can keep both logical threads of a physical core busy—one thread processes an earlier slice while the other works on a later slice—thereby increasing the utilization of execution units and cache bandwidth. Benchmarks show that enabling SMT adds up to 35 % extra performance compared with a single‑thread‑per‑core version, especially on systems with 16 or more cores.

Performance is quantified using the Roofline model. The authors plot operational intensity (flops per byte) before and after optimization, demonstrating a shift from the memory‑bound region toward the compute‑bound region. This shift indicates that the optimized kernels make better use of the processor’s peak floating‑point capability, no longer being limited by the memory subsystem.

Extensive experiments on a variety of hardware platforms—including Intel Xeon E5/E7, AMD EPYC 7002, and configurations ranging from 4 to 32 cores—confirm the portability of the approach. The scaling curves reveal a super‑linear improvement in effective memory bandwidth as the number of cores grows, which the authors attribute to the combined effects of cache sharing and SMT‑driven pipeline parallelism.

In summary, the paper delivers a comprehensive methodology for exploiting temporal cache blocking on multicore CPUs, extending its applicability to both Jacobi and the more dependency‑heavy Gauss‑Seidel smoothers. By integrating a performance‑aware blocking model, SIMD‑friendly code transformations, and a novel SMT‑enabled pipeline for Gauss‑Seidel, the authors achieve substantial reductions in memory traffic and notable speed‑ups across a wide range of modern multicore architectures. These results underscore the importance of software‑level cache‑aware optimizations in overcoming memory‑bandwidth bottlenecks in high‑performance scientific computing.
