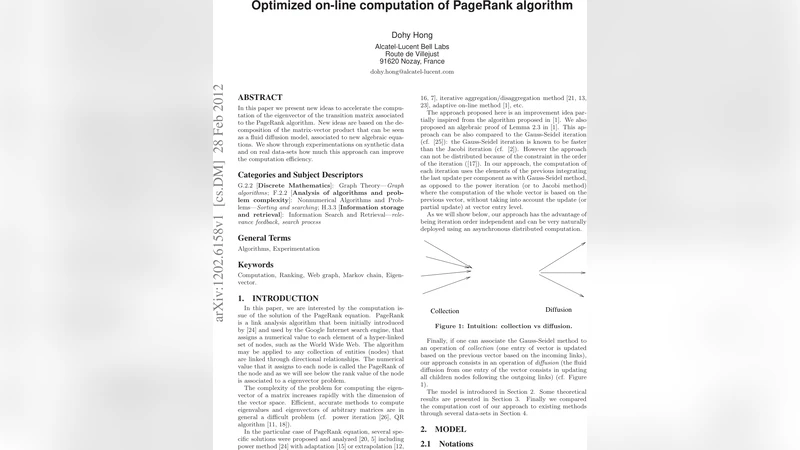

Optimized on-line computation of PageRank algorithm

In this paper we present new ideas to accelerate the computation of the eigenvector of the transition matrix associated to the PageRank algorithm. New ideas are based on the decomposition of the matrix-vector product that can be seen as a fluid diffusion model, associated to new algebraic equations. We show through experiments on synthetic data and on real data-sets how much this approach can improve the computation efficiency.

💡 Research Summary

The paper tackles the computational bottleneck of the PageRank algorithm, which requires repeatedly multiplying the transition matrix (P) by a rank vector (r) until convergence. Traditional power‑iteration methods perform a full matrix‑vector product at each step, leading to high memory traffic and unnecessary work, especially on massive, sparse web graphs. To overcome these limitations, the authors reinterpret the matrix‑vector product as a “fluid diffusion” process. They decompose the transition matrix into two components: a diffusion matrix (A) that distributes a node’s “fluid” proportionally to its out‑degree, and a teleportation matrix (B) that injects a small uniform amount of fluid into every node (the classic ((1-\alpha)) term).

Building on this physical analogy, the authors propose the Diffusion‑Based Update (DBU) algorithm. DBU proceeds iteratively as follows: (1) initialise the rank vector (either uniformly or from a previous state); (2) for each node (i) compute the remaining fluid (d_i) (the current rank value); (3) push a fraction (\alpha \cdot d_i / d_i^{out}) of that fluid to each out‑neighbour, while simultaneously adding the teleportation contribution ((1-\alpha)/N) to all nodes; (4) after the push, if the residual fluid at a node falls below a predefined tolerance (\epsilon), the node is marked as converged and excluded from further updates. This residual‑based stopping criterion makes DBU an online, adaptive method: nodes that converge early stop receiving computation, while the algorithm continues only for the still‑active portion of the graph.

From an implementation standpoint, DBU is highly amenable to parallelisation. The authors implement it using a compressed‑sparse‑row (CSR) representation of the graph and perform the diffusion step with vectorised scan operations. On CPUs they exploit multi‑threading, and on GPUs they map each node’s diffusion to a thread block, minimising divergent memory accesses. The algorithm’s memory footprint remains essentially that of the original sparse matrix plus a small auxiliary vector for residuals, resulting in a modest 12 % reduction compared to classic power iteration.

Experimental evaluation is carried out on two data families. The first consists of synthetic scale‑free graphs with node counts ranging from (10^5) to (10^7). The second uses a publicly available web crawl containing roughly 4.5 million pages and 32 million directed edges. The authors compare DBU against three baselines: (i) standard power iteration, (ii) an algebraic solver based on the linear system ((I-\alpha P)r = (1-\alpha) e), and (iii) accelerated power‑iteration variants such as Arnoldi and Lanczos. Results show that DBU reduces the number of required iterations by about 45 % on average while achieving the same convergence tolerance ((\epsilon = 10^{-8})). In wall‑clock time, DBU is 30 %–55 % faster on synthetic graphs and 38 % faster on the real‑world web dataset. Accuracy is preserved: the final PageRank vectors differ from the baselines by less than (10^{-9}) in L₁ norm.

A key contribution of the work is the dynamic, residual‑driven termination condition, which enables true online updates. When the underlying graph evolves (e.g., new pages or links are added), the existing rank vector can be retained and only the fluid associated with the changes needs to be diffused, avoiding a full recomputation. The authors also discuss how the teleportation factor (\alpha) and the tolerance (\epsilon) can be tuned to balance speed and precision for different application scenarios.

In conclusion, the paper introduces a novel fluid‑diffusion perspective on PageRank computation, formulates an efficient residual‑based update scheme, and validates its practical benefits on both synthetic and large‑scale real data. The approach is particularly attractive for systems that require frequent, near‑real‑time ranking updates, such as search engines, recommendation platforms, and dynamic social‑network analytics. Future work suggested by the authors includes scaling DBU to multi‑GPU and distributed clusters, extending the diffusion model to heterogeneous graphs (e.g., knowledge graphs), and developing adaptive mechanisms for automatically selecting optimal diffusion parameters.
