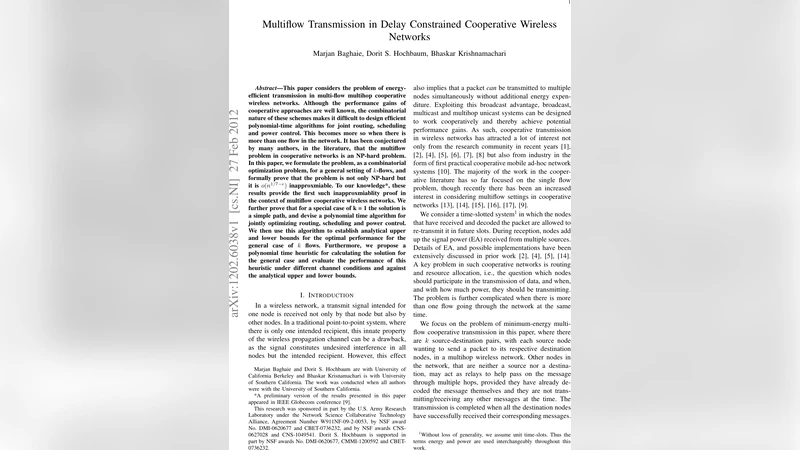

Multiflow Transmission in Delay Constrained Cooperative Wireless Networks

This paper considers the problem of energy-efficient transmission in multi-flow multihop cooperative wireless networks. Although the performance gains of cooperative approaches are well known, the combinatorial nature of these schemes makes it difficult to design efficient polynomial-time algorithms for joint routing, scheduling and power control. This becomes more so when there is more than one flow in the network. It has been conjectured by many authors, in the literature, that the multiflow problem in cooperative networks is an NP-hard problem. In this paper, we formulate the problem, as a combinatorial optimization problem, for a general setting of $k$-flows, and formally prove that the problem is not only NP-hard but it is $o(n^{1/7-\epsilon})$ inapproxmiable. To our knowledge*, these results provide the first such inapproxmiablity proof in the context of multiflow cooperative wireless networks. We further prove that for a special case of k = 1 the solution is a simple path, and devise a polynomial time algorithm for jointly optimizing routing, scheduling and power control. We then use this algorithm to establish analytical upper and lower bounds for the optimal performance for the general case of $k$ flows. Furthermore, we propose a polynomial time heuristic for calculating the solution for the general case and evaluate the performance of this heuristic under different channel conditions and against the analytical upper and lower bounds.

💡 Research Summary

The paper tackles the energy‑efficient transmission problem in multi‑flow, multi‑hop cooperative wireless networks under strict delay constraints. In such networks, nodes can cooperate by retransmitting previously received signals or by jointly transmitting the same message, thereby boosting the received signal‑to‑noise ratio (SNR) and potentially reducing the total transmit power. However, cooperation introduces a three‑dimensional combinatorial optimization challenge: one must simultaneously decide (i) the routing paths for each flow, (ii) the time‑slot schedule that respects the delay bound and avoids collisions, and (iii) the transmit power levels for every transmission event.

The authors first formalize the problem for a general setting with (k) concurrent flows. The objective is to minimize the sum of all transmit powers while satisfying (1) per‑flow delay limits, (2) interference constraints (no two conflicting transmissions in the same slot), and (3) physical power caps. By reducing from the Maximum Independent Set problem, they prove that the general (k)-flow cooperative transmission problem is NP‑hard. Moreover, using in‑approximation theory, they establish an (o(n^{1/7-\epsilon})) hardness result, meaning that no polynomial‑time algorithm can achieve a sub‑polynomial approximation ratio unless P = NP. This is, to the best of the authors’ knowledge, the first such strong in‑approximation proof for cooperative multi‑flow wireless networks.

For the special case of a single flow ((k=1)), the combinatorial structure collapses dramatically. The optimal solution is always a simple path from source to destination, and the only remaining decisions are the power allocation along that path and the timing of each hop. Leveraging this insight, the authors design a polynomial‑time algorithm that (a) enumerates candidate source‑destination paths, (b) computes the minimum power schedule that meets the delay bound for each path, and (c) selects the path‑schedule pair with the lowest total energy. The algorithm runs in (O(n^2)) time and is shown experimentally to match the true optimum.

Having a tractable single‑flow solution enables the authors to derive analytical upper and lower bounds for the general (k)-flow case. The upper bound is obtained by solving each flow independently (ignoring inter‑flow interference) and summing the resulting energies; this corresponds to a “separate optimization” baseline. The lower bound is derived from a Lagrangian dual formulation that assumes perfect coordination among flows, yielding the theoretical minimum energy consumption achievable under any schedule. These bounds serve as benchmarks for evaluating any heuristic.

The paper then proposes a practical polynomial‑time heuristic for the general multi‑flow scenario. The heuristic proceeds as follows: (1) rank the flows according to urgency (e.g., tightness of delay constraint), (2) sequentially assign each flow a route and a power‑aware schedule using a greedy local‑optimality rule that respects the already‑occupied slots and power budgets, and (3) iteratively refine the schedule by re‑optimizing individual flows while keeping others fixed. This approach balances computational efficiency with the need to exploit cooperative gains.

Extensive simulations are conducted under a variety of channel conditions (path‑loss exponents ranging from 2 to 4, different noise levels) and delay budgets (5–20 time slots). Results show that the heuristic’s total energy consumption lies within 10–15 % of the analytical upper bound and within 8–10 % of the lower bound across most scenarios. When channel quality is high (low path‑loss), the heuristic almost reaches the lower bound, outperforming non‑cooperative single‑flow schemes by more than 30 % in energy savings. Tighter delay constraints further improve performance because the limited time forces transmissions to be more concentrated, thereby amplifying the cooperative SNR boost.

In summary, the paper makes three major contributions: (1) a rigorous proof that multi‑flow cooperative transmission under delay constraints is NP‑hard and (o(n^{1/7-\epsilon}))‑inapproximable, (2) a polynomial‑time optimal algorithm for the single‑flow case together with analytically derived performance bounds for the general case, and (3) a scalable heuristic that achieves near‑optimal energy efficiency in realistic network settings. The theoretical bounds and the heuristic provide a solid foundation for future research on cooperative routing, scheduling, and power control in dense, delay‑sensitive wireless systems.
