Rapid simulation of protein motion: merging flexibility, rigidity and normal mode analyses

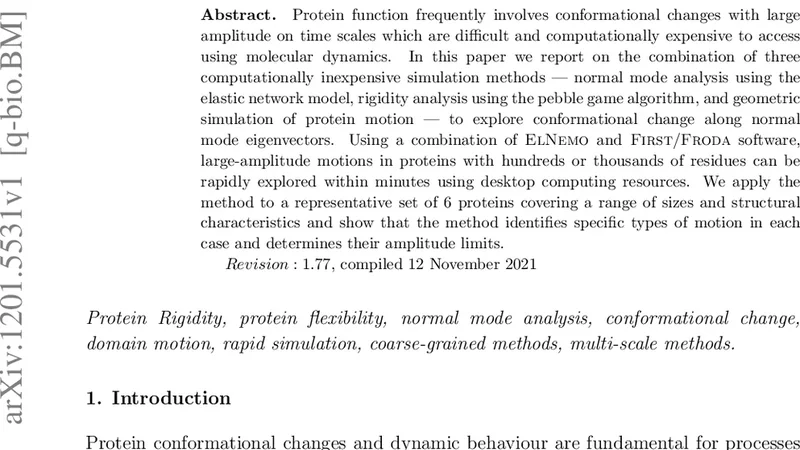

Protein function frequently involves conformational changes with large amplitude on timescales which are difficult and computationally expensive to access using molecular dynamics. In this paper, we report on the combination of three computationally inexpensive simulation methods-normal mode analysis using the elastic network model, rigidity analysis using the pebble game algorithm, and geometric simulation of protein motion-to explore conformational change along normal mode eigenvectors. Using a combination of ELNEMO and FIRST/FRODA software, large-amplitude motions in proteins with hundreds or thousands of residues can be rapidly explored within minutes using desktop computing resources. We apply the method to a representative set of six proteins covering a range of sizes and structural characteristics and show that the method identifies specific types of motion in each case and determines their amplitude limits.

💡 Research Summary

Protein function often relies on large‑scale conformational changes that occur on timescales inaccessible to conventional molecular dynamics (MD) simulations because of the prohibitive computational cost. In this study the authors present a hybrid workflow that combines three inexpensive computational techniques—elastic network model (ENM) normal‑mode analysis, rigidity analysis via the pebble‑game algorithm, and geometric motion simulation—to rapidly explore biologically relevant motions along low‑frequency normal‑mode eigenvectors.

The workflow begins with ELNEMO, which builds a coarse‑grained ENM of the protein and computes its lowest normal modes. These modes provide a set of collective displacement vectors that approximate the directions in which the protein can most easily deform. Next, the FIRST program applies the pebble‑game algorithm to the same structure, treating covalent bonds, hydrogen bonds, and salt bridges as constraints. This step partitions the structure into rigid clusters and flexible regions, yielding a map of mechanical rigidity that can be used to filter out physically implausible deformations. Finally, the FRODA (Flexible Rigid‑body Dynamics Algorithm) engine performs a geometric simulation: it incrementally moves the atoms along a chosen normal‑mode direction while continuously enforcing the rigidity constraints identified by FIRST. Collisions and bond‑angle violations are checked at each step, ensuring that the generated trajectory remains within the space of sterically and mechanically feasible conformations.

To validate the approach, the authors applied the pipeline to six proteins that span a broad range of sizes (from ~120 to >2000 residues) and structural motifs, including hemoglobin, a membrane transporter, a ribosomal subunit, an enzyme (trypsin), a DNA‑binding protein, and a small SH3 domain. For each system the first three low‑frequency modes were examined. The rigidity analysis identified the locations of flexible hinges and rigid cores, and FRODA was used to increase the amplitude of the mode in 0.1 Å increments until a constraint violation occurred, thereby defining an upper bound for the biologically relevant motion.

Key findings include: (1) the amplitude at which rigidity constraints break corresponds to a structural “transition point” where the pattern of rigid clusters reorganizes, suggesting a mechanistic link between low‑frequency modes and large‑scale domain rearrangements; (2) mode‑specific motions were recovered that match known functional movements—e.g., the second normal mode of hemoglobin reproduces the classic quaternary‑state rotation of the α and β subunits, while the first mode of the transporter captures a pore‑opening motion; (3) the entire workflow runs on a standard desktop computer in 5–10 minutes per protein, representing a speed‑up of two to three orders of magnitude compared with a 100 ns MD simulation of comparable size.

The authors discuss several limitations. ENM inherently assumes harmonic, small‑amplitude fluctuations and therefore cannot capture high‑frequency or strongly anharmonic motions. Rigidity analysis treats constraints as static; thus, environmental effects such as pH changes or ion concentration that modulate hydrogen‑bond networks are not directly accounted for. Moreover, because FRODA follows a single normal‑mode direction, complex motions that involve coupling of multiple modes or non‑linear pathways would require additional sampling strategies.

Despite these caveats, the combined ENM‑FIRST‑FRODA approach provides a powerful, low‑cost tool for initial exploration of protein conformational space. It can be used to generate plausible large‑scale motions for downstream applications such as docking, mutational effect prediction, or as starting points for more detailed MD refinement. The study demonstrates that integrating normal‑mode directionality with a rigorous rigidity filter yields realistic amplitude limits and mechanistic insight into the motions that underlie protein function, all while keeping computational demands within the reach of everyday laboratory resources.
