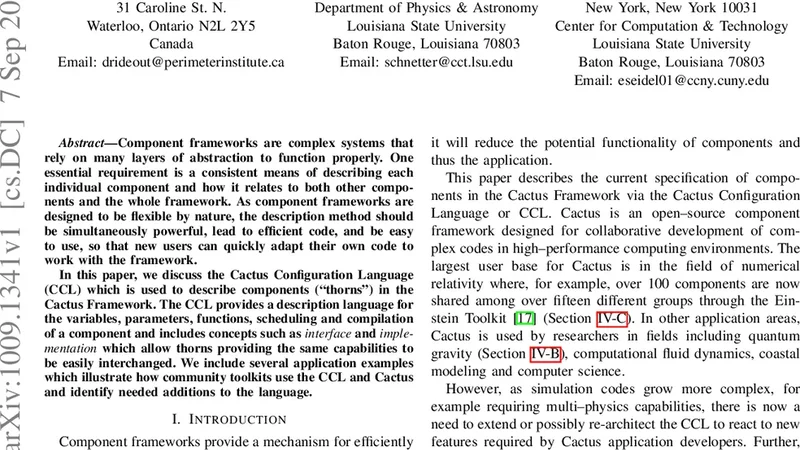

Component Specification in the Cactus Framework: The Cactus Configuration Language

Component frameworks are complex systems that rely on many layers of abstraction to function properly. One essential requirement is a consistent means of describing each individual component and how it relates to both other components and the whole framework. As component frameworks are designed to be flexible by nature, the description method should be simultaneously powerful, lead to efficient code, and be easy to use, so that new users can quickly adapt their own code to work with the framework. In this paper, we discuss the Cactus Configuration Language (CCL) which is used to describe components (“thorns’’) in the Cactus Framework. The CCL provides a description language for the variables, parameters, functions, scheduling and compilation of a component and includes concepts such as interface and implementation which allow thorns providing the same capabilities to be easily interchanged. We include several application examples which illustrate how community toolkits use the CCL and Cactus and identify needed additions to the language.

💡 Research Summary

The paper presents the Cactus Configuration Language (CCL), a domain‑specific declarative language designed to describe and manage components—called “thorns”—within the Cactus scientific computing framework. Cactus is built around a highly modular architecture where thousands of independently developed thorns can be combined to form complex multiphysics simulations. This flexibility, however, creates a pressing need for a uniform way to specify each thorn’s variables, parameters, functions, scheduling constraints, and compilation requirements. CCL addresses this need by providing a single, human‑readable file format that captures all of these aspects while supporting abstraction mechanisms such as interfaces and implementations.

Key features of CCL include:

1. Interface vs. Implementation – CCL separates the logical contract (interface) from the concrete code (implementation). Multiple thorns can implement the same interface, allowing the runtime to select or swap implementations without altering the surrounding code. This promotes code reuse and eases the integration of alternative algorithms.

2. Variable Section – Supports scalar, array, and grid‑function types, with explicit dimension, memory layout, I/O options, and default values. Grid functions are automatically partitioned for MPI‑based distributed memory, enabling seamless parallel execution.

3. Parameter Section – Declares user‑tunable parameters, including default values, allowed ranges, descriptive text, and mutability flags. The rich metadata enables automatic documentation generation and GUI‑based parameter editors, lowering the barrier for non‑expert users.

4. Function Section – Allows functions written in C, Fortran, or C++ to be declared, with typed input/output arguments and optional callbacks. Function pointers facilitate dynamic linking between thorns, and the explicit signatures help compilers perform cross‑language inlining and optimization.

5. Schedule Section – Provides a high‑level scheduling language where execution points are ordered using keywords such as after, before, sync, and conditional guards. This declarative approach lets the Cactus scheduler construct a correct execution graph at runtime, handling complex dependencies such as multi‑stage time integrators or adaptive mesh refinement cycles.

6. Compilation Section – Lists build‑time options, external library dependencies, and platform‑specific macros. From this information Cactus can generate portable Makefiles or CMake scripts, ensuring that the same thorn can be compiled on clusters, supercomputers, or GPU‑enabled nodes with minimal manual intervention.

The authors illustrate CCL’s utility through three concrete scientific applications. In a relativistic hydrodynamics code, they define separate thorns for the fluid solver, equation of state, and magnetic field handling; the magnetic field thorn implements a common interface, allowing users to switch between constrained‑transport and divergence‑cleaning methods simply by changing the implementation selection. In an electromagnetic wave propagation study, boundary conditions are expressed as CCL parameters, enabling runtime changes without recompilation. Finally, the paper discusses the Einstein Toolkit, a community‑driven collection of hundreds of thorns, showing how CCL underpins its automated documentation, testing, and build pipelines.

Despite its strengths, the paper acknowledges several limitations of the current CCL specification. It lacks native support for complex data structures such as trees or unstructured meshes, making it cumbersome to describe adaptive mesh refinement hierarchies. Dynamic loading and unloading of thorns at runtime are not supported, limiting on‑the‑fly algorithm swapping. Integration with graphical visualization tools is minimal, and there is no built‑in mechanism for automated parameter optimization, which is increasingly important for large‑scale simulations.

To address these gaps, the authors propose future extensions: adopting an XML/JSON interchange format for metadata exchange, developing a richer automatic documentation pipeline, and incorporating machine‑learning‑driven parameter tuning (e.g., Bayesian optimization) directly into the CCL workflow. They also suggest adding constructs for hierarchical data, runtime module registration, and tighter coupling with GUI frameworks.

In conclusion, CCL provides a powerful, consistent, and extensible means of describing Cactus thorns, dramatically improving developer productivity, code maintainability, and reproducibility of scientific simulations. By unifying component description, build configuration, and execution scheduling in a single declarative language, CCL enables rapid prototyping and reliable deployment across diverse high‑performance computing environments. The proposed enhancements promise to broaden CCL’s applicability further, positioning it as a potential de‑facto standard for component specification in large‑scale scientific software ecosystems.
