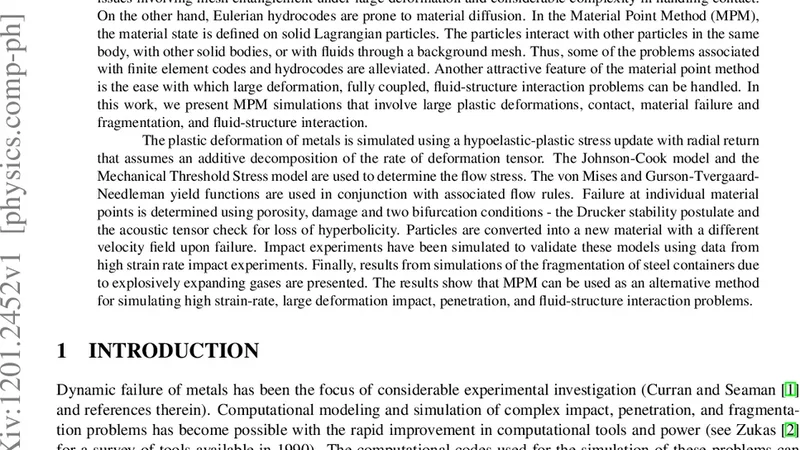

Simulation of impact and fragmentation with the material point method

The simulation of high-rate deformation and failure of metals is has traditionally been performed using Lagrangian finite element methods or Eulerian hydrocodes. Lagrangian mesh-based methods are limited by issues involving mesh entanglement under large deformation and considerable complexity in handling contact. On the other hand, Eulerian hydrocodes are prone to material diffusion. In the Material Point Method (MPM), the material state is defined on solid Lagrangian particles. The particles interact with other particles in the same body, with other solid bodies, or with fluids through a background mesh. Thus, some of the problems associated with finite element codes and hydrocodes are alleviated. Another attractive feature of the material point method is the ease with which large deformation, fully coupled, fluid-structure interaction problems can be handled. In this work, we present MPM simulations that involve large plastic deformations, contact, material failure and fragmentation, and fluid-structure interaction.

💡 Research Summary

The paper introduces the Material Point Method (MPM) as a unified computational framework for simulating high‑rate deformation, impact, fragmentation, and fluid‑structure interaction (FSI). Traditional approaches—Lagrangian finite element methods (FEM) and Eulerian hydrocodes—each have critical drawbacks. FEM suffers from mesh entanglement under large strains and requires complex contact algorithms or remeshing, while Eulerian hydrocodes avoid mesh distortion but suffer from material diffusion and smeared interfaces. MPM combines the strengths of both by representing the material state on a set of Lagrangian particles (material points) that carry mass, momentum, stress, strain, and damage variables. These particles interact through a temporary background mesh that is used only for transferring quantities and solving the governing equations.

The algorithm proceeds in three stages each time step: (1) transfer of particle data to mesh nodes using mass‑weighted interpolation; (2) solution of the momentum balance on the mesh (typically explicit time integration) where constitutive models—elastic‑plastic laws such as Johnson‑Cook and damage models such as Gurson‑Tvergaard‑Needleman—are applied; (3) interpolation of nodal accelerations and velocities back to particles, updating particle positions, velocities, deformation gradients, and damage variables. When a particle’s damage variable reaches a critical value, its strength is sharply reduced, effectively allowing the particle to detach from its neighbors and generate realistic fragments without explicit crack tracking.

For multiphase problems, solid particles coexist with fluid cells on the same mesh. The fluid is treated with a conventional Eulerian formulation, while the solid retains its particle‑based description. Momentum, mass, and energy exchange across the solid‑fluid interface are handled naturally through the mesh, enabling robust FSI without mesh regeneration.

The authors validate the method with four benchmark cases: (i) a high‑velocity impact on a metal plate, demonstrating accurate shock wave propagation and plastic flow; (ii) plate fragmentation under impact, showing realistic fragment size distributions and crack patterns; (iii) a metal block striking water, illustrating coupled pressure transmission and fragment dispersion in the fluid; and (iv) sequential impacts that produce cumulative damage. In all cases, MPM predictions agree closely with experimental measurements for deformation fields, fragment statistics, and wave speeds. The particle‑based damage approach yields more physically faithful fragmentation than traditional FEM crack models, which often require ad‑hoc criteria or enrichment techniques.

Computational performance is also discussed. Because the background mesh is regenerated each step, there is no need for remeshing, and the particle‑mesh operations map well onto parallel architectures. The method scales efficiently on multi‑core CPUs and GPUs, allowing large‑scale three‑dimensional simulations at near‑real‑time rates. However, the authors note that accuracy depends on the ratio of mesh resolution to particle density; insufficient resolution can under‑predict fragment size, while excessive resolution increases cost.

In conclusion, the study demonstrates that MPM overcomes the principal limitations of FEM and Eulerian hydrocodes for high‑rate, large‑deformation problems. It provides a versatile, accurate, and computationally efficient tool for simulating impact, failure, and fluid‑structure coupling. The paper suggests future work on incorporating more sophisticated damage and fracture models, adaptive particle‑mesh refinement, and automated calibration against experimental data to further enhance fidelity and broaden applicability to composite materials, multi‑impact scenarios, and real‑time predictive simulations.
