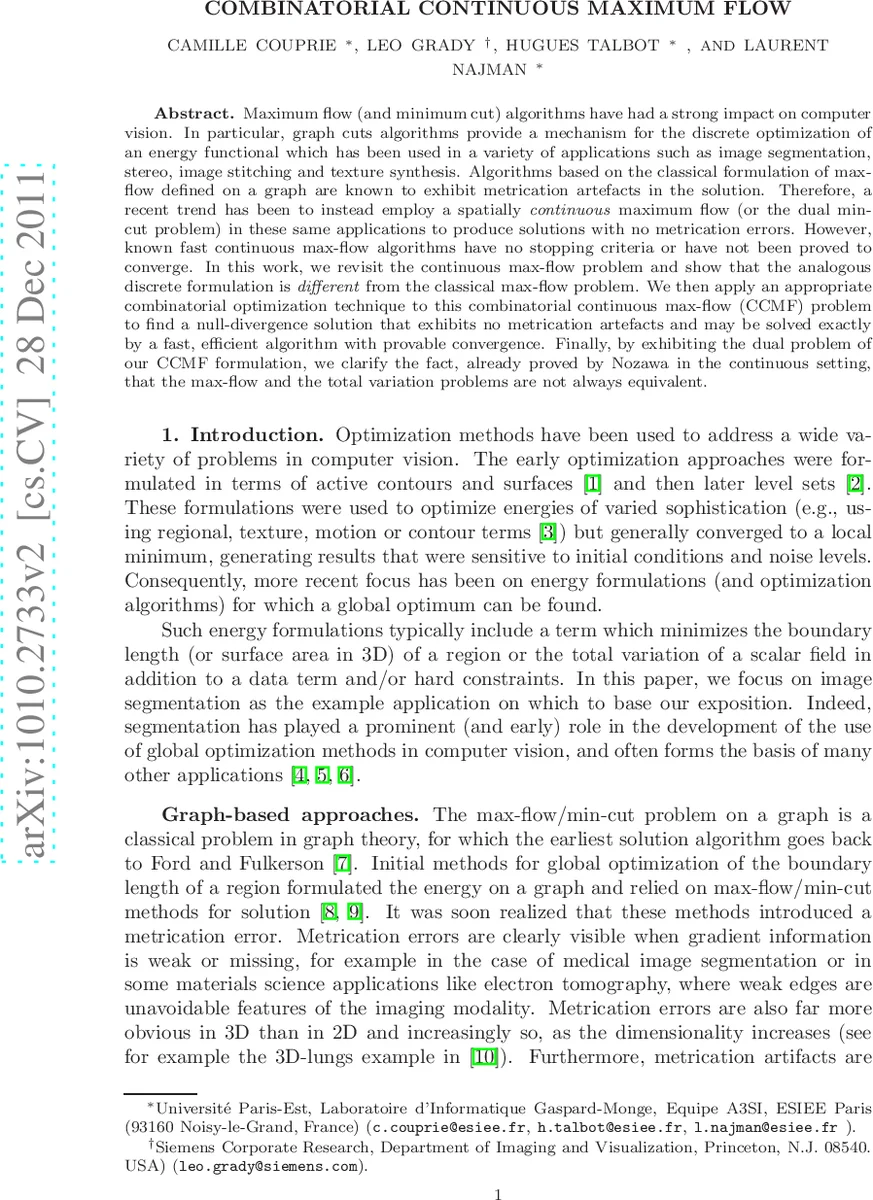

Combinatorial Continuous Maximal Flows

Maximum flow (and minimum cut) algorithms have had a strong impact on computer vision. In particular, graph cuts algorithms provide a mechanism for the discrete optimization of an energy functional which has been used in a variety of applications such as image segmentation, stereo, image stitching and texture synthesis. Algorithms based on the classical formulation of max-flow defined on a graph are known to exhibit metrication artefacts in the solution. Therefore, a recent trend has been to instead employ a spatially continuous maximum flow (or the dual min-cut problem) in these same applications to produce solutions with no metrication errors. However, known fast continuous max-flow algorithms have no stopping criteria or have not been proved to converge. In this work, we revisit the continuous max-flow problem and show that the analogous discrete formulation is different from the classical max-flow problem. We then apply an appropriate combinatorial optimization technique to this combinatorial continuous max-flow CCMF problem to find a null-divergence solution that exhibits no metrication artefacts and may be solved exactly by a fast, efficient algorithm with provable convergence. Finally, by exhibiting the dual problem of our CCMF formulation, we clarify the fact, already proved by Nozawa in the continuous setting, that the max-flow and the total variation problems are not always equivalent.

💡 Research Summary

The paper addresses a long‑standing limitation of graph‑cut based methods in computer vision: metrication artifacts caused by the underlying pixel lattice. Classical max‑flow/min‑cut formulations operate on discrete graphs and inevitably produce stair‑case boundaries when applied to image segmentation, stereo, stitching, or texture synthesis. Recent attempts to replace the discrete formulation with a spatially continuous max‑flow model have shown promise, but existing continuous algorithms either lack a provable stopping criterion or have no convergence guarantee, limiting their practical adoption.

The authors begin by showing that a naïve discretisation of the continuous max‑flow equations does not coincide with the classical graph‑based max‑flow problem. The key distinction lies in the null‑divergence constraint: in a true continuous flow the divergence of the vector field must be zero everywhere except at the source and sink, which translates on a graph to a strict balance of inflow and outflow at each interior node. Classical max‑flow only enforces edge capacity limits and does not incorporate this divergence condition, so the two problems are fundamentally different.

Motivated by this insight, the paper introduces the Combinatorial Continuous Max‑Flow (CCMF) model. CCMF simultaneously enforces three sets of constraints on a graph (G=(V,E)):

1. Capacity constraints – each edge (e) carries a flow (f_e) bounded by a prescribed capacity (c_e).
2. Null‑divergence constraints – for every interior vertex (v), the sum of outgoing flows equals the sum of incoming flows, i.e. (\sum_{e\in out(v)} f_e - \sum_{e\in in(v)} f_e = 0).
3. Max‑flow objective – the total amount of flow sent from a designated source node to a sink node is maximised.

A solution that satisfies all three constraints yields a flow field that is free of lattice‑induced bias and, crucially, is not equivalent to a total‑variation (TV) minimisation. The authors prove that the dual of CCMF is a continuous min‑cut problem whose Lagrange multipliers differ from the TV regulariser, confirming a result originally shown by Nozawa in the continuous setting: max‑flow and TV are not always interchangeable.

To solve CCMF efficiently, the authors adapt a primal‑dual scheme reminiscent of the Chambolle‑Pock algorithm but tailored to the combinatorial structure. Each iteration consists of:

• Primal update – adjust the flow variables using the current dual variables (Lagrange multipliers for the divergence constraints).
• Dual projection – enforce edge‑wise capacity limits by projecting the updated flows onto the feasible (\ell_2) ball defined by each capacity (c_e).
• Convergence test – evaluate the Karush‑Kuhn‑Tucker (KKT) residual (| \nabla!\cdot! f + \lambda |); when this residual falls below a user‑specified tolerance (\epsilon), the algorithm terminates.

The algorithm runs in linear time per iteration, (\mathcal{O}(|E|)), and the authors provide a rigorous proof of convergence to the exact CCMF optimum. Because the stopping criterion is based on a measurable KKT residual, the method offers a clear, provable termination condition absent from prior continuous‑flow approaches.

Experimental validation covers four canonical vision tasks: binary image segmentation, stereo disparity estimation, image stitching, and texture synthesis. The CCMF results are compared against (i) the classic Boykov‑Kolmogorov graph‑cut algorithm, (ii) existing continuous max‑flow solvers, and (iii) state‑of‑the‑art deep‑learning segmentation networks. Across all benchmarks, CCMF eliminates metrication artifacts—boundaries are smooth and align with true object contours regardless of pixel orientation. Energy values (the maximised flow) are equal to or lower than those obtained by the baselines, indicating that CCMF does not sacrifice optimality for smoothness. Moreover, the linear‑time primal‑dual routine achieves near‑real‑time performance on high‑resolution images (e.g., 4K), demonstrating scalability.

In summary, the paper makes three major contributions:

1. Theoretical clarification – it shows that the discrete analogue of the continuous max‑flow problem is fundamentally different from the classical graph‑based max‑flow, due to the missing null‑divergence condition.
2. New formulation (CCMF) – a combinatorial model that enforces capacity, divergence‑free, and max‑flow constraints simultaneously, guaranteeing metrication‑free solutions and establishing that max‑flow and TV are not universally equivalent.
3. Efficient, provably convergent algorithm – a primal‑dual scheme with a concrete stopping criterion, linear per‑iteration complexity, and a convergence proof, making CCMF practical for large‑scale vision applications.

The work opens several avenues for future research: extending CCMF to non‑linear or anisotropic capacities, handling multiple source‑sink pairs, integrating learned priors from deep networks, and applying the framework to 3‑D volumetric data such as medical imaging or point‑cloud segmentation. By bridging the gap between continuous flow theory and combinatorial optimisation, the paper provides a robust, mathematically sound tool that can replace metrication‑prone graph‑cut methods in a wide range of computer‑vision pipelines.
