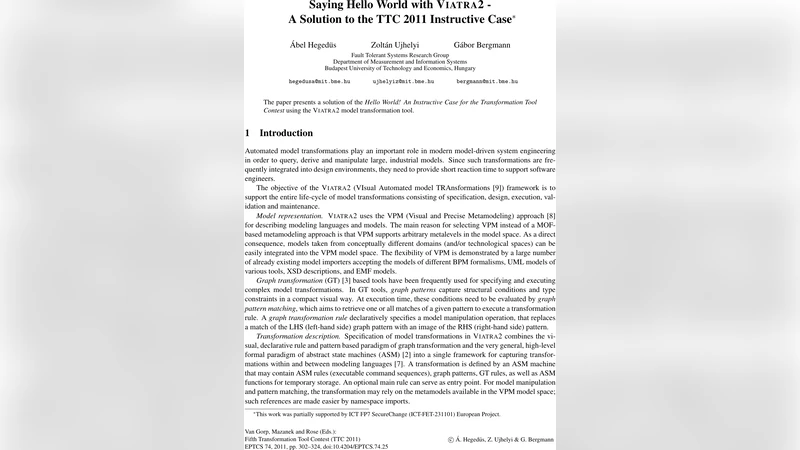

Saying Hello World with VIATRA2 - A Solution to the TTC 2011 Instructive Case

The paper presents a solution of the Hello World! An Instructive Case for the Transformation Tool Contest using the VIATRA2 model transformation tool.

💡 Research Summary

The paper presents a comprehensive solution to the “Hello World! An Instructive Case” from the Transformation Tool Contest (TTC) 2011, using the VIATRA2 model transformation framework. The authors first outline the architectural foundations of VIATRA2, emphasizing its use of the Visual and Precise Metamodeling (VPM) approach, which allows arbitrary metalevels and thus seamless integration of models from heterogeneous domains such as BPM, UML, XSD, and EMF. This flexibility is a key differentiator from traditional MOF‑based metamodeling.

VIATRA2’s transformation language, VTCL (VIATRA2 Textual Command Language), combines graph transformation (GT) and Abstract State Machine (ASM) concepts. GT rules are declarative, specifying left‑hand‑side (LHS) and right‑hand‑side (RHS) patterns, while ASM rules provide sequential command execution, temporary variables, and functions. The paper demonstrates each sub‑task of the case study with two variants: an ASM‑centric implementation and a GT‑centric implementation, thereby showcasing the trade‑offs between declarative pattern‑based manipulation and explicit procedural control.

The seven sub‑tasks are:

1. Hello World! – Creation of a simple model, a model‑to‑model mapping, and a model‑to‑text output. The ASM version builds objects step‑by‑step; the GT version captures the whole structure in a single pattern rewrite.

2. Count Matches with Certain Properties – Counting elements that satisfy a property. The ASM variant uses a forall construct to iterate over matches, while a forthcoming match‑counting feature (still experimental) promises a more concise expression. A library of reusable graph patterns is stored in a separate VTCL file and imported where needed, illustrating modularity.

3. Reverse Edges – Reversing the direction of all edges in a graph. The ASM variant exploits VIATRA2’s dynamic type modification to switch the role of src and trg relations without recreating elements. Two GT variants are provided: one that rewrites each edge, and a third that swaps the targets of the src and trg relations. Conditional constructs (if, try) make the solution tolerant of dangling edges.

4. Simple Migration – Transforming an input graph to conform to a different metamodel. Both a copy‑based approach (creating a new graph in the target metamodel) and an in‑place retyping approach (changing the type of existing elements) are implemented. The in‑place variant highlights VIATRA2’s ability to manipulate metamodels at runtime, a powerful feature for migration scenarios.

5. Delete Node with Specific Name and Its Incident Edges – Deleting a node identified by a name and all incident edges. Implementations are provided in both ASM and GT, with optional extensions for conditional deletion.

6. Insert Transitive Edges – Adding direct edges between nodes that are reachable via an intermediate node (2‑hop) and, in later variants, iteratively until the transitive closure is complete. Three versions are presented: (a) a single‑step 2‑hop insertion, (b) a looped version that repeats until no more edges can be added, and (c) a single‑step insertion using a recursive graph pattern that captures full transitive reachability. The recursive pattern demonstrates VIATRA2’s support for recursion, though the current incremental matcher cannot handle cycles correctly, so the local‑search matcher is used for this case.

The authors discuss the two pattern‑matching strategies available in VIATRA2: local‑search (LS) and incremental (INC). LS consumes more memory but is robust for all cases; INC offers faster execution and lower memory usage but has limitations with cyclic graphs and recursive patterns. Most tasks use INC, while the transitive‑closure task falls back to LS.

Key insights highlighted include:

• Reusability – Common patterns are externalized and imported, enabling a library‑like reuse across multiple transformations.
• Dynamic Typing – The ability to change the type of model elements at runtime simplifies in‑place migrations and edge‑reversal tasks.
• Recursive Matching & Match Counting – Although still experimental, these features allow concise expression of complex graph analyses such as transitive closure and property‑based counting.
• Multiple Implementation Variants – Providing both ASM and GT versions for each task serves as an instructional guide, illustrating when to favor declarative pattern rewriting versus explicit procedural steps.

The paper also acknowledges limitations: VIATRA2 does not natively handle EMF models, requiring import/export steps; VTCL’s syntax can be verbose, potentially obscuring the simplicity of the underlying transformation logic. Nonetheless, the authors argue that the “Hello World!” case, being intentionally simple, serves as an excellent benchmark for comparing transformation tools and showcases VIATRA2’s flexibility, extensibility, and expressive power.

In conclusion, the work delivers a thorough, multi‑variant solution to the TTC 2011 instructive case, demonstrating VIATRA2’s capabilities in model construction, querying, manipulation, migration, and advanced pattern matching, while also providing practical insights into performance trade‑offs and tool integration challenges.
