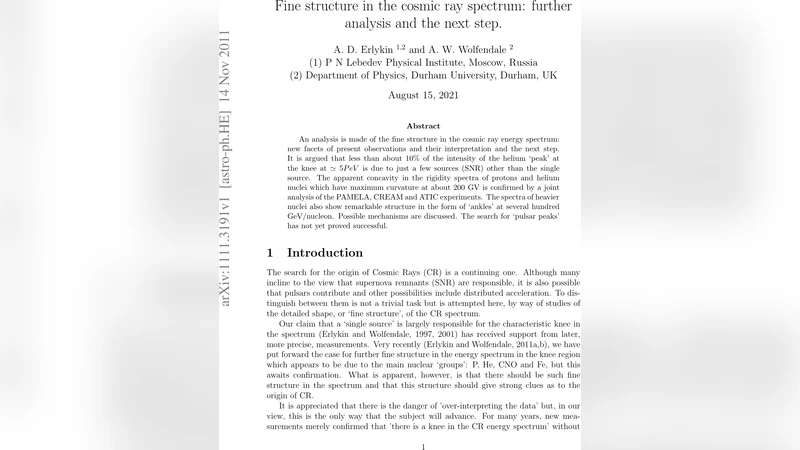

Fine structure in the cosmic ray spectrum: Further analysis and the next step

An analysis is made of the fine structure in the cosmic ray energy spectrum: new facets of present observations and their interpretation and the next step. It is argued that less than about 10% of the intensity of the helium peak' at the knee at $\simeq 5PeV$ is due to just a few sources (SNR) other than the single source. The apparent concavity in the rigidity spectra of protons and helium nuclei which have maximum curvature at about 200 GV is confirmed by a joint analysis of the PAMELA, CREAM and ATIC experiments. The spectra of heavier nuclei also show remarkable structure in the form of ankles’ at several hundred GeV/nucleon. Possible mechanisms are discussed. The search for `pulsar peaks’ has not yet proved successful.

💡 Research Summary

The paper presents a comprehensive re‑examination of fine structure in the cosmic‑ray (CR) energy spectrum, focusing on the well‑known “knee” around 5 PeV and the associated helium peak, while also addressing subtler features at lower rigidities and in heavier nuclei. The authors begin by revisiting the “single‑source” hypothesis, which attributes the dominant contribution to the knee to a nearby, relatively recent super‑nova remnant (SNR). Using a Monte‑Carlo framework that incorporates realistic distributions of SNR parameters (explosion energy, ambient density, magnetic field compression, etc.), they evaluate the relative strength of the strongest source (S1) and the second‑strongest source (S2). Their statistical analysis of 24 candidate nearby SNRs shows that the ratio S2/S1 has a mean of about 7 % and that the probability of S2 contributing more than 20 % of the peak intensity is only ~8 %. Consequently, the helium peak at the knee is dominated (>90 %) by a single SNR, with only a modest (~10 %) admixture from other recent remnants.

Next, the authors turn to high‑precision direct measurements from PAMELA, CREAM and ATIC. By plotting the rigidity spectra as R³·I(R) (where I(R) is the intensity), they reveal a clear concave curvature with a minimum near 220 GV for protons and helium. This deviation from the smooth power‑law expected in conventional Galactic diffusion models indicates that the summed contribution of many SNRs, each with slightly different maximum rigidities, produces a measurable “bump‑and‑dip” pattern. The curvature is reproduced in their SNR‑population simulations, confirming that the observed feature can be explained without invoking exotic physics.

The paper also documents fine structure in the spectra of heavier nuclei (CNO, Fe). In the 100–300 GeV/nucleon range, the authors identify “ankles” – modest upward bends – that appear consistently across several air‑shower experiments (e.g., TUNKA‑133, GAMMA). These features likely reflect differences in acceleration efficiency, propagation losses, and source composition among the various nuclear groups, and they provide additional constraints on models of Galactic CR origin.

A dedicated search for “pulsar peaks” – narrow spikes that would arise if individual pulsars injected CRs at a characteristic energy – yields null results. Using the PAMELA data in the 10–300 GeV band, the authors set an upper limit of ~3 % on any such spike’s amplitude (relative to the smooth background) and conclude that pulsars can contribute at most ~10 % of the total CR intensity below the knee. The lack of detectable spikes suggests that either pulsar contributions are broadly distributed in energy or that their injection spectra are softer than the simple delta‑function model assumed.

Finally, the authors outline future directions: (1) extending precise direct measurements over a wider energy range (10 GeV to >10 PeV) to map the evolution of curvature and ankle features; (2) developing integrated simulations that combine the stochastic occurrence of SNRs and pulsars with realistic Galactic magnetic‑field models; (3) improving nuclear interaction and energy‑loss calculations for heavy nuclei to better interpret ankle structures. By addressing these points, the community can move beyond the single‑source paradigm toward a more nuanced, multi‑source picture of Galactic cosmic‑ray origin and propagation.
