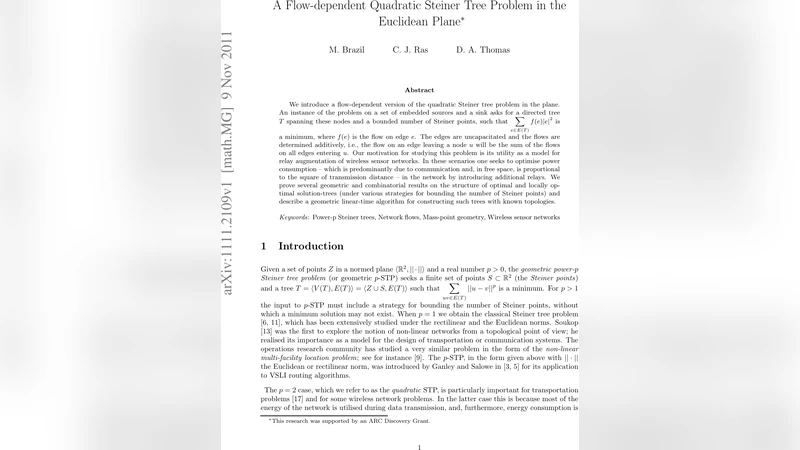

A Flow-dependent Quadratic Steiner Tree Problem in the Euclidean Plane

We introduce a flow-dependent version of the quadratic Steiner tree problem in the plane. An instance of the problem on a set of embedded sources and a sink asks for a directed tree $T$ spanning these nodes and a bounded number of Steiner points, such that $\displaystyle\sum_{e \in E(T)}f(e)|e|^2$ is a minimum, where $f(e)$ is the flow on edge $e$. The edges are uncapacitated and the flows are determined additively, i.e., the flow on an edge leaving a node $u$ will be the sum of the flows on all edges entering $u$. Our motivation for studying this problem is its utility as a model for relay augmentation of wireless sensor networks. In these scenarios one seeks to optimise power consumption – which is predominantly due to communication and, in free space, is proportional to the square of transmission distance – in the network by introducing additional relays. We prove several geometric and combinatorial results on the structure of optimal and locally optimal solution-trees (under various strategies for bounding the number of Steiner points) and describe a geometric linear-time algorithm for constructing such trees with known topologies.

💡 Research Summary

The paper introduces a flow‑dependent quadratic Steiner tree problem (FQSTP) that models power consumption in wireless sensor networks more realistically than classic geometric Steiner tree formulations. In the Euclidean plane a set of n sensor nodes (sources) each generate unit data flow, and a single sink collects all flow. The network is represented by a directed tree T whose edges are weighted by the product of the Euclidean squared length and the data flow traversing the edge, i.e., the total cost is

 L(T) = Σ_{e∈E(T)} f(e)·|e|².

Flows are additive: at every node the outgoing flow equals the sum of incoming flows plus the node’s own supply (or demand at the sink). This additive flow model reflects the fact that data aggregation is not performed at intermediate nodes, which is typical for many sensor‑network scenarios.

Because the cost function is homogeneous of degree two in distances, adding arbitrarily many degree‑2 Steiner points (relays) along an edge can drive the cost toward zero. Consequently, the existence of an optimal solution requires a bound on the number of Steiner points. The authors discuss three bounding strategies:

1. Degree bound (φ‑bounded) – every Steiner point must have degree at least φ ≥ 3. This implicitly limits the number of Steiner points to at most n − 1.

2. Explicit cardinality bound (k‑bounded) – a fixed integer k is prescribed as the maximum number of Steiner points. Under this restriction an optimal solution will indeed use exactly k relays, because any additional relay strictly reduces the cost.

3. Node‑weighted model – each Steiner point incurs a fixed cost c > 0, leading to the objective L_c(T) = Σ f(e)·|e|² + c·|S|. This captures the monetary or deployment cost of relays.

The core geometric contribution is a set of necessary and sufficient conditions for a tree to be locally optimal with respect to a given topology. By treating each node’s incoming flow as a mass, the authors prove that any Steiner point s must lie at the weighted centroid (center of mass) of its incident nodes: the centroid of its in‑neighbors weighted by their incoming flows together with its unique out‑neighbor weighted by the total outgoing flow. Formally, if s has in‑neighbors z₁,…,z_d with flows f₁,…,f_d and out‑neighbor z′ with flow f_out = Σ f_i, then

 s = ( Σ_{i=1}^d f_i·z_i + f_out·z′ ) / ( Σ_{i=1}^d f_i + f_out ).

This result follows from a simple first‑order optimality condition on the strictly convex cost function and can be interpreted via classical mass‑point geometry: merging weighted points along a line segment in the ratio of their masses yields the centroid. The paper shows that this centroid condition is both necessary and sufficient for local optimality (Theorem 3). Consequently, for any fixed topology the optimal positions of all Steiner points are uniquely determined by solving a linear system whose coefficient matrix is diagonally dominant because each diagonal entry equals twice the total flow incident to the corresponding Steiner point.

Leveraging the centroid property, the authors design a linear‑time geometric algorithm that constructs a locally minimal tree for any prescribed topology. The algorithm proceeds recursively: starting from the leaves, it merges pairs of points (or sub‑trees) by placing a new Steiner point at the weighted centroid of the two constituent masses, where the weights are the flows on the incident edges. This “mass‑point merging” is performed in a bottom‑up fashion, requiring only O(1) work per node and thus O(n) total time. The method avoids solving the linear system explicitly and provides a constructive geometric procedure that directly yields the optimal Steiner point locations.

The paper also discusses how this algorithm can serve as a subroutine in exact or heuristic solvers for the unrestricted FQSTP. For example, in branch‑and‑bound frameworks or in pruning strategies similar to those used by the GEOSTEINER software for Euclidean Steiner trees, the linear‑time construction can quickly evaluate the cost of a candidate topology and discard those that cannot be optimal.

In summary, the authors formalize a flow‑dependent quadratic Steiner tree model that captures the dominant power‑consumption term in free‑space wireless communication, establish rigorous geometric characterizations of optimal relay placement, and provide an efficient O(n) algorithm for constructing locally optimal trees given a topology. These contributions lay a solid theoretical foundation for future work on exact algorithms, approximation schemes, and practical network design tools for energy‑efficient sensor deployments.
