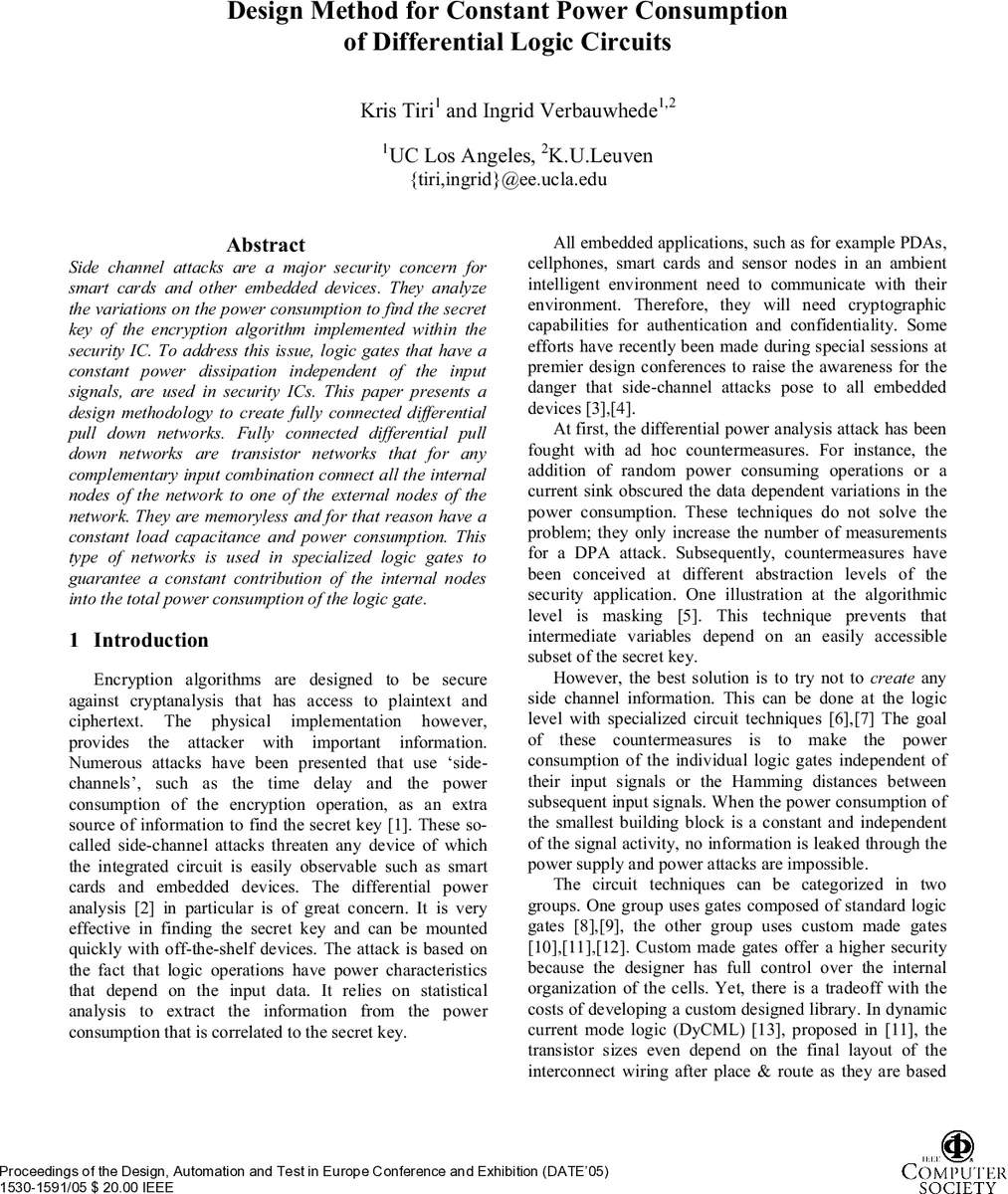

Design Method for Constant Power Consumption of Differential Logic Circuits

Side channel attacks are a major security concern for smart cards and other embedded devices. They analyze the variations on the power consumption to find the secret key of the encryption algorithm implemented within the security IC. To address this issue, logic gates that have a constant power dissipation independent of the input signals, are used in security ICs. This paper presents a design methodology to create fully connected differential pull down networks. Fully connected differential pull down networks are transistor networks that for any complementary input combination connect all the internal nodes of the network to one of the external nodes of the network. They are memoryless and for that reason have a constant load capacitance and power consumption. This type of networks is used in specialized logic gates to guarantee a constant contribution of the internal nodes into the total power consumption of the logic gate.

💡 Research Summary

The paper addresses the growing threat of side‑channel attacks, especially Differential Power Analysis (DPA), on smart cards and other embedded devices. These attacks exploit the fact that conventional logic gates consume a data‑dependent amount of power, leaking information about secret keys. To eliminate this leakage, the authors focus on designing logic gates whose power consumption is constant and independent of the input values.

The core concept introduced is the Fully Connected Differential Pull‑Down Network (FC‑DPDN). In a differential dynamic logic family, each signal is represented by a true and a complementary line, and the circuit operates in alternating pre‑charge and evaluation phases. Constant‑power operation requires two conditions: (1) exactly one charging event per clock cycle, and (2) a fixed capacitance being charged each time. While dynamic differential logic already guarantees a single charging event, the second condition is violated in ordinary differential pull‑down networks because internal nodes may become floating for certain input combinations. Consequently, the parasitic capacitances of those nodes are not discharged every cycle, leading to variable power consumption (the “memory effect”).

FC‑DPDN solves this by ensuring that, for any complementary input pair, every internal node of the pull‑down network is connected to either the true output node X or the false output node Y. Thus, all internal nodes undergo a discharge‑charge cycle each evaluation‑precharge pair, guaranteeing a constant amount of charge moved per cycle and, consequently, constant power consumption.

The paper provides two systematic design methodologies to obtain an FC‑DPDN for an arbitrary Boolean function.

1. From a Boolean expression – The target function f is first expressed in Boolean form together with its complement f̅. The expression is decomposed into two sub‑expressions x and y that combine via AND or OR to form f. The dual expressions are then derived (by complementing x and y) to obtain the corresponding expression for f̅. The Boolean operators are mapped to transistor structures (AND → series, OR → parallel). The key transformation replaces a parallel connection by a shared sub‑network so that the internal node created by the series connection is also part of the parallel branch, guaranteeing connectivity. This process is applied recursively until each leaf corresponds to a single literal (a single transistor).

2. From an existing DPDN – Starting with a conventional (non‑fully‑connected) differential pull‑down network, the method identifies series chains, opens the corresponding dual parallel networks at the appropriate bottom nodes, and reconnects the opened branches to the internal nodes of the series chains. Finally, the network is “unrolled” to obtain the fully connected topology. The transistor count remains unchanged, although the evaluation depth (maximum series length) may increase.

Both methods produce a network where every internal node is driven by both the true and the complementary version of an input signal, ensuring that no node can remain floating regardless of the input pattern.

To further improve timing uniformity, the authors propose an enhanced FC‑DPDN. Different discharge paths may have different numbers of series transistors, causing variable resistance and early evaluation effects. By inserting pass‑gates (parallel pairs of transistors driven by a signal and its complement) on paths that lack a controlling transistor, the evaluation depth becomes identical for all paths. This equalizes the effective resistance, yields a constant propagation delay, and eliminates premature evaluation before all inputs have settled. The trade‑off is increased silicon area and total load capacitance due to the dummy transistors.

The paper validates the approach with SPICE simulations of an AND‑NAND gate implemented in Sense‑Amplifier‑Based Logic (SABL). Two distinct input combinations are simulated; the output waveforms and supply current are virtually identical, confirming that the internal node capacitances are discharged and recharged uniformly. A more complex OAI22 gate is also synthesized using both design procedures, demonstrating that the methodology scales to larger functions.

In the broader context, the authors compare FC‑DPDN‑based gates with other countermeasure families: ad‑hoc random power insertion, algorithmic masking, and custom logic families such as DyCML and earlier SABL variants. While custom gates provide higher security, they often suffer from large transistor counts, limited library support, or asynchronous timing. FC‑DPDN offers a systematic, library‑friendly approach that can be integrated into standard cell design flows, providing constant‑power operation without excessive overhead.

In conclusion, the paper delivers a practical, theoretically grounded design framework for constructing fully connected differential pull‑down networks that guarantee constant power dissipation per clock cycle. By eliminating the memory effect and ensuring uniform evaluation depth, the proposed gates significantly raise the bar against DPA attacks while maintaining reasonable area and performance trade‑offs, paving the way for more secure hardware implementations in smart cards, mobile devices, and IoT nodes.
