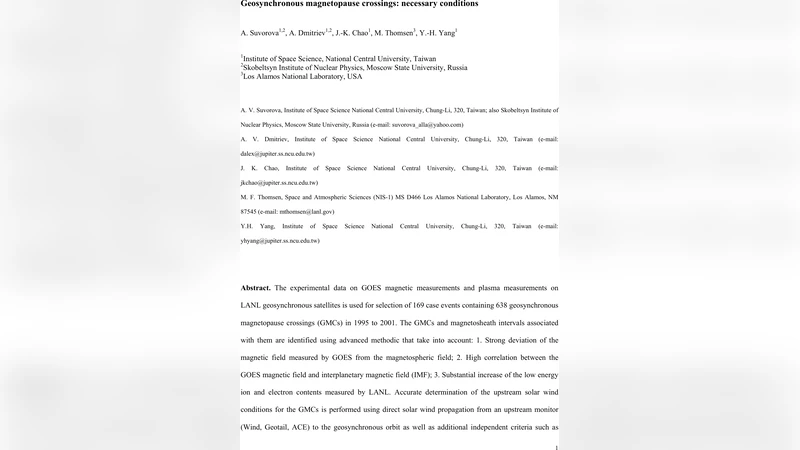

Geosynchronous magnetopause crossings: necessary conditions

The experimental data on GOES magnetic measurements and plasma measurements on LANL geosynchronous satellites is used for selection of 169 case events containing 638 geosynchronous magnetopause crossings (GMCs) in 1995 to 2001. We study the necessary conditions for the geosynchronous magnetopause crossings using scatter plot of the GMCs in the coordinate space of Psw versus Bz. In such representation the upstream solar wind conditions demonstrate sharp envelope boundary under which no GMCs are occurred. The boundary has two strait horizontal branches where Bz does not influence on the magnetopause location. The first branch is located in the range of Psw=21 nPa for large positive Bz and is associated with an asymptotic regime of the pressure balance. The second branch asymptotically approaches to the range of Psw=4.8 nPa under very strong negative Bz and it is associated with a regime of the Bz influence saturation. We suggest that the saturation is caused by relatively high contribution of the magnetosphere thermal pressure into the pressure balance on the magnetopause. The intermediate region of the boundary for the moderate negative and small positive IMF Bz can be well approximated by a hyperbolic tangent function. We interpret the envelope boundary as a range of necessary upstream solar wind conditions required for GMC in the point on the magnetopause located mostly close to the Earth (“perigee” point). We obtain that the dipole tilt angle and dawn-dusk asymmetry influence on the “perigee” point location. We find that the aGSM latitude of this point depends linearly on the dipole tilt angle with the slope about -0.5. The aGSM longitude of the “perigee” point decreases with IMF Bz with a rate of about 2 angular minutes per 1 nT. An empirical model predicting the magnetopause crossing of the geosynchronous orbit in the “perigee” point is proposed.

💡 Research Summary

The paper presents a comprehensive observational study of geosynchronous magnetopause crossings (GMCs) using magnetic field data from the GOES series and low‑energy plasma measurements from LANL geosynchronous satellites over the period 1995–2001. By applying a three‑criterion selection method—(1) a strong deviation of the GOES magnetic field from the expected magnetospheric field, (2) a high correlation between GOES magnetic measurements and the interplanetary magnetic field (IMF), and (3) a substantial increase in low‑energy ion and electron fluxes measured by LANL—the authors identified 638 GMC events contained within 169 distinct case intervals.

Accurate upstream solar‑wind conditions for each event were obtained by propagating measurements from upstream monitors (Wind, Geotail, ACE) to the geosynchronous orbit, incorporating time‑delay corrections, Dst (SYM) index variations, and additional independent criteria such as the correlation of GOES magnetic data with IMF and the correlation of magnetosheath plasma density with upstream solar‑wind density. This careful reconstruction allowed the authors to place each GMC in the two‑dimensional space defined by solar‑wind total pressure (Psw) and the IMF Bz component.

When plotted in the Psw–Bz plane, the GMCs are bounded by a clear envelope: below this envelope no crossings are observed. The envelope consists of three distinct parts. The first is a horizontal branch at Psw ≈ 21 nPa for strongly positive Bz (Bz > +10 nT). In this regime the magnetopause location becomes insensitive to Bz because the external dynamic pressure dominates the pressure balance. The second is another horizontal branch at Psw ≈ 4.8 nPa for strongly negative Bz (Bz < ‑30 nT). Here the magnetopause is strongly compressed by southward IMF, but further increases in the magnitude of Bz produce diminishing returns—a “Bz‑saturation” effect. The authors attribute this saturation to the increasing contribution of the magnetospheric thermal pressure, which limits additional compression.

Between these two asymptotic branches (‑10 nT ≲ Bz ≲ +10 nT) the envelope follows a smooth hyperbolic‑tangent curve. This functional form captures the non‑linear transition from the pressure‑balance regime to the saturation regime and provides a more realistic description than the linear or exponential dependencies used in many earlier magnetopause (MP) models.

The authors further argue that the crossings most often occur near the point on the magnetopause that is closest to Earth—the so‑called “perigee” point. They examine how the location of this point varies with two additional parameters: the dipole tilt angle (the angle between Earth’s magnetic dipole axis and the solar‑wind flow direction) and the IMF Bz component. The perigee latitude in aberrated GSM (aGSM) coordinates shows a linear dependence on the dipole tilt angle with a slope of approximately –0.5 deg per degree of tilt, indicating that a larger positive tilt shifts the crossing point toward the southern hemisphere. The perigee longitude also varies systematically: it moves eastward (decreases in aGSM longitude) at a rate of roughly 2 angular minutes per 1 nT of southward Bz. These relationships quantify the dawn‑dusk asymmetry and seasonal effects that have been largely neglected in previous empirical MP models.

Based on these findings, the authors construct an empirical prediction model for GMCs at the perigee point. The model takes as inputs the upstream solar‑wind total pressure, the IMF Bz component, and the dipole tilt angle. It first determines the minimum pressure required for a crossing using the hyperbolic‑tangent envelope, then adjusts the predicted latitude and longitude of the perigee point according to the linear tilt‑angle and Bz‑longitude relationships. Validation against the full dataset shows that the new model reduces the false‑alarm rate (FAR) relative to widely used MP models such as those of Shue et al., Petrinec & Russell, and the earlier KS98 model, while maintaining a comparable probability of correct prediction (PCP).

The paper also provides a critical review of existing MP models, highlighting how differences in data quality (time resolution, homogeneity), choice of upstream monitor, propagation delay handling, and inclusion of geosynchronous crossing data lead to substantial discrepancies—especially under extreme solar‑wind conditions. The authors argue that many models either overestimate or underestimate the solar‑wind conditions required for a geosynchronous crossing because they neglect the perigee‑point geometry, the Bz‑saturation effect, or the dipole‑tilt‑induced latitude shift.

In summary, the study makes three major contributions: (1) it defines a robust “necessary‑condition” envelope in the Psw–Bz space that delineates the minimum solar‑wind conditions for a geosynchronous magnetopause crossing; (2) it provides a physical interpretation of the Bz‑saturation phenomenon as a consequence of magnetospheric thermal pressure; and (3) it introduces a three‑dimensional empirical model that incorporates tilt‑angle‑dependent latitude and Bz‑dependent longitude shifts, thereby improving prediction accuracy for extreme space‑weather events. These results have direct implications for space‑weather forecasting, satellite operation planning, and the broader understanding of magnetosphere–solar‑wind coupling under high‑dynamic‑pressure and strong southward IMF conditions.
