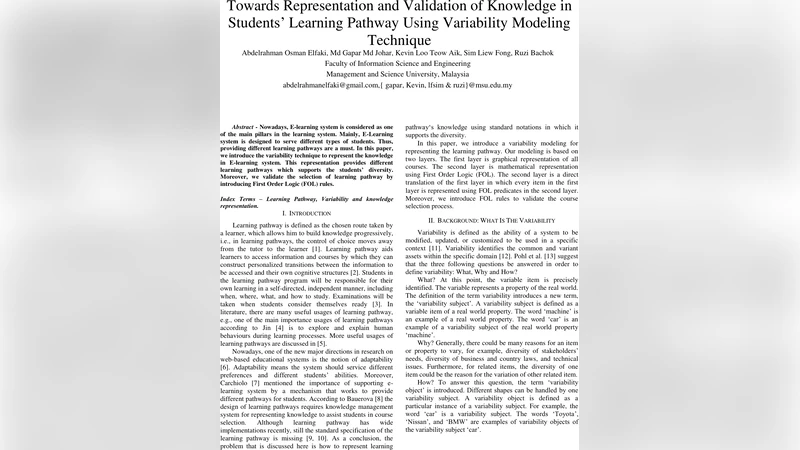

Towards Representation and Validation of Knowledge in Students Learning Pathway Using Variability Modeling Technique

Nowadays, E-learning system is considered as one of the main pillars in the learning system. Mainly, E-Learning system is designed to serve different types of students. Thus, providing different learning pathways are a must. In this paper, we introduce the variability technique to represent the knowledge in E-learning system. This representation provides different learning pathways which supports the students’ diversity. Moreover, we validate the selection of learning pathway by introducing First Order Logic (FOL) rules. Keywords Learning Pathway ; Variability and knowledge representation ; IJCSI

💡 Research Summary

The paper addresses the challenge of providing personalized learning pathways in e‑learning environments by introducing a variability‑modeling approach combined with formal validation using First‑Order Logic (FOL). Recognizing that modern e‑learning systems must accommodate diverse student profiles, the authors argue that existing pathway specifications lack a standardized, flexible representation. To fill this gap, they propose a two‑layer model.

The upper layer is a graphical representation that merges concepts from Feature Models (FM) and Orthogonal Variability Models (OVM). In this visual diagram, “fields” represent high‑level subject areas (e.g., Programming, Artificial Intelligence) and “options” are concrete courses or modules within those fields (e.g., Java, Neural Networks). Cardinality constraints (minimum and maximum number of selections) and a “common” attribute (mandatory inclusion) are attached to each element. The diagram also shows dependency relationships such as “requires” and “excludes” between fields and options, making the structure intuitive for educators and designers.

The lower layer translates every graphical element into a set of FOL predicates, providing a formal semantics for the pathway. Basic predicates include:

• type(Id, field) or type(Id, option) to declare the nature of an element,
• choiceof(Field, Option) to link options to their parent field,
• max(Field, n) and min(Field, n) for cardinality,
• common(Id, yes/no) to indicate mandatory items.

Dependency constraints are captured by six predicates: requires_option_option, excludes_option_option, requires_option_field, excludes_option_field, requires_field_field, and excludes_field_field. Dynamic predicates select(Id), notselect(Id), and no_selected(Id, n) model the actual selections made by a student.

A set of twelve validation rules, expressed in FOL, governs the consistency of a student’s pathway. Rules 1‑6 enforce the require/exclude relationships; Rules 7‑9 ensure that selecting an option implicitly selects its parent field and vice‑versa; Rules 10‑11 guarantee that all “common” elements are automatically selected; Rules 12‑13 enforce cardinality limits, preventing over‑ or under‑selection. Together, these rules enable automated checking of a student’s chosen pathway against the predefined constraints.

The authors illustrate the approach with a concrete example from a Computer Science curriculum, showing how fields such as “Computer Graphics” and options like “2D Graphics”, “3D Graphics”, and “Image Processing” are modeled in both layers. They also present tables that map the graphical elements to their corresponding FOL predicates.

Strengths of the work include:

1. A clear bridge between an intuitive visual model and a rigorous logical specification, facilitating both human understanding and machine verification.
2. The use of established FM and OVM notations, which leverages existing research on variability while extending it to the educational domain.
3. Formal validation rules that can be implemented in automated reasoning engines, potentially enabling real‑time feedback during course selection.

However, the paper has notable limitations. No empirical evaluation or prototype implementation is provided, so the practical scalability and performance of the validation engine remain untested. The complexity of the predicate set could grow rapidly for large curricula, possibly leading to increased computational overhead. Moreover, the study does not discuss integration with existing Learning Management Systems (LMS) or how the model would handle dynamic changes such as course additions or prerequisite updates.

Future research directions suggested by the authors include building a functional prototype, conducting user studies with students and educators, automating the extraction of dependency rules from historical enrollment data, and exploring optimization techniques to keep the logical model tractable for extensive course catalogs.

In summary, the paper contributes a novel two‑layer framework that combines variability modeling with First‑Order Logic validation to represent and verify personalized learning pathways. While the theoretical foundation is solid and the formalization thorough, further empirical work is needed to demonstrate its applicability in real‑world e‑learning platforms.
