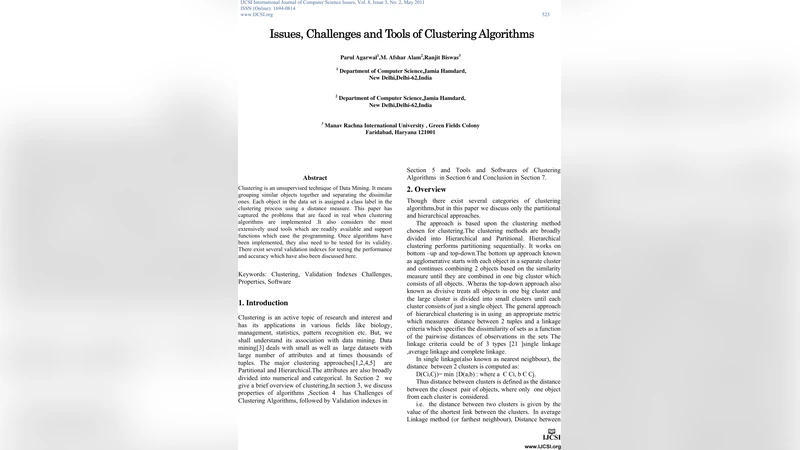

Issues,Challenges and Tools of Clustering Algorithms

Clustering is an unsupervised technique of Data Mining. It means grouping similar objects together and separating the dissimilar ones. Each object in the data set is assigned a class label in the clustering process using a distance measure. This paper has captured the problems that are faced in real when clustering algorithms are implemented .It also considers the most extensively used tools which are readily available and support functions which ease the programming. Once algorithms have been implemented, they also need to be tested for its validity. There exist several validation indexes for testing the performance and accuracy which have also been discussed here.

💡 Research Summary

The paper “Issues, Challenges and Tools of Clustering Algorithms” provides a broad‑level survey of practical problems that arise when implementing clustering techniques, discusses the most widely used validation measures, and reviews a variety of software tools that support clustering tasks.
The authors begin by classifying clustering methods into two major families: partitional (e.g., k‑means, k‑medoids) and hierarchical (agglomerative and divisive). For hierarchical clustering they describe three linkage criteria—single, average, and complete—and give the corresponding distance formulas. They explain how a dendrogram visualizes the successive merging or splitting of clusters and how cutting the dendrogram at a chosen height yields a desired number of clusters. Partitional methods are presented as algorithms that partition the data into a pre‑specified number K of disjoint groups by optimizing an objective function such as the sum of squared errors.
Next, the paper enumerates six key properties that any clustering algorithm must consider: (1) the type of attributes it can handle (numeric, nominal, ordinal, binary), (2) computational complexity in time and space, (3) the size of the dataset, (4) the ability to discover clusters of irregular shape, (5) sensitivity to the order of records in the input, and (6) outlier detection capability. The authors stress that outliers, if not identified and removed, can severely degrade cluster quality.
The “Challenges” section identifies six practical difficulties. First, selecting an appropriate distance measure is straightforward for numeric attributes (Euclidean, Manhattan, Chebyshev, all special cases of Minkowski) but remains ambiguous for categorical data. Second, determining the number of clusters K when no ground‑truth labels exist is non‑trivial; the authors mention statistical heuristics such as the Pseudo‑F statistic, Cubic Clustering Criterion (CCC), and overall R‑squared, but acknowledge that none guarantees a correct answer. Third, many real‑world datasets lack class labels, making post‑hoc interpretation of clusters difficult. Fourth, data quality issues—missing values, noise, high dimensional sparsity—can obscure any underlying cluster structure; the paper cites methods for handling missing values (attribute removal, mean/mode imputation, specialized clustering algorithms). Fifth, mixed‑type datasets (numeric plus categorical) require preprocessing (e.g., one‑hot encoding) or hybrid distance functions, adding implementation complexity. Sixth, the choice of initial centroids in partitional algorithms strongly influences convergence; random initialization may lead to empty clusters, while heuristic approaches such as farthest‑point selection can improve stability.
In the validation section the authors review a suite of cluster validity indices. The Silhouette coefficient measures, for each point, the difference between its average intra‑cluster distance a(i) and the smallest average distance to any other cluster b(i), normalized by max(a(i),b(i)). Values near 1 indicate well‑separated clusters. The C‑index compares the sum of intra‑cluster distances S with the minimum and maximum possible sums (Smin, Smax); lower values denote better clustering. The Jaccard and Rand indices evaluate pairwise agreement between a clustering result and a reference labeling, producing scores between 0 and 1. Additional indices such as Dunn, Davies‑Bouldin, and Goodmann‑Kruskal are mentioned as alternatives that capture different aspects of compactness and separation. The authors argue that employing multiple indices together yields a more robust assessment than relying on a single metric.
The final section surveys a range of software tools that facilitate clustering. Weka (Java‑based, GUI and API) offers preprocessing filters, a collection of clustering algorithms, and visualization capabilities. MATLAB’s Statistics Toolbox provides extensive statistical functions and interactive GUIs, while Octave serves as a free MATLAB‑compatible alternative. Specialized packages include SPAETH2 (Fortran 90 routines), a C++ implementation of k‑means by Tapas Kamingo, XLMiner (commercial add‑on for Excel), DTREG (commercial predictive modeling suite with clustering options), Cluster3 (open‑source library with C, Perl, and Python bindings), and CLUTO (high‑performance library for both partitional and agglomerative clustering, supporting graph partitioning and a suite of criterion functions). For each tool the authors note its licensing model, supported algorithms, scalability, and typical use cases (e.g., CLUTO’s ability to cluster tens of thousands of high‑dimensional sparse vectors).
In conclusion, the paper synthesizes the identified challenges, validation techniques, and toolsets into a practical workflow: (1) analyze data characteristics (attribute types, missing values, outliers), (2) select an appropriate distance measure and estimate the number of clusters, (3) choose initial parameters carefully, (4) run one or more clustering algorithms, (5) evaluate results using several validity indices, and (6) adopt a software platform that matches the project’s scale and licensing constraints. The authors acknowledge limitations such as the absence of experimental results, the lack of discussion on recent deep‑learning‑based clustering methods, and the need for automated model selection techniques, suggesting these as directions for future research.
