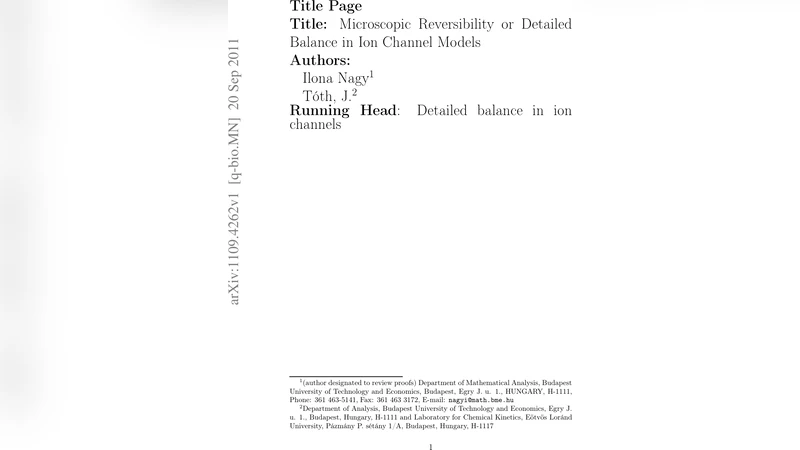

Microscopic Reversibility or Detailed Balance in Ion Channel Models

Mass action type deterministic kinetic models of ion channels are usually constructed in such a way as to obey the principle of detailed balance (or, microscopic reversibility) for two reasons: first, the authors aspire to have models harmonizing with thermodynamics, second, the conditions to ensure detailed balance reduce the number of reaction rate coefficients to be measured. We investigate a series of ion channel models which are asserted to obey detailed balance, however, these models violate mass conservation and in their case only the necessary conditions (the so-called circuit conditions) are taken into account. We show that ion channel models have a very specific structure which makes the consequences true in spite of the imprecise arguments. First, we transform the models into mass conserving ones, second, we show that the full set of conditions ensuring detailed balance (formulated by Feinberg) leads to the same relations for the reaction rate constants in these special cases, both for the original models and the transformed ones.

💡 Research Summary

The paper critically examines a widespread practice in ion‑channel modeling: constructing deterministic mass‑action kinetic schemes under the assumption that they satisfy detailed balance (also called microscopic reversibility). The authors point out that many published ion‑channel models do not conserve mass and that, in those cases, only the so‑called circuit conditions (the necessary part of detailed balance) are enforced, while the full set of conditions derived by Feinberg—namely, the circuit conditions together with the spanning‑forest conditions (the sufficient part)—are ignored.

The authors first transform the existing non‑conservative models into mass‑conserving versions by explicitly adding the missing species (e.g., auxiliary ions, charge carriers, or buffer molecules) so that the overall system becomes closed. They then apply Feinberg’s theorem, which relates the structure of a reaction network (numbers of complexes N, linkage classes L, and the dimension S of the stoichiometric subspace) to its deficiency δ = N − L − S. When δ = 0, the circuit conditions alone are sufficient for detailed balance; when δ > 0, additional constraints—the spanning‑forest conditions—must hold.

A key insight of the paper is that ion‑channel models belong to a special class of “compartmental” networks. In these networks the deficiency is either zero from the outset or becomes zero after the mass‑conserving transformation because the transformed network contains no cycles (no circuits). Consequently, the only remaining constraints are the spanning‑forest conditions, which turn out to be mathematically identical to the circuit conditions originally imposed on the non‑conservative models. In other words, the earlier practice of checking only circuit conditions happened to give the correct parameter relationships, but for the wrong theoretical reason.

The authors illustrate the theory with several concrete examples: the Érdi–Ropolyi model (four transmitters and three channel states), the De Young–Keizer model (multiple transmitters and receptor‑transmitter complexes), and other classic ion‑channel schemes. For each case they compute N, L, S, and δ before and after transformation, showing that the transformed models have δ = 0 and no circuits. They then derive the explicit relations among forward and reverse rate constants that guarantee detailed balance. In every example the relation obtained from the spanning‑forest condition coincides with the original circuit condition (e.g., the product of forward rates equals the product of reverse rates around any closed loop).

An important practical consequence is the reduction in the number of independent kinetic parameters that must be measured experimentally. The circuit (or spanning‑forest) condition imposes one algebraic constraint, so one of the rate constants can be expressed in terms of the others. Since the same constraint holds after the mass‑conserving transformation, the experimental effort required to parameterize the model does not increase, while the model now respects both thermodynamic consistency and mass conservation.

The discussion section emphasizes that any rigorous ion‑channel model should explicitly enforce mass conservation and verify the full set of detailed‑balance conditions. The authors also note that stochastic formulations (e.g., Markov chain representations) can be tested for microscopic reversibility by time‑reversal statistical analyses, but the deterministic framework presented here provides a clear algebraic route to guarantee thermodynamic admissibility.

Finally, the paper suggests future work: extending the analysis to models with multiple ion species, incorporating explicit electric field effects, and developing automated tools (such as the Mathematica package ReactionKinetics.m) to compute deficiency and generate the necessary constraints for arbitrary reaction networks. By bridging the gap between formal kinetic theory and practical ion‑channel modeling, the work offers a robust methodology for building thermodynamically sound and experimentally tractable models of biological ion channels.
