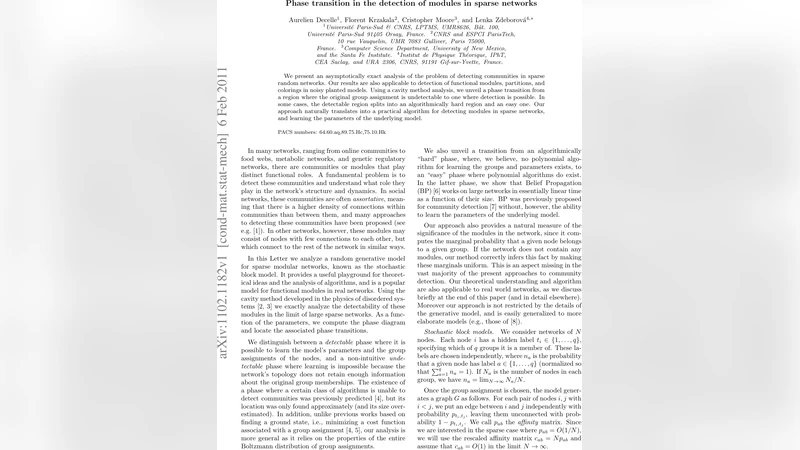

Phase transition in the detection of modules in sparse networks

We present an asymptotically exact analysis of the problem of detecting communities in sparse random networks. Our results are also applicable to detection of functional modules, partitions, and colorings in noisy planted models. Using a cavity method analysis, we unveil a phase transition from a region where the original group assignment is undetectable to one where detection is possible. In some cases, the detectable region splits into an algorithmically hard region and an easy one. Our approach naturally translates into a practical algorithm for detecting modules in sparse networks, and learning the parameters of the underlying model.

💡 Research Summary

The paper provides an asymptotically exact statistical‑physics analysis of community (module) detection in sparse random graphs generated by the stochastic block model (SBM). Each node i carries a hidden label t_i∈{1,…,q} drawn from a prior distribution {n_a}. Edges are placed independently with probability p_{ab}=c_{ab}/N, so that the average degree remains O(1) in the large‑N limit. The observable data consist solely of the adjacency matrix A, and the goal is to infer both the model parameters θ=(q,{n_a},{c_{ab}}) and the true labeling {t_i}.

From a Bayesian perspective, the posterior P(θ|G) is proportional to the partition function Z(θ) of a generalized Potts model with Hamiltonian H({t_i}|θ). The free energy f(θ)=−(1/N)log Z(θ) governs the likelihood of the parameters: a unique, non‑degenerate minimum of f(θ) implies that the true parameters can be recovered with high probability, and the associated Boltzmann distribution yields exact node‑wise marginals ν_i(t)=P(t_i=t|G).

To evaluate f(θ) the authors employ the cavity method, which leads to belief‑propagation (BP) equations for messages ψ_{i→j}(t). In the thermodynamic limit of locally tree‑like sparse graphs, BP is exact; each iteration costs O(N) and converges in a few steps. The fixed‑point marginals give an estimate of the overlap with the planted labeling, while the Bethe free energy f_BP(θ) provides a tractable surrogate for f(θ). By embedding BP within an Expectation‑Maximization (EM) loop, the algorithm iteratively updates the parameters to the values that maximize the likelihood (c′_{ab}=… and n′_a=…) and recomputes the messages until convergence. The number of groups q can be selected by running the procedure for several candidate values and choosing the one where f_BP stops decreasing.

The analysis reveals three distinct phases:

1. Paramagnetic (undetectable) phase – The Bethe free energy is flat around the true θ, BP converges to a trivial fixed point with uniform marginals ν_i(t)=1/q, and the overlap Q between inferred and planted assignments is zero. In this regime the graph is statistically indistinguishable from an Erdős‑Rényi graph with the same average degree; no algorithm can recover the communities.

2. Ordered (detectable‑easy) phase – The free energy possesses a global minimum at the planted parameters. BP initialized close to the true labeling quickly converges to a non‑trivial fixed point, yielding accurate marginals and a positive overlap. Parameter learning is also successful; the EM loop recovers the original c_{ab} and n_a. This phase corresponds to the regime where community detection is both information‑theoretically possible and algorithmically easy.

3. Hard (detectable‑but‑algorithmically‑hard) phase – Both the paramagnetic and ordered fixed points coexist; the ordered one has lower free energy but its basin of attraction is exponentially small. Random initialization of BP typically falls into the paramagnetic basin, making the problem computationally hard despite being statistically detectable. The transition between the easy and hard regimes is a first‑order (discontinuous) phase transition, characterized by a spinodal point where the paramagnetic solution loses stability.

Linear stability analysis of the BP equations yields a simple detectability threshold: \
