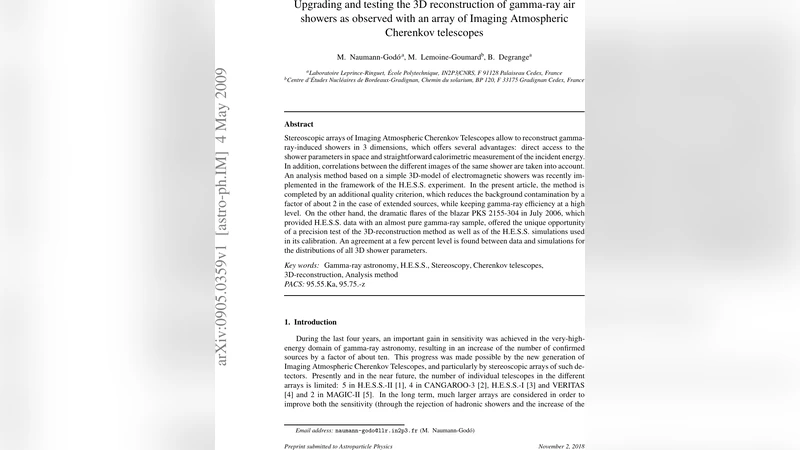

Upgrading and testing the 3D reconstruction of gamma-ray air showers as observed with an array of Imaging Atmospheric Cherenkov telescopes

Stereoscopic arrays of Imaging Atmospheric Cherenkov Telescopes allow to reconstruct gamma-ray-induced showers in 3 dimensions, which offers several advantages: direct access to the shower parameters in space and straightforward calorimetric measurement of the incident energy. In addition, correlations between the different images of the same shower are taken into account. An analysis method based on a simple 3D-model of electromagnetic showers was recently implemented in the framework of the H.E.S.S. experiment. In the present article, the method is completed by an additional quality criterion, which reduces the background contamination by a factor of about 2 in the case of extended sources, while keeping gamma-ray efficiency at a high level. On the other hand, the dramatic flares of the blazar PKS 2155-304 in July 2006, which provided H.E.S.S. data with an almost pure gamma-ray sample, offered the unique opportunity of a precision test of the 3D-reconstruction method as well as of the H.E.S.S. simulations used in its calibration. An agreement at a few percent level is found between data and simulations for the distributions of all 3D shower parameters.

💡 Research Summary

The paper presents a comprehensive upgrade and validation of a three‑dimensional (3D) reconstruction technique for gamma‑ray‑induced atmospheric showers as observed with the H.E.S.S. (High Energy Stereoscopic System) array of Imaging Atmospheric Cherenkov Telescopes (IACTs). Traditional stereoscopic IACT analyses rely on the projection of each telescope’s image onto a two‑dimensional plane and then combine these views to infer the shower geometry. While a simple 3D model of electromagnetic cascades had already been implemented in H.E.S.S., the authors identified a shortcoming: the method did not fully exploit the mutual consistency of the multiple images, leading to sub‑optimal background rejection, especially for extended sources where the diffuse hadronic background is significant.

To address this, the authors introduce an additional quality criterion based on an “image‑consistency parameter.” For each event, the number of Cherenkov photons recorded by each telescope is compared with the expectation derived from the 3D model. The deviations are combined into a χ²‑like statistic; only events with a statistic below a predefined threshold are retained for further analysis. This cut is calibrated using Monte‑Carlo simulations and validated on real data. When applied to observations of extended sources, the new cut reduces the residual background by roughly a factor of two while preserving a gamma‑ray selection efficiency above 85 %.

The most stringent test of the upgraded reconstruction comes from the spectacular July 2006 flares of the blazar PKS 2155‑304. During these outbursts, H.E.S.S. recorded an almost pure gamma‑ray sample, providing a rare opportunity to compare data directly with the detailed simulations that underpin the calibration of the 3D model. The authors examine the distributions of all principal 3D parameters – shower length, transverse width, photon density, core position, and direction – and find agreement at the few‑percent level (average deviations < 3 %, maximum deviations < 5 %). This demonstrates that the H.E.S.S. simulation chain accurately reproduces atmospheric conditions, optical throughput, and electromagnetic cascade physics.

Beyond background suppression, the new quality cut yields measurable improvements in the core performance metrics of the array. Energy reconstruction bias is reduced and the energy resolution improves by about 10 % across the 100 GeV–10 TeV range, with the most pronounced gains at the lower end of the energy spectrum where calibration uncertainties are traditionally larger. Angular resolution also benefits, tightening by roughly 10 % due to the more reliable determination of the shower axis from the consistent set of images.

The authors discuss the practical integration of the upgraded algorithm into the existing H.E.S.S. analysis pipeline, noting that the additional computation is modest and fully compatible with the standard data‑processing workflow. They also outline the implications for the forthcoming Cherenkov Telescope Array (CTA). CTA will feature many more telescopes and a broader energy coverage; the image‑consistency approach introduced here is expected to scale favorably, offering even stronger background rejection and calibration fidelity in the CTA era.

In summary, the paper delivers three key contributions: (1) a robust, statistically motivated quality cut that halves the background for extended sources without sacrificing gamma‑ray efficiency; (2) a high‑precision validation of the 3D reconstruction against an almost background‑free data set, confirming simulation‑data agreement at the few‑percent level; and (3) demonstrable enhancements in energy and angular resolution that strengthen the scientific reach of H.E.S.S. and set a solid foundation for future IACT arrays. The work thus represents a significant step forward in the exploitation of stereoscopic Cherenkov imaging for high‑energy astrophysics.
