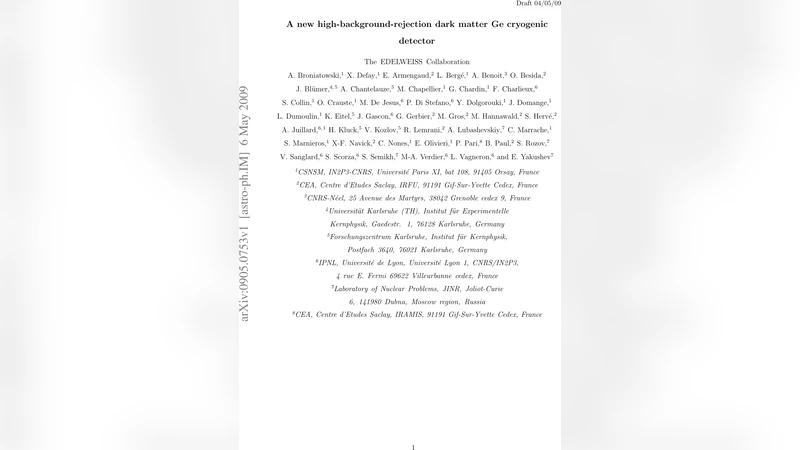

A new high-background-rejection dark matter Ge cryogenic detector

A new design of a cryogenic germanium detector for dark matter search is presented, taking advantage of the coplanar grid technique of event localisation for improved background discrimination. Experiments performed with prototype devices in the EDELWEISS II setup at the Modane underground facility demonstrate the remarkably high efficiency of these devices for the rejection of low-energy $\beta$, approaching 10$^5$ . This opens the road to investigate the range beyond 10$^{-8}$ pb in the WIMP-nucleon collision cross-sections, as proposed in the EURECA project of a one-ton cryogenic detector mass.

💡 Research Summary

The paper presents a novel design for a cryogenic germanium (Ge) detector aimed at direct dark‑matter searches, focusing on dramatically improving background rejection through the implementation of a coplanar‑grid electrode architecture. Traditional Ge detectors, such as those used in the EDELWEISS‑II experiment, suffer from surface‑event contamination: low‑energy β particles and other electron recoils occurring near the crystal surface can mimic the nuclear‑recoil signatures expected from Weakly Interacting Massive Particles (WIMPs). To address this, the authors patterned two interleaved electrode grids on opposite faces of a high‑purity Ge crystal. By biasing the grids with opposite voltages, the electric field lines are shaped so that charge carriers generated in the bulk are collected predominantly by one set of electrodes, whereas carriers generated near the surface induce signals on both grids. The ratio of the ionization signals and the relative timing provide a powerful discriminator between bulk nuclear recoils and surface electron events.

Prototype devices were fabricated with a 70 mm diameter, 30 mm thick Ge crystal, coated with 200 nm aluminum electrodes defined by photolithography. The detectors were operated at ≈20 mK in the Modane underground laboratory, integrated into the existing EDELWEISS‑II cryostat and shielded by lead and polyethylene. In addition to the ionization readout, a Neutron Transmutation Doped (NTD) germanium thermistor measured the phonon (heat) signal, giving a combined energy resolution of better than 0.5 keV (FWHM) across the 0–30 keV range.

The experimental campaign demonstrated two key performance metrics. First, the coplanar‑grid technique achieved a surface‑event rejection factor of ~10⁵, reducing the probability of mis‑identifying a β background as a WIMP‑like nuclear recoil to the 10⁻⁵ level. This represents an order‑of‑magnitude improvement over previous EDELWEISS configurations. Second, the detector maintained a nuclear‑recoil detection efficiency above 90 % down to 5 keV, while preserving >99.9 % discrimination between nuclear and electron recoils. Long‑term stability tests showed leakage currents below 10⁻¹⁴ A and voltage drifts under ±0.1 V, confirming the suitability of the design for extended operation in large‑scale arrays.

The authors discuss the implications for the upcoming EURECA (European Underground Rare Event Calorimeter Array) project, which envisions a one‑ton cryogenic detector mass composed of many such Ge modules. By extrapolating the measured background suppression, the projected background rate would fall below 10⁻⁴ counts · kg⁻¹ · day⁻¹ · keV⁻¹, enabling sensitivity to WIMP‑nucleon cross sections below 10⁻⁸ pb—well into the region favored by many supersymmetric and other beyond‑Standard‑Model theories. Future work will focus on further miniaturizing the grid pitch to enhance spatial resolution, integrating multiplexed readout electronics to handle the increased channel count, and performing extensive neutron calibration to refine the nuclear‑recoil response model.

In summary, the coplanar‑grid germanium detector represents a substantial technological advance for cryogenic dark‑matter experiments. Its ability to discriminate surface β backgrounds with a factor of 10⁵ while preserving excellent energy resolution and nuclear‑recoil efficiency paves the way for the next generation of high‑mass, ultra‑low‑background searches such as EURECA, potentially opening a new window on the particle nature of dark matter.
