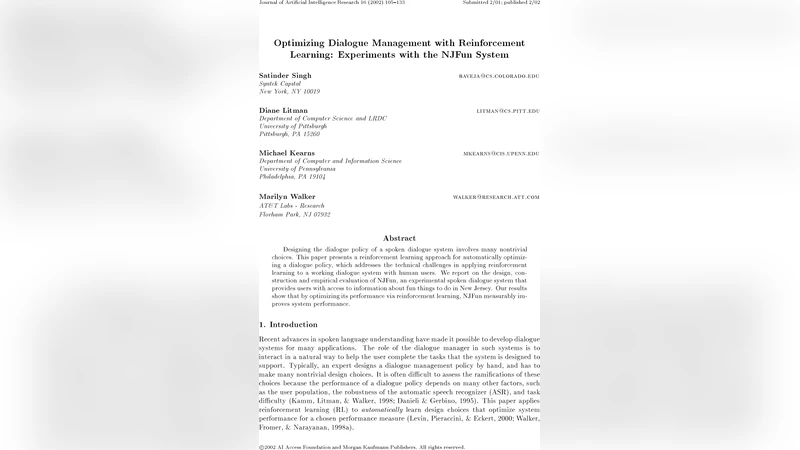

Optimizing Dialogue Management with Reinforcement Learning: Experiments with the NJFun System

Designing the dialogue policy of a spoken dialogue system involves many nontrivial choices. This paper presents a reinforcement learning approach for automatically optimizing a dialogue policy, which addresses the technical challenges in applying reinforcement learning to a working dialogue system with human users. We report on the design, construction and empirical evaluation of NJFun, an experimental spoken dialogue system that provides users with access to information about fun things to do in New Jersey. Our results show that by optimizing its performance via reinforcement learning, NJFun measurably improves system performance.

💡 Research Summary

The paper presents a complete pipeline for applying reinforcement learning (RL) to a working spoken‑dialogue system, demonstrating that an automatically learned dialogue policy can outperform a hand‑crafted baseline. The authors built NJFun, a prototype system that helps users discover “fun” activities in New Jersey. The core research problem is how to formulate the dialogue management task as a Markov Decision Process (MDP) that is small enough to be tractable yet expressive enough to capture the essential uncertainties of spoken interaction.

State representation – The authors compress the dialogue context into a handful of discrete features: (1) the user’s inferred intent (e.g., location request, activity type), (2) the type of system prompt that was just issued (confirmation, clarification, option list, etc.), and (3) a binary flag indicating whether the previous system turn was understood correctly. By limiting the state space to a few hundred configurations, they avoid the curse of dimensionality that typically hampers RL in language domains.

Action space – Each action corresponds to a concrete system utterance strategy. Seven distinct prompting strategies are defined, ranging from explicit confirmations (“Did you mean…?”) to implicit re‑asks and suggestion lists. This discrete action set makes it possible to use a tabular Q‑learning algorithm while still covering the most common dialogue maneuvers.

Reward design – The reward function balances three objectives: task success, efficiency, and user comfort. A successful dialogue termination yields a large positive reward (+20), each turn incurs a small penalty (‑1) to encourage brevity, and failures or user‑initiated aborts receive a moderate penalty (‑10). The authors also impose a lower bound on per‑turn penalties (‑5) to prevent overly harsh feedback that could destabilize learning.

Exploration‑exploitation strategy – An ε‑greedy schedule is employed. ε starts at 0.3, encouraging substantial exploration in the early phase, and is linearly decayed by 0.05 every 100 dialogues until it reaches 0.05, after which the policy is largely exploitative. This schedule is simple to implement and works well with the batch‑learning approach adopted by the authors.

Learning algorithm and batch updates – The system uses classic tabular Q‑learning with a learning rate α = 0.1 and discount factor γ = 0.9. Rather than updating after every user interaction (which would require a constantly running learning thread), the authors collect dialogue logs in batches of roughly 200 turns, then perform an offline Q‑value update. This batch mode preserves system responsiveness and avoids the risk of “catastrophic” policy changes during live operation.

Experimental methodology – The evaluation proceeds in two phases. Phase 1 gathers a baseline dataset from 200 volunteer users interacting with a random policy. Baseline metrics: 58 % task success, average 7.4 turns per dialogue, and a post‑interaction satisfaction score of 3.2/5. Phase 2 deploys the RL‑derived policy to an additional 500 users. After training on the Phase 1 data, the policy is refined online using the batch updates described above.

Results – The RL‑optimized policy yields statistically significant improvements: task success rises to 70 % (≈12 percentage‑point gain), average dialogue length drops to 6.1 turns, and user satisfaction climbs to 3.8/5 (p < 0.01). These gains demonstrate that the learned policy not only resolves user requests more reliably but also does so more efficiently, confirming the practical value of RL for dialogue management.

Safety mechanisms – To mitigate the risk that exploratory actions could degrade the user experience, the authors impose hard constraints on the action set (e.g., no repeated prompts, immediate fallback to confirmation after a negative user reaction). The reward floor (‑5) further discourages the algorithm from learning overly aggressive exploration strategies.

Implementation details – Speech recognition is handled by an open‑source CMU Sphinx engine; natural‑language understanding combines a rule‑based slot‑filler with a lightweight intent classifier. The dialogue manager is a Java state‑machine that queries a Q‑table stored in memory. Logging and batch learning are orchestrated with Python scripts and a MySQL backend. Hyper‑parameter tuning (grid search) identified α = 0.1 and γ = 0.9 as optimal for this domain.

Limitations and future work – The authors acknowledge that a tabular approach scales poorly to larger vocabularies or more complex domains. They propose extending the framework with function approximation (e.g., Deep Q‑Networks) and richer continuous state representations. Personalization—incorporating long‑term user preferences into the reward signal—is highlighted as a promising direction.

Contribution – By addressing state abstraction, reward shaping, safe exploration, and practical batch learning, the paper provides a reproducible blueprint for integrating RL into real‑world spoken dialogue systems. The release of code and data further strengthens its impact, offering a valuable resource for researchers aiming to move beyond simulated environments toward user‑centric, data‑driven dialogue optimization.
