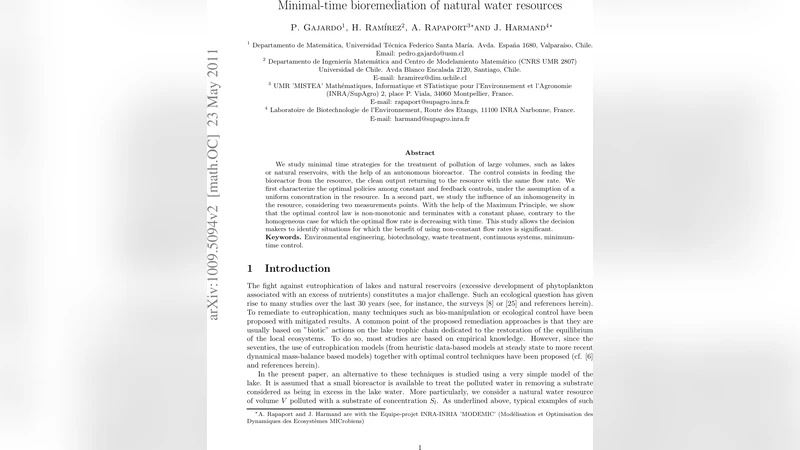

Minimal-time bioremediation of natural water resources

We study minimal time strategies for the treatment of pollution of large volumes, such as lakes or natural reservoirs, with the help of an autonomous bioreactor. The control consists in feeding the bioreactor from the resource, the clean output returning to the resource with the same flow rate. We first characterize the optimal policies among constant and feedback controls, under the assumption of a uniform concentration in the resource. In a second part, we study the influence of an inhomogeneity in the resource, considering two measurements points. With the help of the Maximum Principle, we show that the optimal control law is non-monotonic and terminates with a constant phase, contrary to the homogeneous case for which the optimal flow rate is decreasing with time. This study allows the decision makers to identify situations for which the benefit of using non-constant flow rates is significant.

💡 Research Summary

The paper addresses the problem of cleaning large natural water bodies—such as lakes or reservoirs—by means of an autonomous bioreactor, with the objective of minimizing the total treatment time. The authors formulate the task as an optimal‑control problem in which the control variable is the flow rate u(t) that extracts water from the resource, sends it through the bioreactor, and returns the treated water at the same rate. The pollutant concentration in the water body evolves according to a mass‑balance equation that incorporates the volume of the resource, the bioreactor’s degradation kinetics η(C), and the chosen flow rate. The goal is to drive the concentration below a prescribed admissible level C* in the shortest possible time.

The study is divided into two main parts. In the first part the authors assume a perfectly mixed, spatially homogeneous reservoir. Under this simplifying hypothesis they compare two families of admissible controls: (i) constant‑rate policies, where u(t)=u₀ for the whole operation, and (ii) state‑feedback policies, where u(t) is a function of the instantaneous concentration C(t). By applying the calculus of variations and the Pontryagin Maximum Principle (PMP), they derive the necessary optimality conditions and show that the optimal control is of “decreasing‑type”: the flow rate starts at a relatively high value (to remove a large amount of pollutant quickly) and then monotonically declines as the concentration falls. The analytical result is corroborated by numerical simulations that explore a wide range of initial concentrations, reactor efficiencies, and resource volumes. The authors conclude that, for a homogeneous water body, a simple decreasing schedule is essentially optimal and that more elaborate time‑varying strategies bring only marginal improvements.

In the second part the authors relax the homogeneity assumption and consider a resource that exhibits spatial inhomogeneity. They model the system with two measurement points (x₁ and x₂) that capture potentially different concentrations C₁(t) and C₂(t). Each point follows its own mixing dynamics, yet both are affected by the same global flow rate u(t). This leads to a coupled system of differential equations. The optimal‑control problem becomes more intricate because the control must now balance the two concentrations simultaneously. Using the PMP, the authors derive the Hamiltonian, the adjoint equations, and the switching conditions. The resulting optimal policy is no longer monotone. Instead, the optimal flow rate typically displays a non‑monotonic “rise‑fall‑rise” or “fall‑rise‑fall” pattern: after an initial high‑flow phase, the rate may temporarily increase again when one of the measurement points still contains a relatively high pollutant load while the other has already been largely cleaned. This non‑monotonic behavior is a direct consequence of the spatial disparity and is absent in the homogeneous case.

A further striking finding is that the optimal control terminates with a constant terminal phase: after the non‑monotonic segment, the flow rate settles at a steady value u_f that is maintained until the concentration at both points finally drops below C*. This constant terminal phase is required to eliminate the residual pollutant that would otherwise persist due to the inhomogeneous mixing. The authors perform extensive parametric studies, varying the distance between measurement points, the initial concentration gradient, and the bioreactor’s kinetic parameters. They show that the length of the non‑monotonic segment and the magnitude of the terminal flow rate are highly sensitive to these parameters. In particular, larger spatial gradients and lower reactor efficiencies lead to longer non‑monotonic phases and higher terminal flow rates.

The paper’s key insights for decision‑makers are:

1. Homogeneous resources – a simple decreasing flow schedule (high initial flow, then gradual reduction) is essentially optimal; the added complexity of fully time‑varying controls yields negligible time savings.

2. Inhomogeneous resources – significant time reductions can be achieved by employing non‑monotonic flow strategies that adapt to the spatial distribution of the pollutant. Ignoring spatial heterogeneity may result in sub‑optimal operation and longer treatment times.

3. Three‑phase structure – the optimal policy generally consists of an initial aggressive cleaning phase, a middle adaptive phase (which may involve temporary flow increases), and a final constant‑flow phase. The timing of the transitions depends on measurable quantities such as the concentration difference between the two points and the kinetic response of the bioreactor.

4. Practical implementation – real‑time monitoring at multiple locations and a control system capable of rapid flow adjustments are essential to exploit the benefits of the non‑monotonic strategy.

Finally, the authors outline future research directions, including extensions to more than two measurement points, incorporation of transport dynamics (advection‑diffusion), and the impact of environmental variables (temperature, pH) on bioreactor performance. Such extensions would bring the theoretical framework closer to field‑scale applications and provide water‑resource managers with robust, cost‑effective tools for rapid bioremediation.
