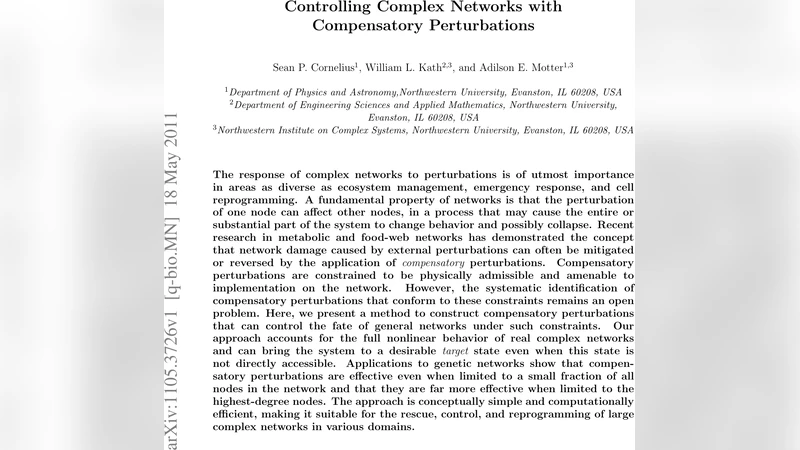

Controlling Complex Networks with Compensatory Perturbations

The response of complex networks to perturbations is of utmost importance in areas as diverse as ecosystem management, emergency response, and cell reprogramming. A fundamental property of networks is that the perturbation of one node can affect other nodes, in a process that may cause the entire or substantial part of the system to change behavior and possibly collapse. Recent research in metabolic and food-web networks has demonstrated the concept that network damage caused by external perturbations can often be mitigated or reversed by the application of compensatory perturbations. Compensatory perturbations are constrained to be physically admissible and amenable to implementation on the network. However, the systematic identification of compensatory perturbations that conform to these constraints remains an open problem. Here, we present a method to construct compensatory perturbations that can control the fate of general networks under such constraints. Our approach accounts for the full nonlinear behavior of real complex networks and can bring the system to a desirable target state even when this state is not directly accessible. Applications to genetic networks show that compensatory perturbations are effective even when limited to a small fraction of all nodes in the network and that they are far more effective when limited to the highest-degree nodes. The approach is conceptually simple and computationally efficient, making it suitable for the rescue, control, and reprogramming of large complex networks in various domains.

💡 Research Summary

Complex networks—ranging from power grids and ecological food webs to cellular gene‑regulatory circuits—are inherently vulnerable to external disturbances. A perturbation of a single node can cascade through the network, driving the whole system toward an undesirable stable state (e.g., a blackout, species extinction, or a diseased cellular phenotype). In many realistic scenarios, directly steering the system to a desired state is impossible because interventions are limited by physical, economic, or biological constraints (e.g., one can only down‑regulate a gene, cannot increase power flow beyond line capacities, or cannot add new species). The authors therefore ask: can we systematically identify compensatory perturbations—small, admissible changes that respect all constraints—and use them to push the system into the basin of attraction of a target state, after which the natural dynamics will carry it to the desired equilibrium?

The paper’s central insight is to treat the problem in state‑space terms. Every stable equilibrium x* possesses a basin of attraction Ω(x*), the set of initial conditions that evolve toward x*. If the admissible perturbation set X (defined by inequality and equality constraints on the state variables) overlaps Ω(x*), then a feasible perturbation exists that will guarantee convergence to the target. The difficulty lies in locating such an overlap in a high‑dimensional, nonlinear system where Ω(x*) is unknown.

To overcome this, the authors develop an iterative algorithm based on the variational equation. The network dynamics are written as (\dot{x}=F(x)) for an N‑dimensional state vector x. A small perturbation δx₀ applied at time t₀ evolves to δx(t)=M(x₀,t)·δx₀, where M satisfies ( \dot{M}=DF(x)·M) with M(t₀)=I. By integrating forward and identifying the time t_c at which the unperturbed trajectory comes closest to the target x*, the authors compute the linearized inverse mapping δx₀ = M⁻¹(x₀,t_c)·δx(t_c). This yields the optimal infinitesimal perturbation that would bring the trajectory nearest to the target, subject to a bound on its magnitude.

Because real interventions are constrained (e.g., only reductions of certain variables are allowed), the authors cast the search for δx₀ as a constrained optimization problem: minimize the distance to the target while satisfying component‑wise inequality/equality constraints g(x₀,x₀′) ≤ 0 and h(x₀,x₀′)=0, and a norm bound ‖δx₀‖ ≤ ε. The solution δx₀ is applied, updating the state to x₀′ = x₀ + δx₀. The system is then integrated for a long horizon τ; if the trajectory enters a small ball of radius κ around the target, the algorithm terminates successfully. Otherwise, the process repeats from the new state, each iteration moving the system incrementally closer to the target basin. If after a preset number of iterations no admissible perturbation can be found, the algorithm aborts, indicating that X and Ω(x*) do not intersect.

Key technical contributions include:

1. No prior knowledge of basin boundaries – the method discovers overlap purely by forward integration and linearization.
2. Scalable computation – the variational matrix M is obtained by integrating an N×N linear ODE, and each optimization step involves only N variables, making the approach feasible for thousands of nodes.
3. Iterative accumulation of small perturbations – this circumvents the nonlinearity that would invalidate a single large‑step linear approximation, while still exploiting the linearized dynamics for efficiency.

The authors validate the framework on synthetic gene‑regulatory networks. The basic unit is a two‑gene toggle switch with self‑activation and mutual inhibition, described by nonlinear ODEs that admit three stable fixed points: a symmetric “stem‑cell” state (both genes expressed) and two asymmetric differentiated states. Networks of N such units are coupled diffusively (strength ε) on random or preferential‑attachment graphs, representing tissues or cell cultures exchanging signaling molecules. The admissible perturbations are limited to down‑regulation of gene expression (i.e., each component can only be decreased).

Simulation results show that even when only a small fraction (≤5 %) of nodes are perturbed, the algorithm can reliably drive the whole system from a differentiated basin into the stem‑cell basin, and subsequently into the opposite differentiated basin if desired. Perturbations focused on high‑degree (hub) nodes dramatically increase success rates, reflecting the outsized influence of hubs on network dynamics. The method succeeds across a range of coupling strengths and network topologies, and the computational time scales modestly with N (seconds for N≈1000).

In contrast to classical control theory (e.g., linear feedback, controllability Gramian analysis), which often requires full state observability and unrestricted actuation, this approach explicitly incorporates realistic constraints and works directly with the nonlinear dynamics. It therefore offers a practical tool for rescue (preventing collapse), reprogramming (steering to a new functional state), and recovery (returning to a pre‑disturbance state) in diverse domains such as power‑grid restoration, ecosystem management, and cellular re‑differentiation.

Overall, the paper presents a conceptually simple yet powerful algorithm that leverages basin‑of‑attraction geometry, variational linearization, and constrained optimization to identify feasible compensatory perturbations in high‑dimensional complex networks. Its demonstrated efficiency, scalability, and robustness to constraint specifications make it a promising foundation for future research and real‑world applications in network control and resilience engineering.
