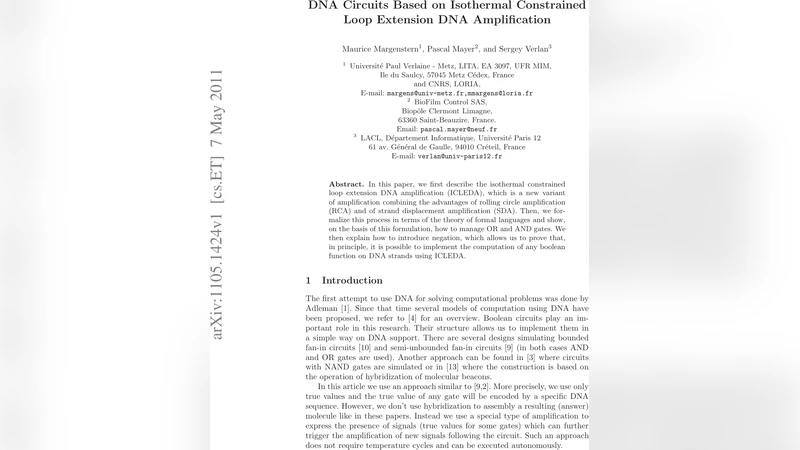

DNA Circuits Based on Isothermal Constrained Loop Extension DNA Amplification

In this paper, we first describe the isothermal constrained loop extension DNA amplification (ICLEDA), which is a new variant of amplification combining the advantages of rolling circle amplification (RCA) and of strand displacement amplification (SDA). Then, we formalize this process in terms of the theory of formal languages and show, on the basis of this formulation, how to manage OR and AND gates. We then explain how to introduce negation, which allows us to prove that, in principle, it is possible to implement the computation of any boolean function on DNA strands using ICLEDA.

💡 Research Summary

The paper introduces a novel isothermal DNA amplification method called Isothermal Constrained Loop Extension DNA Amplification (ICLEDA) and demonstrates how this method can be used to implement arbitrary Boolean logic circuits on DNA strands. The authors begin by reviewing existing DNA computing approaches, noting that early work such as Adleman’s demonstrated the feasibility of using DNA for computation, while later designs have employed rolling‑circle amplification (RCA) and strand‑displacement amplification (SDA) to generate large quantities of DNA under isothermal conditions. However, these earlier schemes often require temperature cycling, complex hybridization steps, or cumbersome product retrieval, limiting their scalability.

In Section 2 the authors describe the physical mechanism of ICLEDA in detail. A “loop complex” consists of a short circular DNA template split into three functional regions (3′ end, middle, 5′ end) and a tiny loop link that physically connects the two ends of the template. Primers bind to the 3′ region and are extended by a DNA polymerase. Because the loop link constrains the distance between the ends (typically 1–5 nm), extension proceeds only until the polymerase reaches the non‑natural nucleotides in the link, at which point the double‑stranded portion opens at the opposite end. This opening creates a single‑stranded “trigger” site that can accept a new primer, allowing the amplification cycle to continue indefinitely, producing an unbounded number of single‑stranded copies of the template sequence (designated F u′ R). If a complementary single‑stranded “trigger” strand hybridizes to the 3′ region, the loop becomes blocked and amplification stops. An “activator” strand that is complementary to the trigger’s 3′ end can bind, be extended, and displace the trigger, thereby unblocking the loop and restarting amplification. The authors also note that the loop complex can be immobilized on a solid support without interfering with the reaction, which is advantageous for integration into micro‑fluidic devices.

Section 2.2 formalizes these biochemical events using concepts from formal language theory. DNA molecules are abstracted as words over a four‑letter alphabet, with “sensitive” (uppercase) substrings representing reactive sites and “neutral” (lowercase) substrings representing inert regions. The concatenation operator L models the coexistence of molecules in solution, while the tensor operator ⊗ denotes the formation of a bound complex. The authors introduce a set of rewrite rules that capture primer binding, loop opening, trigger blocking, and activator‑mediated release. They also define an “apartness” metric that quantifies the positional distance of a sensitive substring from the molecule’s head; reactions involving substrings with lower apartness have higher priority, which explains why an activator can displace a trigger before the loop’s internal sensitive region reacts.

In Section 3 the authors map these formal rules onto Boolean logic gates. Each logical variable’s TRUE value is encoded as a specific DNA strand (⋄ Aw), while FALSE is represented implicitly by the absence of a strand. An OR gate is realized by arranging two input loop complexes such that the unblocking of either loop releases a common output strand, thereby propagating a TRUE signal to the downstream circuit. An AND gate requires both input loops to be unblocked; only when both triggers are removed does the output loop become accessible, mimicking the conjunctive behavior. NOT is achieved by using a dedicated “inhibitor” strand that can bind to an output loop and block it unless an activator strand (representing logical negation) is present. By chaining these primitive gates, any Boolean function can be assembled, because the set {AND, OR, NOT} is functionally complete. The authors emphasize that the entire computation proceeds autonomously at a constant temperature, without external timing or temperature cycling, and that the amplification of an unblocked loop yields a large, effectively unbounded number of output strands, ensuring robust signal propagation even if the loop is later re‑blocked.

The paper concludes by highlighting the practical implications of ICLEDA‑based DNA circuits. Since the reaction is isothermal and can be performed on immobilized loops, the approach is compatible with lab‑on‑a‑chip platforms, biosensors, and potentially large‑scale DNA‑based parallel processors. The formal language framework provides a clear, mathematically rigorous way to design and verify DNA logic circuits, bridging the gap between molecular biology and theoretical computer science. Overall, the work offers a new paradigm for DNA computing: a simple, scalable, and fully isothermal method for implementing arbitrary Boolean functions using DNA strand amplification.
