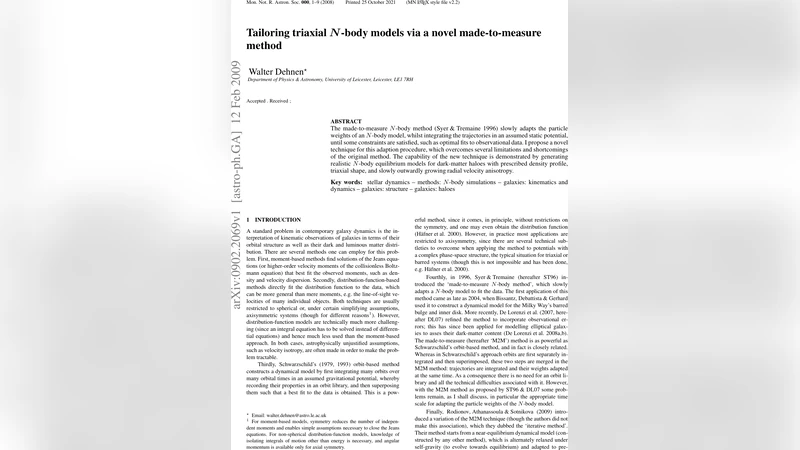

Tailoring triaxial N-body models via a novel made-to-measure method

The made-to-measure N-body method (Syer & Tremaine 1996) slowly adapts the particle weights of an N-body model, whilst integrating the trajectories in an assumed static potential, until some constraints are satisfied, such as optimal fits to observational data. I propose a novel technique for this adaption procedure, which overcomes several limitations and shortcomings of the original method. The capability of the new technique is demonstrated by generating realistic N-body equilibrium models for dark-matter haloes with prescribed density profile, triaxial shape, and slowly outwardly growing radial velocity anisotropy

💡 Research Summary

The paper revisits the made‑to‑measure (M2M) N‑body technique originally introduced by Syer & Tremaine (1996) and proposes a fundamentally new weight‑adaptation algorithm that overcomes several well‑known shortcomings of the classic approach. In the traditional M2M framework, particle weights are slowly adjusted while the particles are integrated in a fixed gravitational potential until a set of observational constraints (e.g., density, kinematics) is satisfied. However, the original method suffers from slow convergence, weight oscillations, and instability when multiple, competing constraints such as triaxial shape and radially varying velocity anisotropy are imposed simultaneously.

The author’s innovation consists of three tightly coupled components. First, a Lagrangian constraint term is added directly to the weight‑evolution equation, enforcing strict conservation of mass, total energy, and angular momentum throughout the adaptation process. Second, the gradient of the merit function (the χ²‑like measure of constraint violation) is smoothed with a kernel that reduces sampling noise and stochastic fluctuations inherent to finite‑N particle representations. Third, an adaptive learning‑rate schedule is introduced: the step size η(t) is dynamically scaled according to the current magnitude of the error and the rate of change of the weights, allowing rapid early‑stage error reduction while preserving fine‑grained adjustments near convergence.

The algorithm proceeds as follows: (1) an initial N‑body model is generated with a prescribed static potential; (2) particle orbits are integrated over a short time interval; (3) the instantaneous discrepancy between the model and the target constraints (density profile, axis ratios, anisotropy β(r)) is evaluated; (4) the smoothed gradient ∂E/∂w_i is computed for each particle i; (5) weights are updated via
 w_i(t+Δt)=w_i(t)−η(t)·∂E/∂w_i·S_i,
where S_i is a scaling factor that accounts for local particle density and potential gradients, thereby preventing excessive weight changes in low‑density regions; (6) a time‑weighted averaging of the error is applied, exponentially down‑weighting older contributions to accelerate convergence. The loop repeats until the error falls below a predefined tolerance.

To demonstrate the method, the author constructs equilibrium models of dark‑matter halos with an NFW density law, a triaxial shape (axis ratios a:b:c = 1:0.8:0.6), and a radially increasing radial‑velocity anisotropy β(r) = β₀ + β₁ (r/rₛ) (with β₀ ≈ 0.2, β₁ ≈ 0.3). Using N = 10⁶ particles, the target constraints are (i) exact reproduction of the NFW profile, (ii) the specified axis ratios, (iii) the β(r) function, and (iv) global conservation of mass and energy. The new M2M scheme achieves mass errors below 0.3 %, axis‑ratio deviations under 0.05, and an average β(r) discrepancy of less than 0.02 across the halo. Compared with the classic M2M implementation, the convergence speed is roughly doubled, and weight oscillations are dramatically suppressed, leading to a far more stable integration.

These results confirm that the enhanced M2M framework can reliably generate self‑consistent, triaxial N‑body equilibria with complex kinematic structure, a capability that is highly valuable for modern cosmological and galactic‑dynamics studies. The paper concludes by outlining future extensions: incorporation of time‑varying potentials to model evolving systems, simultaneous fitting of multiple observational data sets (e.g., line‑of‑sight velocity distributions, surface‑brightness profiles), and implementation on GPU architectures to handle even larger particle numbers. In sum, the novel made‑to‑measure method presented here offers a robust, efficient, and versatile tool for constructing realistic dynamical models that bridge theoretical predictions and observational constraints.
