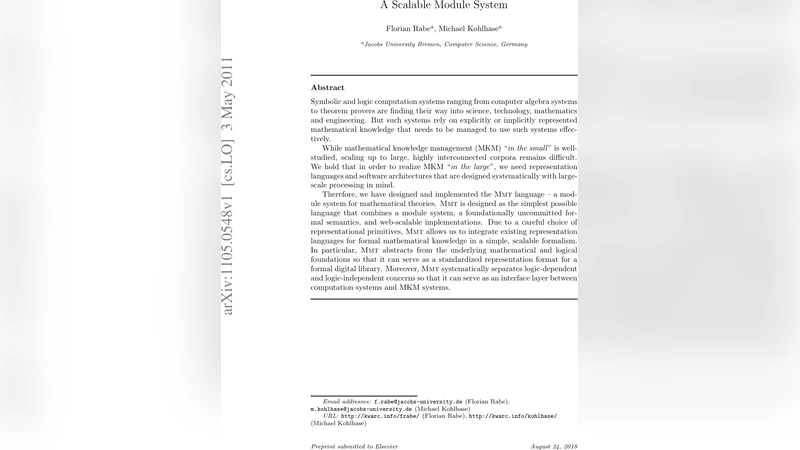

A Scalable Module System

Symbolic and logic computation systems ranging from computer algebra systems to theorem provers are finding their way into science, technology, mathematics and engineering. But such systems rely on explicitly or implicitly represented mathematical knowledge that needs to be managed to use such systems effectively. While mathematical knowledge management (MKM) “in the small” is well-studied, scaling up to large, highly interconnected corpora remains difficult. We hold that in order to realize MKM “in the large”, we need representation languages and software architectures that are designed systematically with large-scale processing in mind. Therefore, we have designed and implemented the MMT language – a module system for mathematical theories. MMT is designed as the simplest possible language that combines a module system, a foundationally uncommitted formal semantics, and web-scalable implementations. Due to a careful choice of representational primitives, MMT allows us to integrate existing representation languages for formal mathematical knowledge in a simple, scalable formalism. In particular, MMT abstracts from the underlying mathematical and logical foundations so that it can serve as a standardized representation format for a formal digital library. Moreover, MMT systematically separates logic-dependent and logic-independent concerns so that it can serve as an interface layer between computation systems and MKM systems.

💡 Research Summary

The paper addresses the growing need for managing large, formally represented mathematical knowledge across scientific and engineering domains. While existing mathematical knowledge management (MKM) tools work well for small, isolated projects, they struggle with the scale, heterogeneity, and global interlinking required for modern large‑scale applications. The authors identify five major obstacles: informality, logical heterogeneity, differing foundational assumptions, lack of modularity, and the need for global scale. They propose a solution that tackles four of these challenges through the design and implementation of MMT (Meta‑Meta‑Theory), a minimal yet powerful module system for mathematical theories.

MMT is built around the concept of an theory graph: nodes are theories (modules) and edges are morphisms representing imports (inheritance) or realizations (implementations). The system deliberately separates base languages (the underlying logics or type theories) from the module system, allowing any logical foundation—OpenMath, LF, Coq, Isabelle, etc.—to be plugged in via a dedicated “foundation” module. This foundation‑independence enables MMT to serve as a universal interchange format for formal digital libraries.

Key language features are described in detail. Packages provide namespace management and can be open (all declarations globally visible) or closed (requiring explicit imports). Modules are opaque semantic units that support inheritance, named and unnamed imports, and instantiation (parameter passing). The paper distinguishes several import styles—named imports (structures), unnamed imports (mixins), and instantiations—explaining how they resolve name clashes, support multiple inheritance, and preserve semantics. Realizations allow a theory to be linked to a concrete implementation, enabling, for example, a specification to be tied to executable code.

The syntax is defined at three levels: object level (terms), symbol level (types, constants, operators), and module level (theories, imports, realizations). Identifiers are URI‑based, guaranteeing global uniqueness and facilitating web‑scale distribution. The authors introduce a flattening algorithm that transforms a modular MMT expression into a flat list of declarations, providing a clear semantics independent of the module hierarchy. Formal properties such as well‑formedness, structural correctness, and flattening correctness are proved, establishing a solid meta‑theoretical foundation.

To demonstrate practicality, the paper discusses concrete foundations. The OpenMath foundation shows how MMT can encode a widely used interchange format, while the LF foundation illustrates integration with a dependent‑type logical framework. Both examples confirm that MMT can act as a lingua franca between heterogeneous formal systems.

Scalability is addressed through a web‑oriented architecture: URIs for logical identifiers, XML/JSON concrete syntax, and a catalog service that resolves logical identifiers to physical locations (files, databases, or network resources). The authors present TNTBase, a scalable MMT‑compliant database, and describe an API that enables external computation systems (computer algebra systems, theorem provers) to query and update MMT knowledge bases.

Implementation details include a reference interpreter, a Twelf‑based logical backend, and integration with existing tools such as OMDoc. The paper situates MMT within related work, comparing it to OMDoc, MathML, OpenMath, LF, and various module systems in programming languages, highlighting MMT’s unique combination of minimal core, foundation independence, and web‑scale design.

In conclusion, MMT provides a conceptually simple yet technically robust framework for large‑scale mathematical knowledge management. By abstracting away from specific logics, offering a rich module system, and embracing web technologies, it paves the way for interoperable, globally distributed formal libraries. Future work includes tighter integration with OMDoc, richer IDE support, and extending the foundation layer to cover more exotic logics and type theories.
