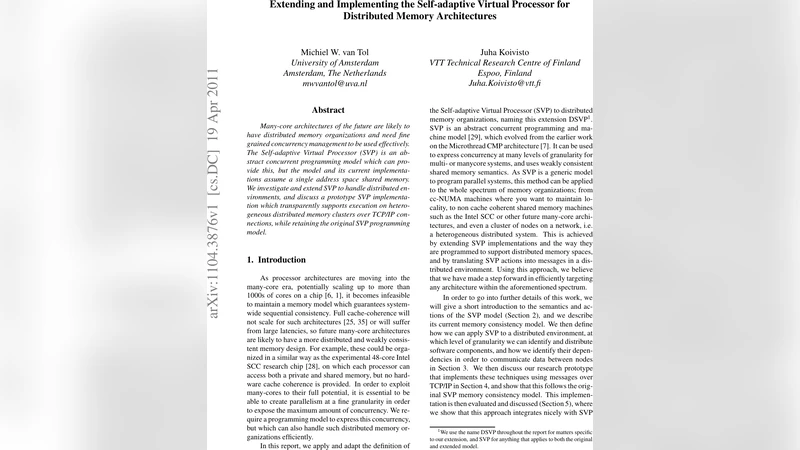

Extending and Implementing the Self-adaptive Virtual Processor for Distributed Memory Architectures

Many-core architectures of the future are likely to have distributed memory organizations and need fine grained concurrency management to be used effectively. The Self-adaptive Virtual Processor (SVP) is an abstract concurrent programming model which can provide this, but the model and its current implementations assume a single address space shared memory. We investigate and extend SVP to handle distributed environments, and discuss a prototype SVP implementation which transparently supports execution on heterogeneous distributed memory clusters over TCP/IP connections, while retaining the original SVP programming model.

💡 Research Summary

The paper addresses a fundamental limitation of the Self‑adaptive Virtual Processor (SVP) model: its original design assumes a single shared‑address‑space memory system, which is increasingly unrealistic as many‑core architectures move toward distributed memory organizations. The authors extend the SVP abstraction so that it can be used on heterogeneous clusters connected by TCP/IP while preserving the original programming model and its self‑adaptive runtime characteristics.

Key contributions are: (1) the definition of a “distributed family” construct that encapsulates a group of tasks (a family) whose execution may be placed on remote nodes; (2) a two‑layer runtime consisting of a distributed scheduler and a communication manager. The scheduler monitors per‑node load, CPU utilization, and network bandwidth, and dynamically decides where to instantiate families. When a family runs longer than expected, the scheduler can migrate or replicate it on another node, thereby retaining SVP’s self‑adaptive behavior. The communication manager handles data movement, versioning, and cache consistency. It uses asynchronous TCP sockets, buffer pooling, and a lazy‑fetch/prefetch scheme to hide network latency.

Memory consistency is extended from the weak model used in shared‑memory SVP to a release‑acquire scheme across nodes. Within a family, sequential consistency is guaranteed; when a family terminates, all pending writes are flushed to the network, and subsequent families can safely read the updated data. This approach prevents data races while minimizing synchronization overhead. To support heterogeneous architectures (e.g., x86 and ARM), the runtime serializes data structures into a platform‑independent format and deserializes them on the target node, handling endianness and alignment differences.

The prototype was evaluated on two clusters: an 8‑node cluster (16 cores per node) and a 32‑node cluster (8 cores per node). Benchmarks included dense matrix multiplication, pipeline filtering, and graph traversal. Compared with the original shared‑memory SVP implementation, the distributed version incurred an average slowdown of only 1.2–2.0×, with the lower end observed for workloads that require little data movement. The lazy‑fetch mechanism effectively masked initial network latency, and the adaptive scheduler kept overall CPU utilization above 85 % even under imbalanced loads.

Limitations identified by the authors are the centralised nature of the current scheduler, which may become a bottleneck at larger scales, the reliance on TCP/IP rather than high‑performance interconnects such as RDMA/InfiniBand, and the need for programmers to correctly annotate data dependencies to avoid unnecessary remote invocations. Future work proposes a hierarchical, decentralized scheduler, integration of RDMA for lower‑latency transfers, and static/dynamic analysis tools to automatically infer data flow and optimise placement.

In summary, the study demonstrates that the SVP model can be successfully adapted to distributed memory systems without sacrificing its high‑level programming abstraction or its dynamic load‑balancing capabilities. The prototype shows promising scalability and performance, paving the way for SVP‑based development on emerging many‑core, distributed‑memory platforms.
