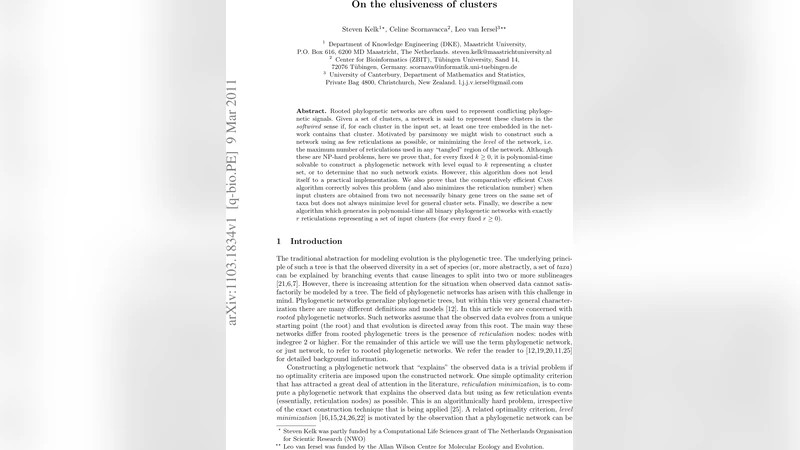

On the elusiveness of clusters

Rooted phylogenetic networks are often used to represent conflicting phylogenetic signals. Given a set of clusters, a network is said to represent these clusters in the “softwired” sense if, for each cluster in the input set, at least one tree embedded in the network contains that cluster. Motivated by parsimony we might wish to construct such a network using as few reticulations as possible, or minimizing the “level” of the network, i.e. the maximum number of reticulations used in any “tangled” region of the network. Although these are NP-hard problems, here we prove that, for every fixed k >= 0, it is polynomial-time solvable to construct a phylogenetic network with level equal to k representing a cluster set, or to determine that no such network exists. However, this algorithm does not lend itself to a practical implementation. We also prove that the comparatively efficient Cass algorithm correctly solves this problem (and also minimizes the reticulation number) when input clusters are obtained from two not necessarily binary gene trees on the same set of taxa but does not always minimize level for general cluster sets. Finally, we describe a new algorithm which generates in polynomial-time all binary phylogenetic networks with exactly r reticulations representing a set of input clusters (for every fixed r >= 0).

💡 Research Summary

This paper investigates the computational problem of constructing rooted phylogenetic networks that represent a given set of clusters in the soft‑wired sense while minimizing two natural measures of complexity: the total number of reticulation nodes and the network’s level (the maximum number of reticulations in any biconnected component). The authors first prove that for any fixed integer k ≥ 0, one can decide in polynomial time whether a level‑k network exists that represents the input clusters, and if so, construct such a network. The algorithm proceeds by analysing the incompatibility graph of the clusters, decomposing it into “tangled” components, and then solving a bounded‑level embedding problem for each component using dynamic programming and cut‑node analysis. Although theoretically polynomial, the method is not intended for practical use because of its intricate graph‑decomposition steps.

Next, the paper revisits the Cass algorithm, originally designed to build low‑level networks from clusters. The authors show that when the clusters are derived from exactly two (possibly non‑binary) gene trees on the same taxon set, a divide‑and‑conquer variant called Cass DC (implemented in Dendroscope) simultaneously minimizes both the reticulation number and the level. This result extends earlier work that proved Cass is optimal for level ≤ 2, and it explains why, for two trees, the number of reticulations required to display the trees equals the number required to represent their clusters. The proof hinges on the fact that for two trees the natural lower bound on reticulations is always tight.

However, the authors also provide a concrete counterexample showing that Cass does not always produce a level‑optimal network when the required level is three or higher. In such cases Cass may introduce unnecessary reticulations or create components whose reticulation count exceeds the optimum. This demonstrates that Cass’s optimality is limited to low‑level instances.

To address the general case, the paper introduces a new algorithm that, for any fixed reticulation count r, enumerates in polynomial time all binary phylogenetic networks with exactly r reticulations that represent the input clusters. The key idea is to treat each reticulation as a “switch” (choosing one incoming edge) and to explore all possible switchings; because r is fixed, the number of switchings is polynomially bounded. Each candidate network is then checked for cluster representation. While this algorithm does not directly minimize level, it provides a complete solution for the reticulation‑minimization problem when r is small.

Finally, the authors present an implementation called Clustistic, which bootstraps existing triplet‑merging software to realize the theoretical algorithms in practice. Experimental comparisons with Cass show that Clustistic often yields networks with fewer reticulations and lower level, especially on data derived from non‑binary trees.

In summary, the paper clarifies several open questions about the cluster model: Cass is optimal for two‑tree inputs but not for higher‑level instances; a fixed‑k level‑decision algorithm exists but is mainly of theoretical interest; and a fixed‑r reticulation‑enumeration algorithm offers a practical route to optimal solutions when the reticulation budget is small. The work also highlights why clusters are more elusive than trees: the interaction between local (level) and global (reticulation) optimization creates combinatorial obstacles that do not appear in tree‑only settings, pointing to future research directions in approximation algorithms and parameterized complexity for higher‑level cluster problems.
