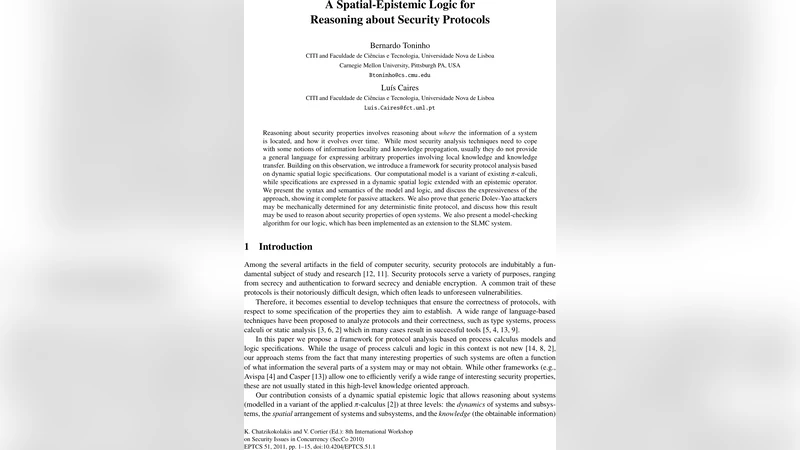

A Spatial-Epistemic Logic for Reasoning about Security Protocols

Reasoning about security properties involves reasoning about where the information of a system is located, and how it evolves over time. While most security analysis techniques need to cope with some notions of information locality and knowledge propagation, usually they do not provide a general language for expressing arbitrary properties involving local knowledge and knowledge transfer. Building on this observation, we introduce a framework for security protocol analysis based on dynamic spatial logic specifications. Our computational model is a variant of existing pi-calculi, while specifications are expressed in a dynamic spatial logic extended with an epistemic operator. We present the syntax and semantics of the model and logic, and discuss the expressiveness of the approach, showing it complete for passive attackers. We also prove that generic Dolev-Yao attackers may be mechanically determined for any deterministic finite protocol, and discuss how this result may be used to reason about security properties of open systems. We also present a model-checking algorithm for our logic, which has been implemented as an extension to the SLMC system.

💡 Research Summary

The paper introduces a novel framework for the formal analysis of security protocols that integrates three orthogonal dimensions—temporal dynamics, spatial distribution, and epistemic knowledge—into a single logical language called Dynamic Spatial Epistemic Logic (DSEL). The authors start by observing that existing security analysis techniques often handle information locality and knowledge propagation in an ad‑hoc manner and lack a unified expressive medium for arbitrary properties concerning local knowledge and its transfer. To address this gap, they propose a process calculus based on a variant of the applied π‑calculus, enriched with functional terms that model cryptographic primitives via an equational theory.

In the calculus, terms are built from names, variables, constructors (e.g., encryption) and destructors (e.g., decryption). An equational theory provides rewrite rules such as dec(enc(x, y), y) = x. The Dolev‑Yao attacker’s knowledge is captured by the DY‑closure F(ψ), the smallest set containing ψ and closed under constructor application and destructor reduction. Knowledge derivation (ψ ⊢ φ) holds when every term in φ belongs to F(ψ).

The logic extends standard modal operators with spatial operators (parallel composition |, name restriction ν) and an epistemic operator knows. Formulas can express statements such as “process P and Q eventually know a secret v while the rest of the system never learns v”, using a combination of always, eventually, and spatial counting operators. The authors prove that DSEL is sound, complete, and decidable for passive attackers, meaning that any property about what a passive adversary can infer is expressible and checkable in the logic.

A major contribution is the systematic internalisation of a generic Dolev‑Yao attacker. For any deterministic finite protocol, the paper shows how to automatically generate a process Attacker(Sys) that behaves exactly like the classic Dolev‑Yao environment, without requiring the analyst to manually encode specific attacks. This attacker process uses a special “attacker output” prefix that nondeterministically emits any term derivable from the attacker’s current knowledge. The construction relies on extracting relevant ground subterms from the protocol processes, eliminating variables and destructors, and then feeding the resulting term set to the attacker output.

The authors also present a model‑checking algorithm for DSEL. The algorithm explores the transition system induced by the process calculus while simultaneously computing DY‑closures for each reachable configuration to evaluate knows sub‑formulas. Spatial operators guide the exploration by allowing the checker to focus on particular subsystems. The algorithm is implemented as an extension to the SLMC (Spatial Logic Model Checker) tool, yielding the first proof‑of‑concept model checker that supports both spatial and epistemic reasoning for security protocols.

To demonstrate the approach, the paper models a simple key‑distribution and secret‑exchange protocol involving three agents: a server S, a client P, and a client Q. The system is composed as Sys = P | Q | S. An attacker process is added, yielding World = Sys | Attacker(Sys). The property pqK is defined to require that (i) eventually both P and Q know the secret value v while the attacker and the server do not, and (ii) throughout all executions there are at least two agents that never know v. The model checker verifies that the protocol violates pqK, exposing a concrete knowledge leak.

The paper’s technical contributions can be summarised as follows:

1. Process calculus: A lightweight variant of the applied π‑calculus that cleanly separates constructors and destructors, enabling precise modeling of cryptographic operations.
2. Dynamic spatial‑epistemic logic: A logic that simultaneously reasons about temporal evolution, spatial partitioning, and epistemic states, with proven soundness, completeness, and decidability for passive attackers.
3. Automatic attacker synthesis: A constructive method to generate a generic Dolev‑Yao attacker for any finite deterministic protocol, eliminating the need for manual adversary modeling.
4. Model‑checking algorithm and tool: An algorithm that integrates DY‑closure computation with spatial logic model checking, implemented in the SLMC framework, and validated on illustrative protocol examples.

Limitations are acknowledged: the current implementation handles only deterministic finite protocols; extending the approach to non‑deterministic or infinite‑state protocols would require additional techniques (e.g., abstraction, symbolic reasoning). Moreover, the computation of DY‑closures can become expensive for large equational theories, suggesting future work on optimisation and scalability.

Overall, the paper offers a compelling synthesis of process calculi, spatial logics, and epistemic reasoning, providing a powerful and expressive framework for security protocol verification that goes beyond traditional type‑based or reachability analyses.
