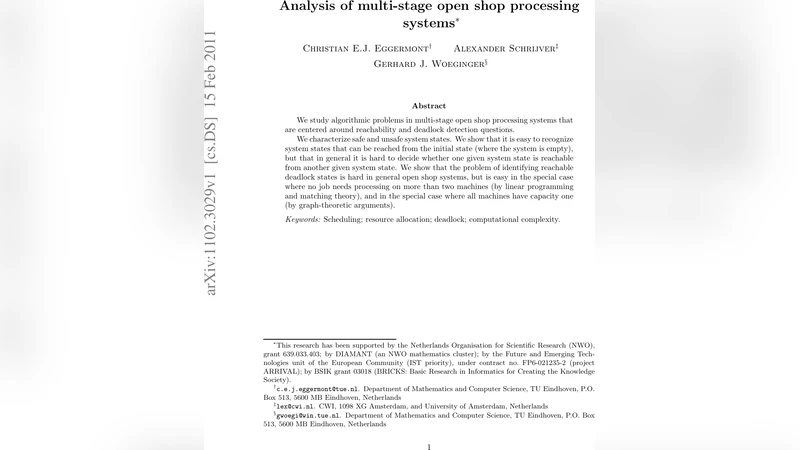

Analysis of multi-stage open shop processing systems

We study algorithmic problems in multi-stage open shop processing systems that are centered around reachability and deadlock detection questions. We characterize safe and unsafe system states. We show that it is easy to recognize system states that can be reached from the initial state (where the system is empty), but that in general it is hard to decide whether one given system state is reachable from another given system state. We show that the problem of identifying reachable deadlock states is hard in general open shop systems, but is easy in the special case where no job needs processing on more than two machines (by linear programming and matching theory), and in the special case where all machines have capacity one (by graph-theoretic arguments).

💡 Research Summary

The paper investigates fundamental algorithmic questions arising in multi‑stage open‑shop processing systems, focusing on three central themes: (1) the classification of system states as safe or unsafe, (2) the reachability of states from the empty (initial) configuration, and (3) the possibility of entering a deadlock. An open‑shop system consists of n jobs and m machines; each job Jj requires processing on a prescribed subset M(Jj) of the machines, but the order of visits is unrestricted. Machine Mi has a capacity cap(Mi) indicating how many jobs it can host simultaneously. Jobs move autonomously: they awaken, request a machine they still need, receive permission from a central controller, occupy a slot on the chosen machine, and after processing either request another needed machine or leave the system via an artificial final machine with unlimited capacity.

Four decision problems are defined:

1. Safe‑State Recognition – Given a state s, does there exist a continuation that eventually reaches the final state f (all jobs completed)?
2. Reachable‑State Recognition – Starting from the empty initial state 0, can a given state s be reached?
3. State‑to‑State Reachability – Given two arbitrary states s and t, can the system evolve from s to t?
4. Reachable‑Deadlock – Starting from 0, is there any reachable state that is a deadlock (no successor and not the final state)?

The authors first introduce the notion of a blocking set of machines. A set B of machines is blocking in state s if (i) every machine in B is at full capacity, and (ii) every job currently occupying a machine in B still needs only machines that belong to B. They prove that a state is unsafe (i.e., inevitably leads to a deadlock) iff it contains a blocking set. This characterization yields a simple polynomial‑time algorithm: construct a directed graph whose vertices are the machines and whose arcs represent “a job on Mi may move to Mj”. A blocking set corresponds to a strongly connected component in which all vertices are full and no arc leaves the component. Strongly connected components can be found in linear time, so safe‑state recognition is in P.

For the reachability from the initial state, the paper employs a clever reverse‑time transformation. Given a candidate state s, they define an artificial state t that swaps the “already processed” part of each job with the “remaining” part. Formally, for each job Jj, set Mt(Jj)=Ms(Jj) (the machine where the job currently resides) and M′t(Jj)=M(Jj)−Ms(Jj)−{Ms(Jj)} (the machines still to be processed after swapping). They prove that s is reachable from 0 iff t is safe. Consequently, the polynomial‑time algorithm for safe‑state recognition also solves Reachable‑State Recognition.

The situation changes dramatically for State‑to‑State Reachability. By a polynomial reduction from SAT (or 3‑SAT), the authors show that deciding whether a given state t can be reached from a given state s is NP‑hard. Hence, in the general multi‑stage open‑shop model, there is unlikely to be an efficient algorithm for arbitrary state‑to‑state reachability.

The paper then turns to the Reachable‑Deadlock problem. It proves that, in general, determining whether any deadlock state is reachable from the empty configuration is also NP‑hard, even when each machine’s capacity is at most three and each job requires at most four machines. Nevertheless, two important restricted cases admit polynomial‑time solutions:

• Jobs needing at most two machines: The system can be modeled as a bipartite matching problem. By formulating a linear program that captures capacity constraints and the requirement that each job be matched to its two machines, one can solve the LP in polynomial time and use matching theory to decide deadlock reachability.

• All machines have unit capacity (cap(Mi)=1): The system reduces to an edge‑colored graph where colors correspond to jobs. A deadlock exists precisely when there is a directed cycle that respects the coloring constraints. Detecting such cycles can be done with depth‑first search in linear time.

Overall, the paper provides a clear dichotomy: safety and reachability from the empty state are tractable, while arbitrary state‑to‑state reachability and deadlock detection are intractable in the general model but become tractable under natural structural restrictions (few machines per job or unit capacities). The blocking‑set characterization and the reverse‑time construction are elegant tools that could be directly applied in real‑time scheduling controllers for robotic cells, flexible manufacturing systems, and other automated production environments where deadlock avoidance is critical. The results also guide system designers: by limiting the number of machines a job may visit or by enforcing unit capacities, one can guarantee that crucial verification problems remain efficiently solvable.
