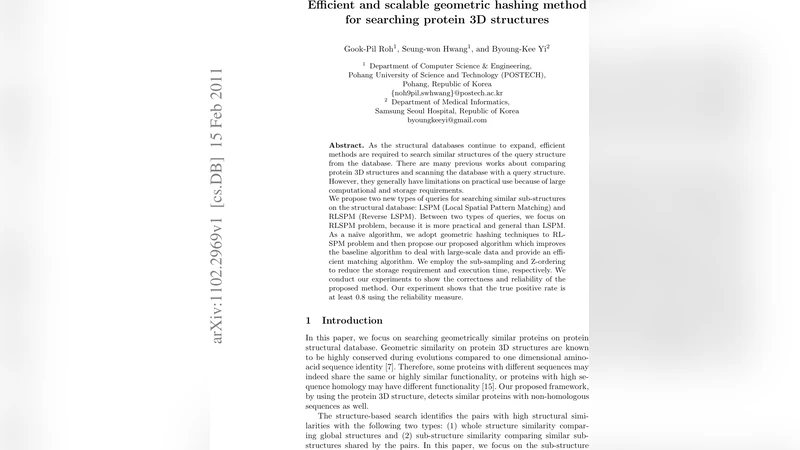

Efficient and scalable geometric hashing method for searching protein 3D structures

As the structural databases continue to expand, efficient methods are required to search similar structures of the query structure from the database. There are many previous works about comparing protein 3D structures and scanning the database with a query structure. However, they generally have limitations on practical use because of large computational and storage requirements. We propose two new types of queries for searching similar sub-structures on the structural database: LSPM (Local Spatial Pattern Matching) and RLSPM (Reverse LSPM). Between two types of queries, we focus on RLSPM problem, because it is more practical and general than LSPM. As a naive algorithm, we adopt geometric hashing techniques to RLSPM problem and then propose our proposed algorithm which improves the baseline algorithm to deal with large-scale data and provide an efficient matching algorithm. We employ the sub-sampling and Z-ordering to reduce the storage requirement and execution time, respectively. We conduct our experiments to show the correctness and reliability of the proposed method. Our experiment shows that the true positive rate is at least 0.8 using the reliability measure.

💡 Research Summary

The paper addresses the problem of efficiently searching for functionally relevant sub‑structures (patches) within massive protein 3‑D structure repositories. Two query paradigms are defined: Local Spatial Pattern Matching (LSPM), where a small user‑defined patch is the query, and Reverse LSPM (RLSPM), where the whole protein serves as the query against a database of patches. The authors argue that RLSPM is both more practical—because it does not require prior knowledge of meaningful patches—and more general, as a solution to RLSPM can be reused for LSPM.

A naïve application of geometric hashing (GH) to RLSPM would generate a coordinate system (CS) for every possible triple of atoms, leading to O(n⁴) space and time complexity for a protein with n atoms. To overcome this, the authors propose two key optimizations:

1. Residue‑level sub‑sampling – For each amino‑acid residue they select only three backbone atoms (Cα, N, C) to define a single CS, assigning it a unique reference identifier (rfid). This reduces the number of CSs from combinatorial O(n³) to the number of residues (m), cutting the space requirement to O(n·m).

2. Disk‑based GH table with Z‑order (Morton) sorting – Cells of the GH table are stored on secondary storage and ordered by a Z‑value obtained by interleaving the binary representations of the cell’s x, y, z indices. This linear ordering enables a single sequential scan of both the query and database tables, dramatically reducing random I/O and allowing the method to scale beyond main‑memory limits.

During the matching phase, a GH table for the query protein (Gq) is built using the same sub‑sampling scheme, but only atoms within a radius Pmax (the size of the largest patch) are considered. The database GH table (Gp) and Gq are simultaneously streamed in Z‑order. When cells share the same Z‑value, the algorithm updates a temporary score table by adding the number of atoms that share the same rfid in the overlapping cells. The final matching score for a (patch rfid, query rfid) pair is defined as the ratio of overlapped cells to the total number of cells in the patch. A user‑defined threshold S_patch filters out low‑scoring pairs; an additional structural similarity threshold S_pro removes redundant matches between highly similar proteins.

The authors constructed a Protein Patch Database (PPD) by extracting functional regions from the Protein Data Bank (PDB) and the Catalytic Site Atlas (CSA). From PDB they gathered 9,206 patches annotated in the “SITE” records; from CSA they added 113 non‑redundant patches derived from Ca/Cb atom templates. To evaluate reliability, they employed a “keyword recovery” metric commonly used in protein‑protein interaction validation. This metric compares Gene Ontology keywords of the query protein and the source protein of a matched patch, computing a true‑positive (TP) rate as (D‑R)/(I‑R) with I set to 1. Experiments on both annotated and non‑annotated proteins showed TP rates of at least 0.8, demonstrating that the method can retrieve biologically meaningful matches despite the aggressive sub‑sampling.

Key contributions of the work are:

• Formulation of the RLSPM problem and justification of its practical relevance.
• An enhanced geometric‑hashing pipeline that combines residue‑level sub‑sampling, disk‑based storage, and Z‑order indexing to achieve scalability.
• A cell‑based matching score that can be tuned via cell size and threshold parameters.
• Empirical validation on a large, realistic dataset showing high reliability and acceptable performance.

Limitations include the dependence on manually chosen parameters (cell size δ, S_patch, S_pro) and the fact that the current evaluation relies on indirect keyword similarity rather than experimental validation of functional equivalence. Future directions suggested are automatic parameter optimization, integration of more sophisticated scoring functions (e.g., incorporating physicochemical properties), and application of the framework to drug‑design pipelines where rapid identification of functional motifs across thousands of structures is critical.
