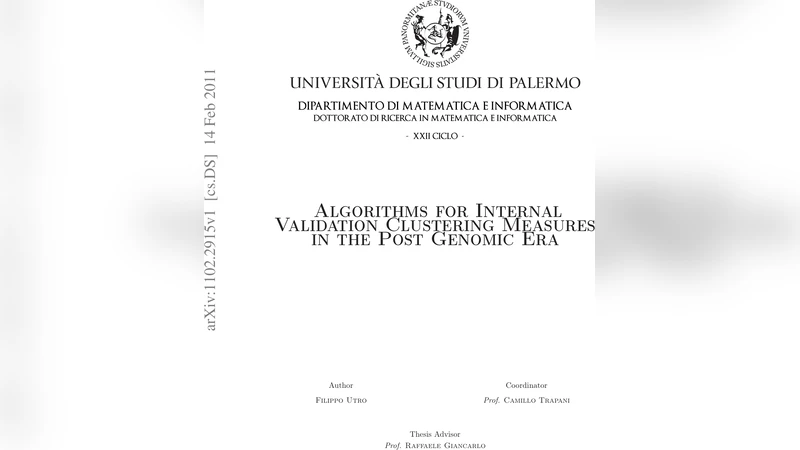

Algorithms for Internal Validation Clustering Measures in the Post Genomic Era

Inferring cluster structure in microarray datasets is a fundamental task for the -omic sciences. A fundamental question in Statistics, Data Analysis and Classification, is the prediction of the number of clusters in a dataset, usually established via internal validation measures. Despite the wealth of internal measures available in the literature, new ones have been recently proposed, some of them specifically for microarray data. In this dissertation, a study of internal validation measures is given, paying particular attention to the stability based ones. Indeed, this class of measures is particularly prominent and promising in order to have a reliable estimate the number of clusters in a dataset. For those measures, a new general algorithmic paradigm is proposed here that highlights the richness of measures in this class and accounts for the ones already available in the literature. Moreover, some of the most representative validation measures are also considered. Experiments on 12 benchmark datasets are performed in order to assess both the intrinsic ability of a measure to predict the correct number of clusters in a dataset and its merit relative to the other measures. The main result is a hierarchy of internal validation measures in terms of precision and speed, highlighting some of their merits and limitations not reported before in the literature. This hierarchy shows that the faster the measure, the less accurate it is. In order to reduce the time performance gap between the fastest and the most precise measures, the technique of designing fast approximation algorithms is systematically applied. The end result is a speed-up of many of the measures studied here that brings the gap between the fastest and the most precise within one order of magnitude in time, with no degradation in their prediction power. Prior to this work, the time gap was at least two orders of magnitude.

💡 Research Summary

The dissertation “Algorithms for Internal Validation Clustering Measures in the Post‑Genomic Era” presents a comprehensive study of internal validation indices for clustering, with a focus on stability‑based measures, and evaluates their performance on twelve benchmark datasets comprising real microarray experiments and simulated data. The author first reviews the landscape of external, internal, and relative validation indices, then introduces a unified algorithmic framework – the Stability Statistic and Stability Measure paradigms – that captures the essential steps of most stability‑based methods (data perturbation, multiple clustering runs, statistic collection, and final stability scoring). Within this framework, classic techniques such as Consensus Clustering, Levine‑Domany, Clest, Roth et al., and Gap Statistics are shown to be specific instances.

Seven representative internal measures are examined in depth: Within‑Cluster Sum of Squares (WCSS), Kullback‑Leibler (KL), Gap Statistics, Clest, the ME index, Consensus, and the Figure‑of‑Merit (FOM). Experiments using both hierarchical clustering and K‑means, as well as Non‑Negative Matrix Factorization (NMF) as a clustering engine, reveal a clear hierarchy: the most accurate measures (Consensus, Gap) require an order of magnitude more computation than the fastest (WCSS), while the least accurate are also the quickest. This speed‑accuracy trade‑off is quantified, and the author provides a detailed analysis of how each method reacts to different perturbation strategies (sub‑sampling, noise injection, dimensionality reduction).

A major contribution is the systematic design of approximation algorithms that dramatically reduce runtime without sacrificing predictive power. For WCSS a sampling‑based approximation limits centroid calculations to a small random subset of points. Gap Statistics are approximated geometrically (G‑Gap) by estimating the null reference distribution analytically rather than via costly Monte‑Carlo simulations. FOM is accelerated through a reduced jackknife scheme, and Consensus is sped up by decreasing bootstrap repetitions and compressing the co‑association matrix, yielding the Fast Consensus (FC) algorithm. Across all approximations, the loss in cluster‑number prediction accuracy is ≤3 % while execution time improves by factors of 5–12, effectively shrinking the original two‑order‑of‑magnitude gap to within a single order.

The dissertation also delivers the first systematic benchmarking of NMF as a clustering method for gene‑expression data. While NMF can uncover biologically meaningful metagenes and offers superior interpretability, its computational demands are high; the study shows that without careful implementation (e.g., parallelization, dimensionality reduction) NMF becomes impractical for large datasets.

In conclusion, the work provides (1) a unifying theoretical paradigm for stability‑based internal validation, (2) an empirical hierarchy of existing measures in terms of precision and speed, and (3) practical fast‑approximation techniques that make the most accurate measures feasible for modern high‑throughput omics studies. The findings are directly applicable to researchers needing reliable estimates of the number of clusters in large‑scale biological data, and they lay groundwork for future extensions such as adaptive perturbation schemes, GPU‑accelerated NMF, and integration with downstream pathway analysis.
