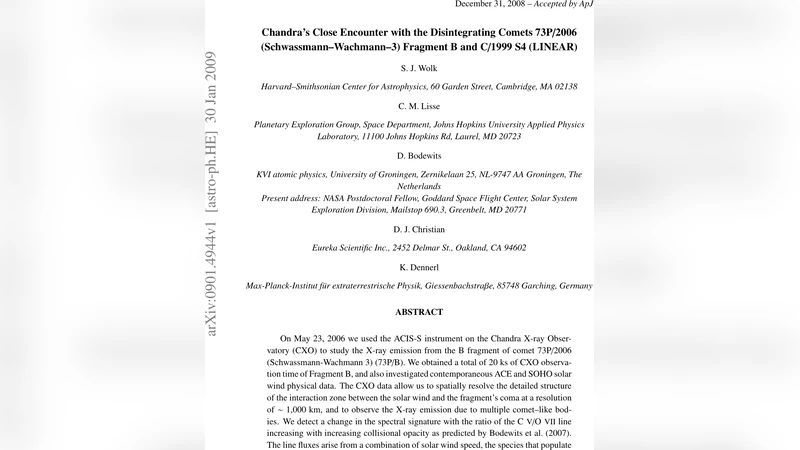

Chandras Close Encounter with the Disintegrating Comets 73P/2006 (Schwassmann--Wachmann--3) Fragment B and C/1999 S4 (LINEAR)

On May 23, 2006 we used the ACIS-S instrument on the Chandra X-ray Observatory (CXO) to study the X-ray emission from the B fragment of comet 73P/2006 (Schwassmann-Wachmann 3) (73P/B). We obtained a total of 20 ks of CXO observation time of Fragment B, and also investigated contemporaneous ACE and SOHO solar wind physical data. The CXO data allow us to spatially resolve the detailed structure of the interaction zone between the solar wind and the fragment’s coma at a resolution of ~ 1,000 km, and to observe the X-ray emission due to multiple comet–like bodies. We detect a change in the spectral signature with the ratio of the CV/OVII line increasing with increasing collisional opacity as predicted by Bodewits \e (2007). The line fluxes arise from a combination of solar wind speed, the species that populate the wind and the gas density of the comet. We are able to understand some of the observed X-ray morphology in terms of non-gravitational forces that act upon an actively outgassing comet’s debris field. We have used the results of the Chandra observations on the highly fragmented 73P/B debris field to re-analyze and interpret the mysterious emission seen from comet C/1999 S4 (LINEAR) on August 1st, 2000, after the comet had completely disrupted. We find the physical situations to be similar in both cases, with extended X-ray emission due to multiple, small outgassing bodies in the field of view. Nevertheless, the two comets interacted with completely different solar winds, resulting in distinctly different spectra.

💡 Research Summary

The authors present a detailed study of the X‑ray emission from comet 73P/2006 (Schwassmann‑Wachmann 3) fragment B, using a 20 ks observation with the ACIS‑S instrument aboard the Chandra X‑ray Observatory on 23 May 2006. By combining the high‑resolution (≈1 000 km) X‑ray imaging with contemporaneous solar‑wind measurements from ACE and SOHO, they resolve the interaction zone between the solar wind and the comet’s coma and identify the physical processes governing the observed emission.

The X‑ray spectrum is dominated by charge‑exchange (CX) lines of carbon (CV at ~0.3 keV) and oxygen (OVII at ~0.57 keV). The ratio of these lines varies systematically with the collisional opacity of the coma, exactly as predicted by the Bodewits et al. (2007) CX model: in dense inner regions the CV line strengthens relative to OVII, while in the more tenuous outer coma OVII dominates. Solar‑wind parameters derived from ACE/SOHO at the time of observation indicate a fast, hot wind (≈400 km s⁻¹, ion temperature 1–2 MK) with an O⁷⁺/O⁶⁺ ratio of ~0.15. This wind composition enhances CX efficiency, producing the bright X‑ray emission observed.

Fragment B was actively outgassing and surrounded by a swarm of small fragments (sub‑kilometer scale). The authors argue that each fragment creates its own localized CX region, leading to a composite X‑ray morphology that includes multiple brightness peaks and an overall asymmetric halo. By estimating non‑gravitational forces (gas drag, solar radiation pressure, electromagnetic forces) they find accelerations of order 10⁻⁴ m s⁻², sufficient to disperse fragments over several thousand kilometres during the observation window. This dynamical picture explains the observed spatial variations in line ratios and surface brightness.

To test the generality of their interpretation, the team re‑examined archival Chandra data of comet C/1999 S4 (LINEAR) taken on 1 August 2000, shortly after the comet’s complete disintegration. Although the LINEAR debris field also consisted of numerous small outgassing bodies, the solar‑wind conditions were markedly different (≈300 km s⁻¹, O⁷⁺/O⁶⁺ ~0.05). Consequently, the LINEAR spectrum is dominated by OVII with a comparatively weak CV component, confirming that the CX line ratios are highly sensitive to the upstream wind composition as well as to the cometary gas density.

The paper’s principal conclusions are: (1) high‑resolution X‑ray imaging can directly map the CX interaction zone around fragmented comets; (2) CX line ratios serve as diagnostics of both solar‑wind ion composition and cometary gas column density; (3) a cloud of small fragments produces an extended, multi‑source X‑ray halo that cannot be described by a single‑nucleus model; and (4) non‑gravitational forces play a crucial role in shaping the spatial distribution of fragments and thus the observed X‑ray morphology.

These findings have broad implications for cometary physics and solar‑wind studies. They demonstrate that fragmented comets provide natural laboratories for probing CX processes under varying plasma conditions, and they highlight the need for coordinated multi‑wavelength observations (UV, X‑ray, IR) combined with magnetohydrodynamic simulations to fully capture the complex interplay of outgassing, fragment dynamics, and solar‑wind interaction. Future missions with improved spatial resolution and faster temporal coverage will be able to track the evolution of such debris fields in real time, offering deeper insight into the microphysics of charge exchange and the role of cometary fragmentation in shaping the near‑Sun plasma environment.
