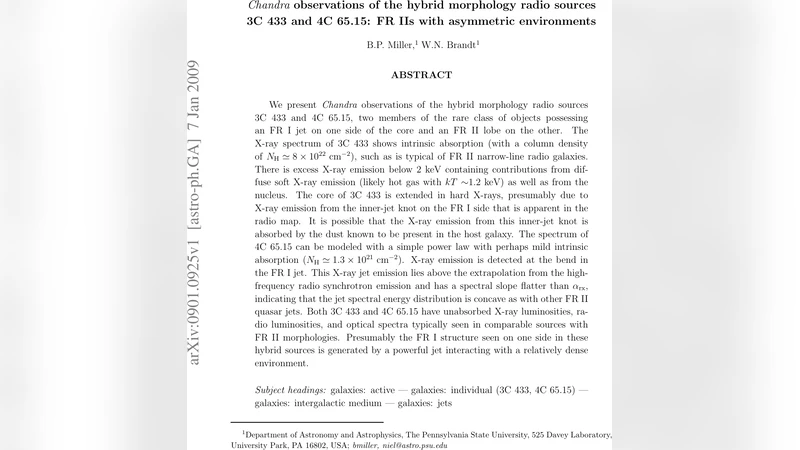

Chandra observations of the hybrid morphology radio sources 3C 433 and 4C 65.15: FR IIs with asymmetric environments

We present Chandra observations of the hybrid morphology radio sources 3C 433 and 4C 65.15, two members of the rare class of objects possessing an FR I jet on one side of the core and an FR II lobe on the other. The X-ray spectrum of 3C 433 shows intrinsic absorption (with a column density of N_H=8e22 cm-2), such as is typical of FR II narrow-line radio galaxies. There is excess X-ray emission below 2 keV containing contributions from diffuse soft X-ray emission (likely hot gas with kT~1.2 keV) as well as from the nucleus. The core of 3C 433 is extended in hard X-rays, presumably due to X-ray emission from the inner-jet knot on the FR I side that is apparent in the radio map. It is possible that the X-ray emission from this inner-jet knot is absorbed by the dust known to be present in the host galaxy. The spectrum of 4C 65.15 can be modeled with a simple power law with perhaps mild intrinsic absorption (N_H=1.3e21 cm-2). X-ray emission is detected at the bend in the FR I jet. This X-ray jet emission lies above the extrapolation from the high-frequency radio synchrotron emission and has a spectral slope flatter than alpha_rx, indicating that the jet spectral energy distribution is concave as with other FR II quasar jets. Both 3C 433 and 4C 65.15 have unabsorbed X-ray luminosities, radio luminosities, and optical spectra typically seen in comparable sources with FR II morphologies. Presumably the FR I structure seen on one side in these hybrid sources is generated by a powerful jet interacting with a relatively dense environment.

💡 Research Summary

This paper presents deep Chandra X‑ray observations of two rare hybrid‑morphology radio sources, 3C 433 (z ≈ 0.102) and 4C 65.15 (z ≈ 1.175). Hybrid sources display an FR II‑type lobe on one side of the active nucleus and an FR I‑type jet on the opposite side, a configuration that challenges the simple dichotomy between the two Fanaroff‑Riley classes. The authors obtained ∼30 ks and ∼40 ks ACIS‑S exposures for 3C 433 and 4C 65.15, respectively, and reduced the data with CIAO, applying standard background subtraction, exposure correction, and spectral extraction techniques. Complementary VLA radio maps at 1.4 GHz and 5 GHz were used to locate the jet knots and to compare radio and X‑ray morphologies.

For 3C 433 the nuclear X‑ray spectrum requires a heavily absorbed power‑law component (intrinsic column density N_H ≈ 8 × 10^22 cm⁻², photon index Γ ≈ 1.6), typical of narrow‑line FR II radio galaxies. Below 2 keV an excess of soft emission is present. Spectral fitting shows that this excess can be modeled as a combination of thermal plasma emission (kT ≈ 1.2 keV) and a less‑absorbed nuclear component. The thermal component likely traces hot gas surrounding the host galaxy, possibly the intragroup medium. In the hard‑band image the core appears elongated toward the FR I side, coincident with the inner jet knot (knot A) seen in the radio map. This knot emits X‑rays, suggesting that the jet itself contributes to the hard X‑ray flux. The knot’s X‑ray spectrum shows a column density comparable to that of the nucleus, implying that the jet emission may be partially obscured by the dusty lane known from optical/IR imaging.

The spectrum of 4C 65.15 is well described by a simple power law (Γ ≈ 1.7) with only mild intrinsic absorption (N_H ≈ 1.3 × 10^21 cm⁻²). The FR I‑type jet bends sharply about 3 arcsec from the core. At this bend, X‑ray emission is detected. The X‑ray flux lies above the extrapolation of the high‑frequency radio synchrotron spectrum, and the radio‑to‑X‑ray spectral index (α_rx) is flatter than expected for a single‑component synchrotron model. This concave spectral energy distribution mirrors that seen in many FR II quasar jets, indicating ongoing high‑energy particle acceleration in the jet knot.

Both sources have unabsorbed X‑ray luminosities (L_X ≈ 10^44 erg s⁻¹ for 3C 433, ≈ 10^45 erg s⁻¹ for 4C 65.15) and radio powers consistent with typical FR II objects. Their optical spectra also resemble those of standard FR II galaxies and quasars. Consequently, the hybrid appearance is not due to a weak jet on the FR I side but rather to the interaction of a powerful FR II‑level jet with an asymmetric external medium. In 3C 433 the FR I side encounters denser, hotter gas, causing deceleration, diffusion, and the formation of an FR I‑type jet, while the opposite side propagates into a lower‑density environment and forms a classic FR II hotspot. In 4C 65.15 the jet bend and associated X‑ray knot likely arise from a localized density enhancement that deflects the flow.

The authors conclude that hybrid‑morphology sources provide a natural laboratory for studying jet‑environment interactions. The X‑ray data demonstrate that the underlying jet power remains FR II‑like, and that environmental asymmetries can sculpt the observed radio morphology. Future high‑resolution, multi‑wavelength observations (e.g., deeper Chandra exposures, VLBI radio imaging, and integral‑field optical spectroscopy) will be essential to map the density distribution of the surrounding medium and to quantify the physical processes—such as shock heating, entrainment, and particle acceleration—that give rise to the hybrid structures.
