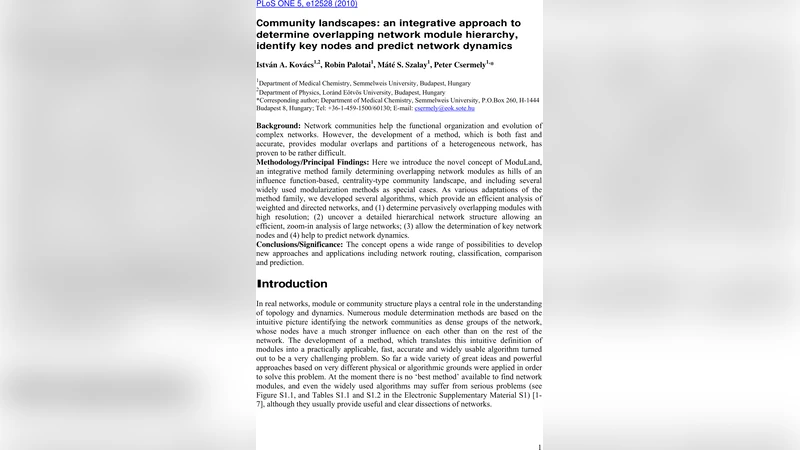

Community landscapes: an integrative approach to determine overlapping network module hierarchy, identify key nodes and predict network dynamics

Background: Network communities help the functional organization and evolution of complex networks. However, the development of a method, which is both fast and accurate, provides modular overlaps and partitions of a heterogeneous network, has proven to be rather difficult. Methodology/Principal Findings: Here we introduce the novel concept of ModuLand, an integrative method family determining overlapping network modules as hills of an influence function-based, centrality-type community landscape, and including several widely used modularization methods as special cases. As various adaptations of the method family, we developed several algorithms, which provide an efficient analysis of weighted and directed networks, and (1) determine pervasively overlapping modules with high resolution; (2) uncover a detailed hierarchical network structure allowing an efficient, zoom-in analysis of large networks; (3) allow the determination of key network nodes and (4) help to predict network dynamics. Conclusions/Significance: The concept opens a wide range of possibilities to develop new approaches and applications including network routing, classification, comparison and prediction.

💡 Research Summary

The paper introduces ModuLand, an integrative framework for detecting overlapping modules (communities) in complex networks and for constructing hierarchical representations of those modules. The central concept is to compute an “influence function” for each node or link, which quantifies how strongly that element affects the rest of the network. Two basic algorithms are described for this purpose: NodeLand, which starts from a single node and iteratively expands a set of nodes while maximizing a density measure (total weight of internal links divided by the number of nodes), and LinkLand, which starts from a link and treats its two end‑nodes as the initial set, also taking the weight of the starting link into account. Both procedures are essentially breadth‑first searches; in practice the influence zone of a seed rarely covers the whole graph, making the calculations fast (worst‑case O(n·(n+e)) for NodeLand and O(e·(n+e)) for LinkLand, where n is the number of nodes and e the number of edges).

After all influence functions f_i (for each seed i) are obtained, they are summed over each edge to produce a centrality value c(i,j)=∑_k f_k(i,j). Plotting these centralities as a vertical axis over a 2‑D layout of the network yields a “community landscape”. Peaks of this landscape correspond to module cores, while the surrounding lower regions correspond to peripheral parts of the modules.

Modules are extracted from the landscape in two complementary ways. The first is a threshold‑based method: a user‑defined centrality cut‑off defines connected components above the cut‑off, producing non‑overlapping modules (similar to Girvan‑Newman). The second is a local‑maxima approach: each local peak (hill‑top) is taken as a module seed, and the module is grown outward using one of three hill‑extension schemes. The ProportionalHill method propagates membership values proportionally to the membership of higher‑centrality neighboring links; it runs in O(e·d·M) time (d = average degree, M = number of modules) and provides a fast, reasonably accurate overlapping partition. The GradientHill method adjusts membership based on the gradient of centrality, allowing finer control of overlap size. The TotalHill method solves a system of linear equations for each module, incorporating contributions from lower‑centrality neighbors; it yields the most detailed overlap information but at a higher computational cost (O(M·n³)).

Having obtained node‑wise and link‑wise membership values H_i^m, the authors construct a higher‑level network where each node represents a module and each link encodes the overlap strength between two modules. Overlap strength O_{ij}(n) for a given lower‑level node n is defined as (c_n·H_i^n·H_j^n)/c_n·2, i.e., proportional to the product of the two modules’ memberships normalized by the node’s centrality. By recursively applying the same ModuLand procedure to this meta‑network, a full hierarchy of modules is generated until the whole system collapses into a single super‑node. This hierarchy enables multi‑scale analysis and reveals how small functional groups aggregate into larger functional domains.

The authors validate ModuLand on several real‑world networks: a co‑authorship network of “network science” researchers, a biological signaling network, and synthetic benchmark graphs. In the co‑authorship case, the algorithm highlights well‑known prolific authors as high‑centrality seeds and uncovers overlapping research clusters that correspond to interdisciplinary collaborations. In the signaling network, key proteins receive high influence scores, and overlapping modules reflect cross‑talk between pathways. Compared with established methods such as Girvan‑Newman, Clique Percolation, and the Nepusz overlap quality optimization, ModuLand consistently yields higher resolution of overlaps, respects edge weights and directionality, and provides a natural hierarchical decomposition.

Key advantages of ModuLand are: (1) a physically interpretable influence‑based definition of community, (2) ability to handle weighted and directed graphs, (3) natural treatment of overlapping modules without ad‑hoc post‑processing, (4) a built‑in mechanism for hierarchical abstraction, and (5) relatively simple algorithms that can be implemented efficiently. Limitations include the computational intensity of the TotalHill variant for very large networks and the need for user‑defined parameters (centrality threshold or choice of hill‑extension method). The authors suggest using ProportionalHill for most large‑scale applications and reserving TotalHill for smaller, high‑precision studies.

In conclusion, ModuLand offers a versatile, influence‑function driven framework that unifies community detection, overlap quantification, and hierarchical network abstraction. Its capacity to identify key nodes, predict dynamical behavior (e.g., spreading processes) and support applications such as routing, classification, and network comparison makes it a valuable addition to the toolbox of network scientists and practitioners across biology, sociology, and engineering.
