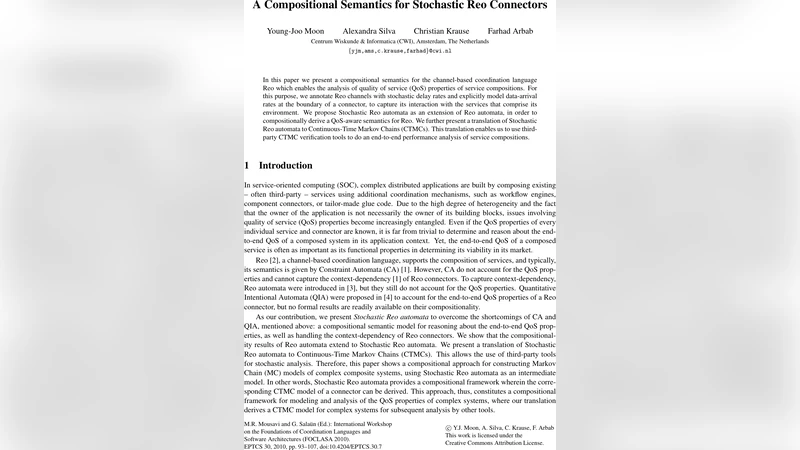

A Compositional Semantics for Stochastic Reo Connectors

In this paper we present a compositional semantics for the channel-based coordination language Reo which enables the analysis of quality of service (QoS) properties of service compositions. For this purpose, we annotate Reo channels with stochastic delay rates and explicitly model data-arrival rates at the boundary of a connector, to capture its interaction with the services that comprise its environment. We propose Stochastic Reo automata as an extension of Reo automata, in order to compositionally derive a QoS-aware semantics for Reo. We further present a translation of Stochastic Reo automata to Continuous-Time Markov Chains (CTMCs). This translation enables us to use third-party CTMC verification tools to do an end-to-end performance analysis of service compositions.

💡 Research Summary

The paper addresses a long‑standing gap in the Reo coordination language: the inability to reason about quantitative quality‑of‑service (QoS) attributes such as latency, throughput, and reliability within its existing formal semantics. Reo models systems as networks of channels (synchronous, asynchronous, FIFO, etc.) and captures their behavior using Reo automata, which are essentially nondeterministic state machines that record which data flows are possible. While powerful for functional correctness, traditional Reo automata lack any notion of time or stochasticity, making them unsuitable for performance analysis of service‑oriented compositions that must meet strict SLAs.

To remedy this, the authors introduce two stochastic parameters for every Reo channel. The first is a delay rate, representing the exponential rate at which data traverses the channel; mathematically this is the reciprocal of the expected processing time and can be directly interpreted as a transition rate in a continuous‑time Markov chain (CTMC). The second is an arrival rate that models the Poisson‑like injection of data at the connector’s boundary, thereby capturing the interaction with external services. By annotating channels with these rates, the authors obtain a richer, quantitative description of the connector’s interface with its environment.

Building on these annotated channels, the paper defines Stochastic Reo automata, an extension of ordinary Reo automata. The state space and transition structure remain unchanged, but each transition now carries a pair of stochastic labels (delay and arrival rates). Crucially, the authors prove that Stochastic Reo automata are compositional: the parallel composition and sequential wiring of two automata can be performed by simple algebraic operations on their transition matrices (tensor product and Markovian product). This guarantees that the QoS characteristics of a large connector can be derived systematically from its constituent parts without re‑modeling the whole system from scratch.

The next major contribution is a translation algorithm that maps any Stochastic Reo automaton to an equivalent CTMC. Delay rates become CTMC transition rates, while arrival rates generate external input transitions. The algorithm distinguishes synchronized transitions (where multiple ports must fire together) from asynchronous ones, preserving the exact semantics of Reo’s coordination constraints. Because the naïve translation can explode the state space, the authors incorporate several reduction techniques: (i) lumpability based on symmetry of ports, (ii) bisimulation minimisation, and (iii) partial‑order reduction that exploits the independence of concurrently enabled actions. These optimisations keep the resulting CTMC tractable for realistic connectors.

Once a CTMC is obtained, the model can be fed into off‑the‑shelf probabilistic model checkers such as PRISM or MRMC. The authors demonstrate how to query standard QoS metrics: expected response time, steady‑state availability, throughput, and probability of deadline violation. In a case study involving a composite web service with load‑balancing and retry mechanisms, the stochastic Reo model predicts latency distributions that closely match empirical measurements, while a purely functional Reo model would be silent on such aspects.

The paper’s contributions can be summarised as follows:

1. Stochastic extension of Reo channels with delay and arrival rates, enabling quantitative modelling of service interactions.
2. Stochastic Reo automata, a compositional semantic framework that preserves Reo’s algebraic wiring discipline while adding probabilistic information.
3. A systematic CTMC translation equipped with state‑space reduction strategies, bridging the gap between high‑level Reo specifications and low‑level performance analysis tools.
4. End‑to‑end validation through integration with existing CTMC verification tools, showing that the approach scales to realistic service compositions and yields actionable QoS insights.

Overall, the work transforms Reo from a purely functional coordination language into a performance‑aware design methodology, allowing architects to verify that their service compositions not only behave correctly but also meet stringent QoS requirements before deployment.
