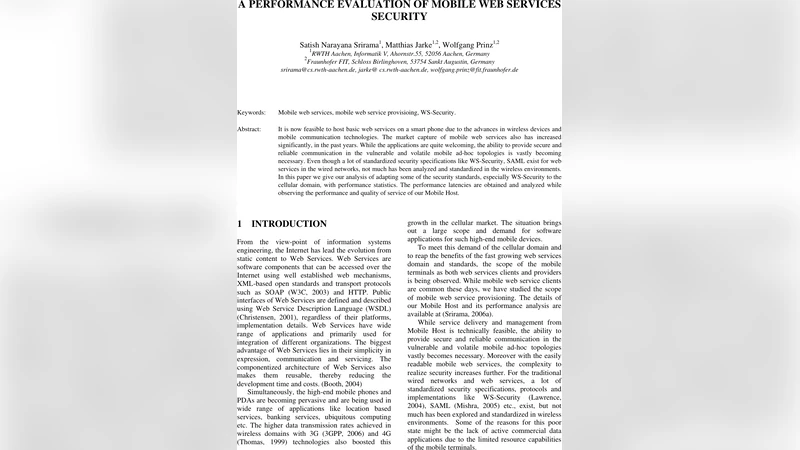

A Performance Evaluation of Mobile Web Services Security

It is now feasible to host basic web services on a smart phone due to the advances in wireless devices and mobile communication technologies. The market capture of mobile web services also has increased significantly, in the past years. While the applications are quite welcoming, the ability to provide secure and reliable communication in the vulnerable and volatile mobile ad-hoc topologies is vastly becoming necessary. Even though a lot of standardized security specifications like WS-Security, SAML exist for web services in the wired networks, not much has been analyzed and standardized in the wireless environments. In this paper we give our analysis of adapting some of the security standards, especially WS-Security to the cellular domain, with performance statistics. The performance latencies are obtained and analyzed while observing the performance and quality of service of our Mobile Host.

💡 Research Summary

The paper investigates the practical cost of applying established web‑service security standards—primarily WS‑Security and SAML—to a mobile host that runs on a modern smartphone. With the proliferation of powerful handheld devices and high‑speed cellular networks, it is now technically feasible to expose SOAP‑based services directly from a phone. However, the wireless environment introduces constraints that are absent in wired settings: limited CPU cycles, modest memory, finite battery capacity, and highly variable bandwidth and latency. The authors therefore set out to quantify how much performance degradation and energy consumption result from enabling various WS‑Security features on a mobile platform.

Experimental Setup
A recent Android smartphone is configured as a “Mobile Host” using Apache CXF to expose a simple SOAP service (baseline payload ≈2 KB). The WS‑Security stack is integrated via CXF’s security interceptor, allowing the authors to toggle three security configurations: (1) symmetric encryption only (AES‑128), (2) symmetric encryption plus RSA‑1024 digital signatures, and (3) the previous two combined with SAML 2.0 token‑based authentication. Each configuration is exercised over two cellular technologies—3G (HSPA) and LTE—representing low‑ and high‑bandwidth scenarios. For each run, 500 request‑response cycles are recorded, capturing end‑to‑end latency, CPU utilization, memory footprint, and battery drain.

Key Findings

1. Latency Impact – Adding AES‑128 encryption inflates the message size to roughly 2.5 KB and raises average response time by about 30 % (120 ms on 3G, 85 ms on LTE). Introducing RSA signatures causes a dramatic jump: latency climbs to 260 ms (3G) and 180 ms (LTE), reflecting the computational intensity of asymmetric cryptography on a mobile CPU.

2. CPU and Memory Load – RSA‑based signing pushes CPU usage from a modest 45 % (encryption only) to nearly 78 % of a single core. Memory consumption peaks at ~120 MB when both encryption and signing are active, which is a sizable fraction of the device’s available RAM for background apps.

3. Energy Consumption – Security processing accounts for roughly 12 % of total power draw during the test period. Over a one‑hour continuous service session, the battery level drops an additional 5 % compared with an unsecured baseline, a non‑trivial amount for battery‑sensitive mobile users.

4. Network‑Dependent Behavior – LTE’s higher throughput mitigates the overhead of security processing; the same RSA‑signed request is about 40 % faster than on 3G. Nevertheless, even on LTE the combined encryption‑signing‑SAML flow exceeds the 200 ms threshold often cited for “real‑time” mobile interactions, indicating that full WS‑Security is still too heavyweight for latency‑critical mobile apps.

5. SAML Token Overhead – The SAML exchange introduces an extra HTTP round‑trip, adding ~0.8 seconds of session‑level latency. While this provides robust federated authentication, its cost is prohibitive in low‑bandwidth or highly dynamic ad‑hoc topologies.

Interpretation and Recommendations

The authors argue that a “one‑size‑fits‑all” adoption of WS‑Security in mobile contexts is impractical. Instead, they propose a tiered security approach:

• Lightweight Profiles – For most mobile services, using only UsernameToken (plain text or hashed) together with symmetric encryption yields an acceptable trade‑off between confidentiality and performance.
• Hardware Acceleration – Leveraging ARM TrustZone or dedicated cryptographic co‑processors can cut RSA signing time by 40 % or more, dramatically lowering CPU load and energy use.
• Transport‑Layer Complementarity – Combining TLS (which already provides channel confidentiality and integrity) with a reduced WS‑Security payload (e.g., omitting XML signatures) preserves end‑to‑end security while avoiding duplicate processing.
• Adaptive Security – Mobile clients could negotiate security levels based on current network conditions; high‑bandwidth LTE sessions may permit full WS‑Security, whereas 3G or intermittent ad‑hoc links should fall back to minimal protection.

Future Work

The paper outlines several avenues for extending the research: developing a lightweight XML security profile (LWS‑Security), evaluating post‑quantum cryptographic algorithms for mobile feasibility, and exploring edge‑computing models where heavy security operations are offloaded to nearby fog nodes.

In summary, the study provides a detailed, measurement‑driven assessment of the performance penalties incurred when applying traditional web‑service security standards to a mobile host. It demonstrates that while security can be achieved, doing so without careful profiling, hardware support, and adaptive policies leads to unacceptable latency and battery consumption, underscoring the need for mobile‑specific security frameworks.
