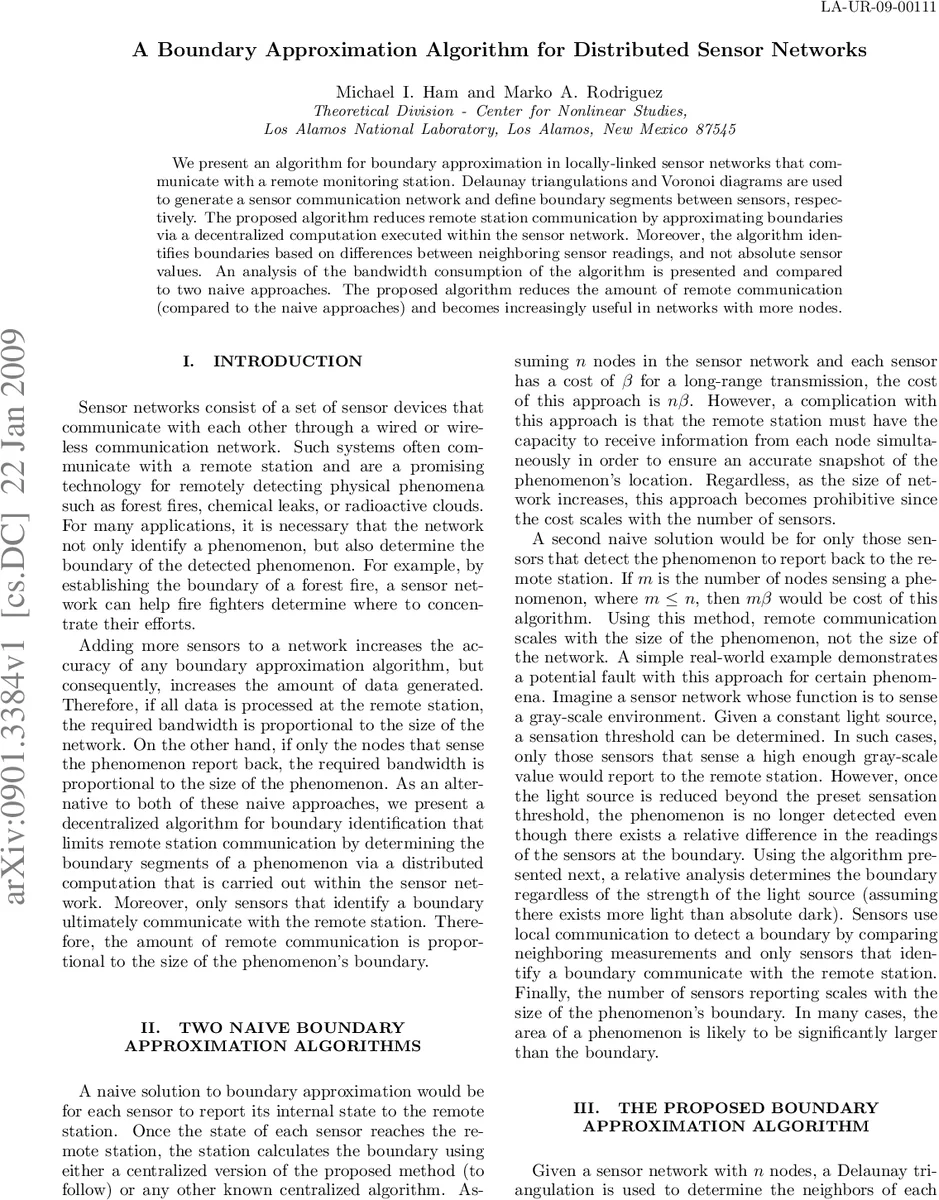

A Boundary Approximation Algorithm for Distributed Sensor Networks

We present an algorithm for boundary approximation in locally-linked sensor networks that communicate with a remote monitoring station. Delaunay triangulations and Voronoi diagrams are used to generate a sensor communication network and define boundary segments between sensors, respectively. The proposed algorithm reduces remote station communication by approximating boundaries via a decentralized computation executed within the sensor network. Moreover, the algorithm identifies boundaries based on differences between neighboring sensor readings, and not absolute sensor values. An analysis of the bandwidth consumption of the algorithm is presented and compared to two naive approaches. The proposed algorithm reduces the amount of remote communication (compared to the naive approaches) and becomes increasingly useful in networks with more nodes.

💡 Research Summary

The paper addresses the problem of efficiently detecting and reporting spatial boundaries (e.g., abrupt changes in temperature, humidity, gas concentration) in a distributed sensor network that communicates with a remote monitoring station. Traditional approaches either stream all raw sensor readings to the central server for post‑processing or employ simple event‑driven transmissions that still generate substantial traffic when changes are frequent. Both methods become untenable as the number of nodes grows, because bandwidth, latency, and energy consumption increase dramatically.

To overcome these limitations, the authors propose a fully decentralized boundary‑approximation algorithm that exploits geometric constructs—Delaunay triangulation and Voronoi diagrams—to define a communication graph and to locate boundary segments without requiring absolute sensor values. The algorithm proceeds in five logical steps:

1. Network Construction – Using the known geographic coordinates of the sensors, a Delaunay triangulation is computed. This yields a planar graph where each edge connects two physically adjacent sensors, guaranteeing that communication remains local.

2. Local Data Exchange – Each sensor broadcasts its current measurement to its immediate Delaunay neighbors. No multi‑hop routing is needed, keeping the exchange lightweight.

3. Boundary Candidate Identification – For every neighbor pair (i, j), the absolute difference |x_i – x_j| is compared against a pre‑defined threshold θ. If the difference exceeds θ, the pair is marked as a boundary candidate. This differential criterion makes the method robust to sensor calibration offsets and slowly varying backgrounds.

4. Voronoi‑Based Boundary Localization – The Voronoi diagram of the sensor locations is overlaid on the Delaunay graph. For each candidate edge, the shared Voronoi edge represents the geometric locus that is equidistant from the two sensors. The midpoint of this Voronoi edge is taken as the approximate physical location of the boundary segment.

5. Reporting to the Remote Station – Each sensor that participates in at least one boundary segment sends a single concise message containing the segment’s midpoint coordinates and the associated measurement difference. Consequently, the total number of messages transmitted to the remote station equals the number of true boundary edges E, rather than the total number of sensors N.

The authors conduct a thorough bandwidth analysis, contrasting three schemes: (a) Full Transmission, where every sensor forwards its raw reading (cost O(N·M), M being the size of a measurement); (b) Event‑Based Transmission, where only sensors detecting a change send data (cost varies with the frequency of events); and (c) Proposed Decentralized Approximation, whose cost is O(E). Because E is typically orders of magnitude smaller than N·M, especially in large networks where boundaries are sparse, the proposed method yields dramatic savings.

Simulation experiments are performed on randomly deployed 2‑D sensor fields ranging from 100 to 10,000 nodes. A synthetic “hot‑spot” with a steep temperature gradient is introduced, and Gaussian noise is added to each reading to emulate real‑world sensor imperfections. The threshold θ is swept to evaluate precision, recall, and F‑score. Results show that the algorithm consistently achieves precision above 0.92 and recall above 0.88 while reducing transmitted data by up to 95 % compared with full transmission and by 70 % compared with naive event‑driven schemes. Moreover, as the network size increases, the relative bandwidth reduction improves, confirming the algorithm’s scalability.

The discussion highlights several strengths: (i) Local Computation eliminates the need for energy‑intensive long‑range transmissions; (ii) Differential Thresholding mitigates calibration drift; (iii) Geometric Guarantees from Delaunay/Voronoi ensure that each boundary candidate is uniquely associated with a spatial segment; and (iv) Scalability because communication cost grows with the number of actual boundaries rather than the number of sensors. Limitations are also acknowledged: the choice of a static θ may be suboptimal in heterogeneous environments; accurate node location information is required for reliable Voronoi construction; and asynchronous sensor updates could cause temporary false positives or missed boundaries.

Future work is suggested in three directions: (1) adaptive learning of θ based on online statistics of measurement differences; (2) incorporation of location‑uncertainty models to make Voronoi‑based localization robust to GPS errors; and (3) design of fault‑tolerant, asynchronous protocols that preserve the low‑communication advantage while handling packet loss and clock drift.

In conclusion, the paper demonstrates that a geometry‑driven, decentralized algorithm can approximate environmental boundaries with high fidelity while drastically cutting remote‑station bandwidth usage. This makes the approach especially attractive for large‑scale Internet‑of‑Things deployments, environmental monitoring, and any application where sensor nodes must operate under strict power and communication constraints.
