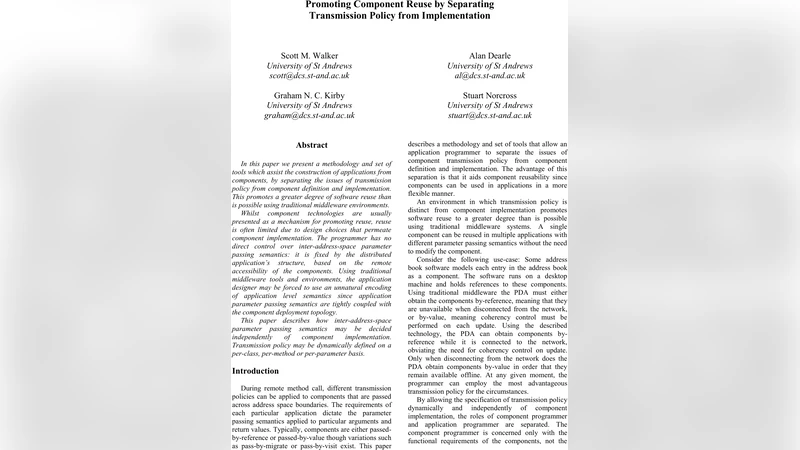

Promoting Component Reuse by Separating Transmission Policy from Implementation

In this paper we present a methodology and set of tools which assist the construction of applications from components, by separating the issues of transmission policy from component definition and implementation. This promotes a greater degree of software reuse than is possible using traditional middleware environments. Whilst component technologies are usually presented as a mechanism for promoting reuse, reuse is often limited due to design choices that permeate component implementation. The programmer has no direct control over inter-address-space parameter passing semantics: it is fixed by the distributed application’s structure, based on the remote accessibility of the components. Using traditional middleware tools and environments, the application designer may be forced to use an unnatural encoding of application level semantics since application parameter passing semantics are tightly coupled with the component deployment topology. This paper describes how inter-address-space parameter passing semantics may be decided independently of component implementation. Transmission policy may be dynamically defined on a per-class, per-method or per-parameter basis.

💡 Research Summary

The paper addresses a fundamental obstacle to component reuse in distributed systems: the tight coupling between a component’s implementation and the policy that governs how it is transmitted across address‑space boundaries. Traditional middleware such as Java RMI, .NET Remoting, CORBA, and Web Services fix the parameter‑passing semantics (by‑reference or by‑value) based on whether a class is declared remotely accessible. Consequently, the application programmer has no independent control over transmission semantics; the component programmer must anticipate the deployment topology and embed the chosen policy into the component’s code. This static binding forces developers either to constrain the application to the limited set of semantics offered by the middleware or to modify components whenever a different deployment scenario is required, thereby undermining the promise of component‑based reuse.

To overcome these limitations, the authors introduce the RAFDA Run‑Time (RRT), a middleware that separates transmission policy from component implementation. The core contribution is a Transmission Policy Framework that allows policies to be defined, modified, and queried at runtime, independent of the component’s source code. Policies can be specified at three granularities:

1. Class‑level policies – dictate the default transmission mechanism (by‑reference, by‑value, or any future mechanism) for all instances of a particular class. The rule applies only to the exact class, not to its subclasses, and is evaluated based on the actual runtime type of the object being transmitted.
2. Method‑level policies – apply to an entire method invocation, covering all parameters and the return value. A method policy can enforce a uniform transmission mode for all arguments, or specify a distinct mode for the return value.
3. Parameter‑level policies – provide the finest granularity, allowing the programmer to declare, for a given method, exactly which parameter(s) should be transmitted by‑reference, by‑value, or by any other supported mechanism.

Policy specification is performed through a singleton PolicyManager that exists once per address space. The manager maintains a database of policy rules and exposes static methods such as setClassPolicy, setMethodPolicy, and setParamPolicy. Each rule carries an isOverridable flag, indicating whether a higher‑priority rule may supersede it.

When a remote method call occurs, the RRT invokes the PolicyManager during serialization to obtain a TransmissionPolicy object via getTransmissionPolicy (for arguments) or getReturnTransmissionPolicy (for return values). The decision algorithm follows a strict hierarchy:

1. Parameter policy (highest priority)
2. Method policy
3. Class policy
4. Default policy (fallback)

If multiple rules are applicable, the “dominant” rule—i.e., the highest‑priority rule that is not overridden—is selected. The framework also supports co‑operative policy managers: a policy manager may query the remote address space’s manager for its rules, allowing the caller and callee to negotiate a mutually acceptable transmission mode. This is optional; a manager can operate purely on locally defined rules if desired.

The RRT’s design is deliberately middleware‑agnostic. Although the current implementation supports only by‑reference and by‑value, the policy framework is extensible to any transmission mechanism that the underlying middleware can provide (e.g., pass‑by‑migrate, pass‑by‑visit). Consequently, the same component can be deployed in heterogeneous environments without recompilation or source modification.

The paper illustrates the practical impact with a PDA‑address‑book scenario. When the PDA is online, address‑book entries are obtained by reference, eliminating the need for costly coherence control. When the PDA disconnects, the same entries are automatically switched to by‑value transmission, ensuring they remain locally available. This dynamic adaptation exemplifies how separating transmission policy from implementation enables developers to optimise for performance, availability, and consistency on a per‑use‑case basis.

In summary, the authors demonstrate that by decoupling transmission policy from component code and providing a runtime, hierarchical, and optionally cooperative policy management system, it is possible to dramatically increase component reuse, simplify development workflows for both component and application programmers, and overcome the rigidity of existing middleware platforms. The RRT serves as a concrete proof‑of‑concept, showing that such a separation is feasible, scalable, and beneficial for real‑world distributed applications.
