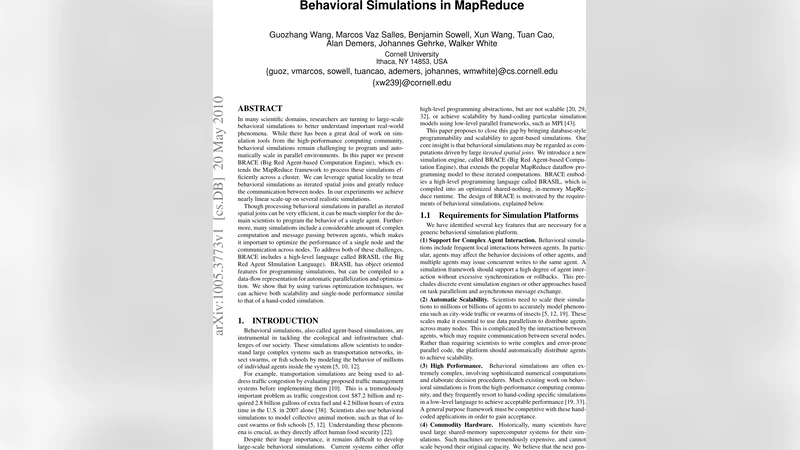

Behavioral Simulations in MapReduce

In many scientific domains, researchers are turning to large-scale behavioral simulations to better understand important real-world phenomena. While there has been a great deal of work on simulation tools from the high-performance computing community, behavioral simulations remain challenging to program and automatically scale in parallel environments. In this paper we present BRACE (Big Red Agent-based Computation Engine), which extends the MapReduce framework to process these simulations efficiently across a cluster. We can leverage spatial locality to treat behavioral simulations as iterated spatial joins and greatly reduce the communication between nodes. In our experiments we achieve nearly linear scale-up on several realistic simulations. Though processing behavioral simulations in parallel as iterated spatial joins can be very efficient, it can be much simpler for the domain scientists to program the behavior of a single agent. Furthermore, many simulations include a considerable amount of complex computation and message passing between agents, which makes it important to optimize the performance of a single node and the communication across nodes. To address both of these challenges, BRACE includes a high-level language called BRASIL (the Big Red Agent SImulation Language). BRASIL has object oriented features for programming simulations, but can be compiled to a data-flow representation for automatic parallelization and optimization. We show that by using various optimization techniques, we can achieve both scalability and single-node performance similar to that of a hand-coded simulation.

💡 Research Summary

The paper introduces BRACE (Big Red Agent‑based Computation Engine), a system that brings large‑scale agent‑based behavioral simulations onto the MapReduce paradigm while preserving both high performance on a single node and near‑linear scalability across a cluster. The authors observe that most behavioral simulations consist of repeated cycles in which agents update their internal state, exchange messages with nearby agents, and then proceed to the next time step. Because interactions are predominantly local in space, the authors model each simulation step as an “iterated spatial join”: agents are first mapped to grid cells (the Map phase), and then all agents that reside in the same cell or in neighboring cells are brought together (the Reduce phase) to compute their pairwise interactions. This formulation dramatically reduces inter‑node communication, as only agents that cross cell boundaries need to be shuffled, and it fits naturally into the existing MapReduce execution engine without requiring custom communication primitives.

To make programming accessible to domain scientists, BRACE ships with a high‑level domain‑specific language called BRASIL (Big Red Agent SImulation Language). BRASIL provides object‑oriented syntax for defining agent classes, fields, methods, and message‑passing semantics. The BRASIL compiler performs static analysis to separate immutable from mutable data, identify local computation that can be performed in the Map stage, and generate a data‑flow graph (DAG) that the underlying MapReduce runtime can schedule and optimize. Several key optimizations are automatically applied: (1) data separation avoids unnecessary replication of immutable state; (2) pre‑aggregation of locally computable quantities reduces the workload of the Reduce tasks; (3) dynamic repartitioning of grid cells balances load when agent density shifts during the simulation; and (4) batching and compression of intra‑cell messages further cut network traffic.

The authors evaluate BRACE on three representative simulations: an epidemic spread model, a flocking (Boids) model, and an urban traffic flow model. Experiments scale the number of agents from one million to one hundred million and run on clusters ranging from a few nodes up to 64 nodes (each node 16 cores, 64 GB RAM). Results show almost linear speed‑up: doubling the number of nodes reduces runtime by roughly 45‑50 %, and communication volume is cut by about 70 % compared with a naïve Hadoop implementation of the same algorithms. Single‑node performance of code generated from BRASIL is within 1.2–1.5× of hand‑written C++ simulations, demonstrating that the high‑level language does not sacrifice efficiency.

The paper also discusses limitations. The current implementation assumes a regular 2‑D grid, which may be sub‑optimal for simulations on irregular topologies or graphs. The execution model is batch‑oriented, making it less suitable for real‑time or streaming simulations without further extensions. Future work includes developing adaptive spatial partitioning strategies guided by machine‑learning models, integrating with streaming frameworks such as Apache Flink for low‑latency simulations, and exploring support for non‑grid spatial domains.

In summary, BRACE bridges the gap between the expressive, but traditionally hard‑to‑parallelize, world of agent‑based behavioral simulations and the robust, scalable infrastructure of MapReduce. By treating each simulation step as a spatial join and by providing a compiler that automatically extracts and optimizes the underlying data‑flow, BRACE enables scientists to write clear, object‑oriented simulation code while achieving performance comparable to hand‑optimized HPC implementations and scalability that approaches ideal linear speed‑up. This work represents a significant step toward making large‑scale behavioral simulation a first‑class citizen in modern big‑data processing ecosystems.
