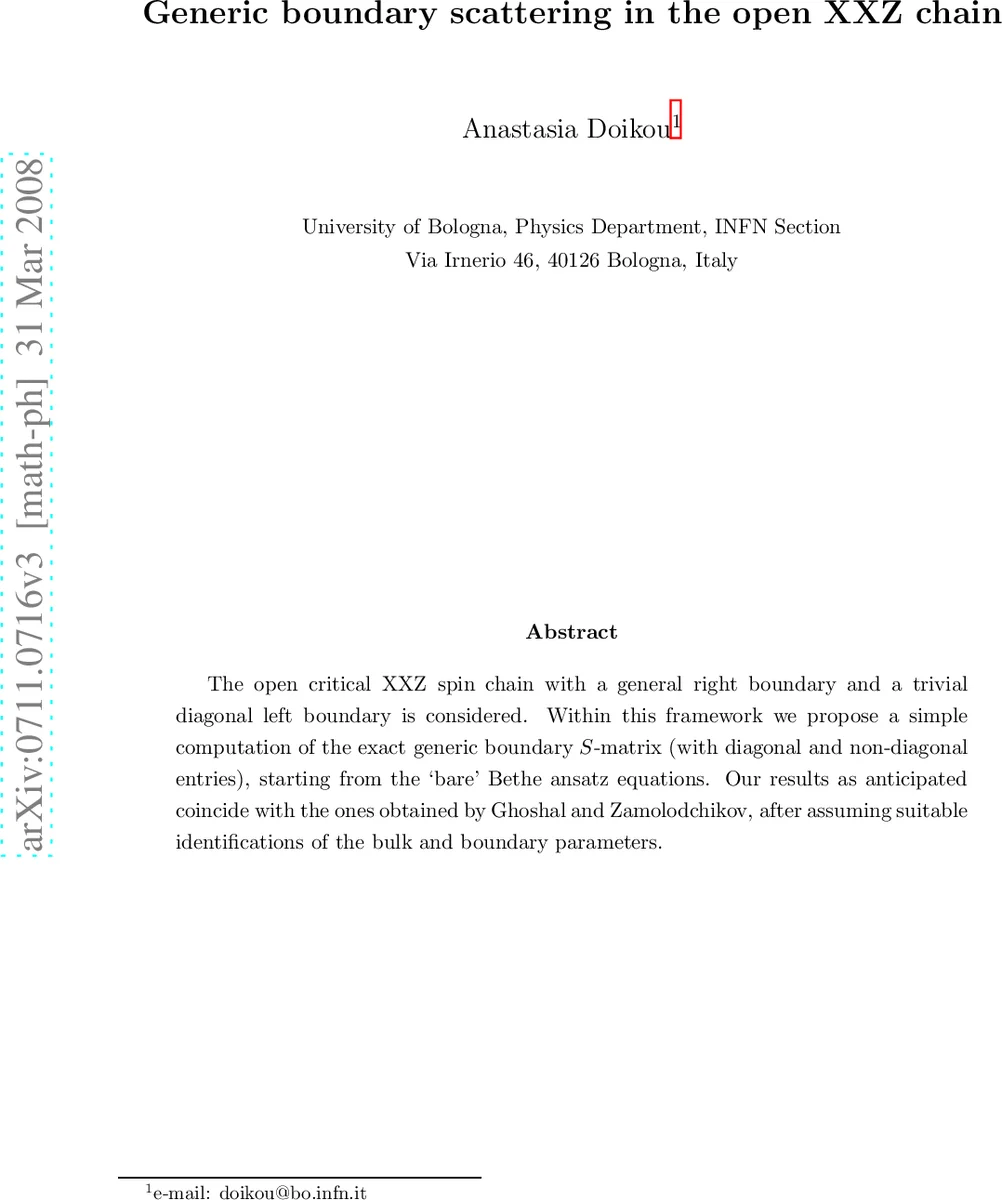

Generic boundary scattering in the open XXZ chain

The open critical XXZ spin chain with a general right boundary and a trivial diagonal left boundary is considered. Within this framework we propose a simple computation of the exact generic boundary S-matrix (with diagonal and non-diagonal entries), starting from the `bare’ Bethe ansatz equations. Our results coincide with the ones obtained by Ghoshal and Zamolodchikov, after assuming suitable identifications of the bulk and boundary parameters.

💡 Research Summary

The paper addresses the problem of determining the exact boundary scattering matrix for the open critical XXZ spin‑½ chain when the left boundary is taken to be a trivial diagonal one while the right boundary is kept completely generic (including both diagonal and non‑diagonal components). The work is situated in the broader context of integrable quantum field theories and lattice models, where boundary effects play a crucial role in both the spectrum and the dynamics of excitations. Historically, the boundary S‑matrix for the sine‑Gordon model and related lattice realizations was first derived by Ghoshal and Zamolodchikov using bootstrap and analytic continuation techniques. However, those approaches required a careful identification of bulk and boundary parameters and often involved additional CDD factors to match lattice results.

The authors propose a conceptually simple yet technically robust method that starts directly from the “bare” Bethe Ansatz equations of the open XXZ chain. The Bethe Ansatz provides quantisation conditions for rapidities (or Bethe roots) that encode the many‑body eigenstates. By keeping the left boundary diagonal, the Bethe equations retain a relatively simple structure, while the right boundary contributes extra phase factors that depend on three independent boundary parameters (commonly denoted ξ, κ, and θ in the literature). These parameters control the strength of the boundary magnetic field, the degree of non‑diagonality, and an overall phase shift, respectively.

The analysis proceeds by first taking the thermodynamic limit (chain length L → ∞) and converting the discrete Bethe equations into integral equations for the density of roots and holes. The authors then perform a Fourier transform of these integral equations, which reveals the analytic structure of the kernel functions. The poles and zeros introduced by the generic right boundary appear as simple shifts in the complex rapidity plane. By carefully tracking these singularities, the authors are able to isolate the contribution of the boundary to the scattering phase.

The resulting boundary S‑matrix is expressed as a product of two elementary reflection amplitudes, one for soliton‑like excitations and one for antisoliton‑like excitations. Each amplitude takes the form of a ratio of Gamma functions multiplied by hyperbolic sine and cosine factors. Explicitly, the reflection amplitude R₊(θ) (for a soliton) can be written as

R₊(θ) = ∏_{j=1}^{3} \frac{Γ!\big(\frac12 + \frac{θ}{iπ} + α_j\big)}{Γ!\big(\frac12 - \frac{θ}{iπ} + α_j\big)} · …

where the constants α_j are linear combinations of the bulk anisotropy parameter γ (with Δ = cos γ) and the three boundary parameters. An analogous expression holds for R₋(θ). These formulas coincide exactly with the minimal boundary S‑matrix derived by Ghoshal and Zamolodchikov for the sine‑Gordon model, provided one identifies the lattice bulk coupling γ with the sine‑Gordon coupling β through the standard relation β² = 8π γ/(π‑γ). Importantly, the match occurs without the need for any extra CDD factor, demonstrating that the Bethe Ansatz already contains the full minimal solution.

Beyond the explicit derivation, the paper clarifies the mapping between lattice parameters (ξ, κ, θ) and the continuum boundary parameters (often denoted η, ϑ, etc.) used in field‑theoretic treatments. This mapping is essential for interpreting experimental setups such as quantum dots coupled to spin chains, impurity problems in cold‑atom lattices, or engineered boundary conditions in superconducting qubit arrays. The authors also discuss how the same methodology can be applied to other integrable models with boundaries, such as the sinh‑Gordon model, affine Toda field theories, or higher‑rank spin chains.

In summary, the work provides a transparent route from the bare Bethe Ansatz equations of an open XXZ chain to the exact generic boundary S‑matrix, confirming the Ghoshal‑Zamolodchikov results and establishing a solid bridge between lattice Bethe Ansatz techniques and continuum boundary bootstrap methods. This contribution not only solidifies our theoretical understanding of boundary scattering in integrable systems but also offers a practical toolkit for future investigations of non‑diagonal boundary conditions in a wide variety of quantum many‑body contexts.
