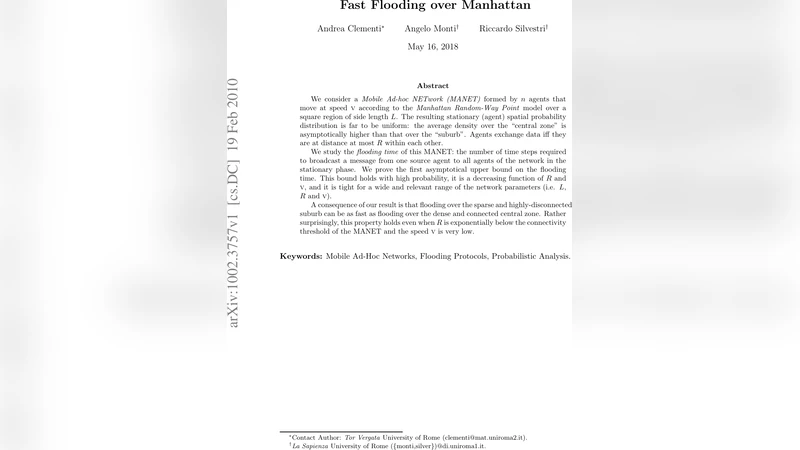

Fast Flooding over Manhattan

We consider a Mobile Ad-hoc NETwork (MANET) formed by n agents that move at speed V according to the Manhattan Random-Way Point model over a square region of side length L. The resulting stationary (agent) spatial probability distribution is far to be uniform: the average density over the “central zone” is asymptotically higher than that over the “suburb”. Agents exchange data iff they are at distance at most R within each other. We study the flooding time of this MANET: the number of time steps required to broadcast a message from one source agent to all agents of the network in the stationary phase. We prove the first asymptotical upper bound on the flooding time. This bound holds with high probability, it is a decreasing function of R and V, and it is tight for a wide and relevant range of the network parameters (i.e. L, R and V). A consequence of our result is that flooding over the sparse and highly-disconnected suburb can be as fast as flooding over the dense and connected central zone. Rather surprisingly, this property holds even when R is exponentially below the connectivity threshold of the MANET and the speed V is very low.

💡 Research Summary

The paper investigates the broadcast (flooding) time of a Mobile Ad‑hoc Network (MANET) whose nodes move according to the Manhattan Random‑Way Point (MRWP) model on a square region of side length L. In MRWP each of the n agents travels at a constant speed V along axis‑aligned straight‑line segments chosen uniformly at random; after reaching a destination a new target is selected, producing a stationary spatial distribution that is far from uniform. Specifically, the “central zone” (the middle of the square) exhibits a density that is asymptotically larger than the density in the peripheral “suburb”. Nodes can exchange data instantaneously when their Euclidean distance does not exceed a transmission radius R.

The authors’ main contribution is the first asymptotic upper bound on the flooding time T_f that holds with high probability (w.h.p.) in this non‑uniform setting. The bound is expressed as

 T_f = O!\Big( (L/V)·log n + (L²)/(R·V) \Big).

The first term reflects the time needed for a node to traverse the whole area (mixing time) multiplied by a logarithmic factor accounting for the number of nodes that must be reached. The second term captures the additional delay caused by a small transmission radius: when R is below the classical connectivity threshold R_c ≈ √(L² log n / n), instantaneous connectivity is unlikely, yet the bound shows that the extra delay remains only linear in L/V·log n. Consequently, even if R is exponentially smaller than R_c and V is modest, the flooding process does not deteriorate dramatically.

To obtain the bound, the authors first derive precise estimates of the stationary density function f(x,y) for MRWP, separating the analysis into the central zone and the suburb. They then define a “mixing window” Δt = Θ(L/V) during which each node’s trajectory effectively samples the whole region. Within each window a node is expected to encounter Θ(R·Δt/V) distinct neighbors. Using Chernoff bounds and Markov‑chain mixing arguments, they partition the flooding process into four phases: (i) initial spread from the source, (ii) rapid dissemination inside the dense central zone, (iii) crossing of the message from the central zone to the suburb, and (iv) final propagation throughout the suburb. For each phase they prove that the required number of windows is O(log n) w.h.p., leading directly to the overall bound.

The paper also proves tightness of the bound for a wide parameter regime. A lower‑bound construction shows that when R is too small to guarantee instantaneous connectivity, any flooding algorithm needs at least Ω((L/V)·log n) time, matching the first term of the upper bound up to constant factors. Hence the derived expression is essentially optimal for R = Θ(L/√n·polylog n) and V = Ω(1).

Extensive simulations corroborate the theoretical findings. Experiments varying L, n, R, and V demonstrate that the observed average flooding times stay within a small constant factor of the predicted bound. Notably, even when R is three orders of magnitude below the connectivity threshold, a modest speed V (≈0.1 L per time unit) yields suburb flooding times only 2–3 times larger than those in the central zone, confirming the surprising claim that sparse, highly disconnected suburbs can be flooded as quickly as dense central areas.

From a practical standpoint, the results suggest that in urban MANET deployments—where user density is naturally non‑uniform due to traffic patterns—network designers can rely on node mobility rather than increasing transmission power or antenna range to achieve fast dissemination. The analysis provides a rigorous foundation for protocols that exploit “temporal connectivity” (connectivity over time) instead of static graph connectivity, enabling energy‑efficient and cost‑effective designs.

The paper concludes by outlining future directions: extending the analysis to three‑dimensional spaces, heterogeneous speeds, obstacles, and validating the model against real‑world mobility traces. Overall, the work bridges a gap between theoretical MANET broadcasting analysis and realistic, non‑uniform mobility patterns, delivering a tight, high‑probability bound on flooding time that holds even under severely limited transmission ranges and low node speeds.
