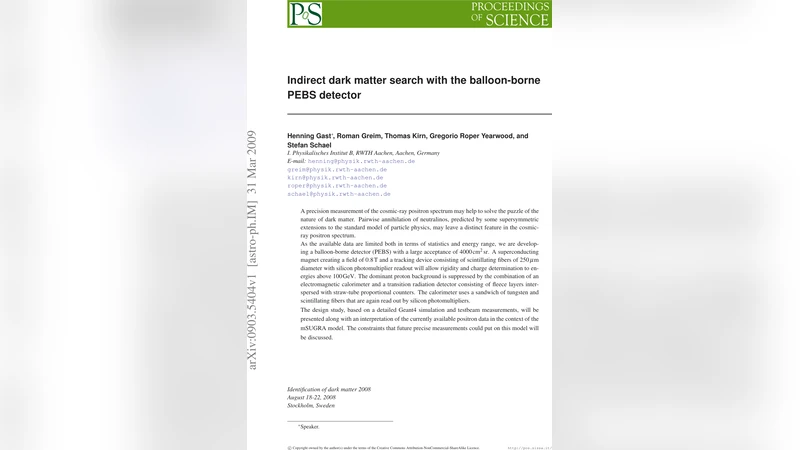

Indirect dark matter search with the balloon-borne PEBS detector

A precision measurement of the cosmic-ray positron spectrum may help to solve the puzzle of the nature of dark matter. Pairwise annihilation of neutralinos, predicted by some supersymmetric extensions to the standard model of particle physics, may leave a distinct feature in the cosmic-ray positron spectrum. As the available data are limited both in terms of statistics and energy range, we are developing a balloon-borne detector (PEBS) with a large acceptance of 4000 cm^2 sr. A superconducting magnet creating a field of 0.8 T and a tracking device consisting of scintillating fibers of 0.25 mm diameter with silicon photomultiplier readout will allow rigidity and charge determination to energies above 100 GeV. The dominant proton background is suppressed by the combination of an electromagnetic calorimeter and a transition radiation detector consisting of fleece layers interspersed with straw-tube proportional counters. The calorimeter uses a sandwich of tungsten and scintillating fibers that are again read out by silicon photomultipliers.

💡 Research Summary

The paper presents the design, expected performance, and scientific motivation for a balloon‑borne detector named PEBS (Precision Electron Balloon Spectrometer) aimed at indirect dark‑matter searches through high‑precision measurements of the cosmic‑ray positron spectrum. Supersymmetric extensions of the Standard Model predict that neutralinos, a leading dark‑matter candidate, can annihilate in pairs and produce a distinctive excess of high‑energy positrons. Existing measurements (e.g., from PAMELA, AMS‑02) are limited in statistics and energy reach, especially above a few hundred GeV, leaving the characteristic spectral features of neutralino annihilation largely unconstrained. PEBS is conceived to fill this gap by providing a very large geometric acceptance of 4000 cm² sr, enabling the collection of thousands of positrons in the 100 GeV–1 TeV range during multi‑day high‑altitude balloon flights.

The instrument’s core is a 0.8 Tesla superconducting solenoid that bends charged particles, allowing rigidity (momentum/charge) determination. Inside the magnet, a tracking system built from 0.25 mm scintillating fibers read out by silicon photomultipliers (SiPMs) delivers sub‑millimeter spatial resolution and fast timing, crucial for reconstructing particle trajectories up to >100 GeV. The SiPMs are chosen for their high photon‑detection efficiency, low operating voltage, and robustness in the low‑pressure, low‑temperature balloon environment; temperature‑dependent gain variations are corrected in real time using onboard sensors.

A major challenge is the overwhelming proton background, which constitutes >90 % of the cosmic‑ray flux. PEBS tackles this with a two‑layer particle‑identification system. First, an electromagnetic calorimeter composed of alternating tungsten plates and scintillating‑fiber layers measures the shower development; electrons/positrons generate compact electromagnetic cascades, whereas protons produce broader, more irregular hadronic showers. Second, a transition‑radiation detector (TRD) consisting of lightweight fleece radiators interleaved with straw‑tube proportional counters detects the X‑ray photons emitted when ultra‑relativistic particles cross interfaces of differing dielectric constants. The TRD response is markedly higher for electrons/positrons than for protons at the same momentum. By combining calorimetric and TRD observables through multivariate analysis (e.g., boosted decision trees or neural networks), the design targets a proton rejection factor better than 10⁻⁵ while retaining >80 % positron efficiency.

Mechanical and thermal engineering considerations are addressed to keep the total payload mass below ~1 ton, compatible with existing high‑altitude balloon capabilities. The superconducting magnet is cooled by a lightweight cryogenic system, and electromagnetic shielding is achieved with multi‑layer aluminum‑copper composites to suppress external noise. Data acquisition relies on fast FPGA‑based triggers and on‑board compression to handle the high event rate without overwhelming telemetry bandwidth.

Monte‑Carlo simulations indicate that a single long‑duration flight (≈30 days) would yield an order‑of‑magnitude improvement in statistical precision over current space‑based experiments across the 100 GeV–1 TeV interval. In particular, the detector would be sensitive to the spectral “bump” or “plateau” predicted by neutralino annihilation models around 200–300 GeV, providing either a discovery signal or stringent limits on the annihilation cross‑section. Moreover, the excellent charge sign determination afforded by the magnetic spectrometer enables a clean separation of positrons from electrons, allowing independent measurements of both components.

In summary, PEBS combines a high‑field superconducting magnet, ultra‑fine scintillating‑fiber tracking, and a dual‑technology background‑rejection system to achieve unprecedented acceptance and background suppression for high‑energy cosmic‑ray positron studies. Its successful deployment would significantly advance indirect dark‑matter searches, either confirming the presence of a neutralino‑induced positron excess or tightening constraints on supersymmetric dark‑matter models. Future work will focus on prototype testing, flight campaign planning, and refinement of the analysis algorithms to fully exploit the anticipated data set.
