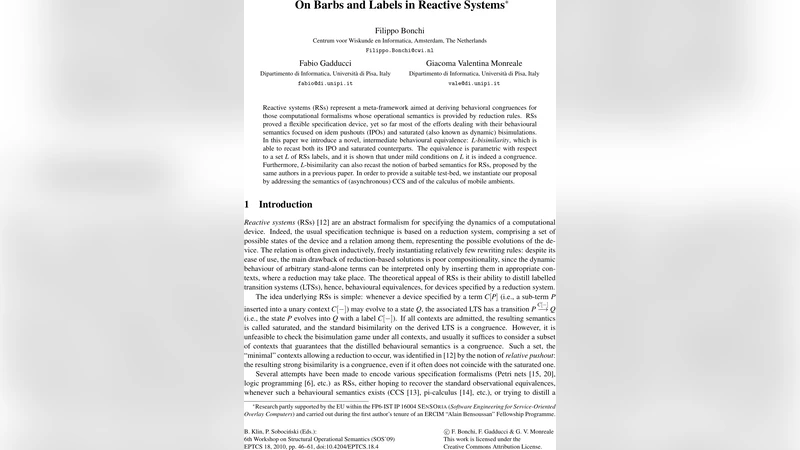

On Barbs and Labels in Reactive Systems

Reactive systems (RSs) represent a meta-framework aimed at deriving behavioral congruences for those computational formalisms whose operational semantics is provided by reduction rules. RSs proved a flexible specification device, yet so far most of the efforts dealing with their behavioural semantics focused on idem pushouts (IPOs) and saturated (also known as dynamic) bisimulations. In this paper we introduce a novel, intermediate behavioural equivalence: L-bisimilarity, which is able to recast both its IPO and saturated counterparts. The equivalence is parametric with respect to a set L of RSs labels, and it is shown that under mild conditions on L it is indeed a congruence. Furthermore, L-bisimilarity can also recast the notion of barbed semantics for RSs, proposed by the same authors in a previous paper. In order to provide a suitable test-bed, we instantiate our proposal by addressing the semantics of (asynchronous) CCS and of the calculus of mobile ambients.

💡 Research Summary

The paper addresses a longstanding gap in the behavioural semantics of Reactive Systems (RSs), a meta‑framework that captures the operational semantics of a wide range of computational formalisms through reduction rules. Historically, two main approaches have dominated the field: IPO‑based bisimilarity, which treats transitions without explicit labels and therefore provides only a minimal observation capability, and saturated (or dynamic) bisimilarity, which quantifies over all possible context extensions, yielding maximal discriminating power at the cost of considerable complexity and state‑space explosion.

To bridge this dichotomy, the authors introduce L‑bisimilarity, a parametric behavioural equivalence that is defined with respect to a chosen set L of labels. The construction works as follows: for transitions whose labels belong to L, the standard labelled‑transition bisimulation rules are applied; for transitions whose labels are not in L, the system falls back to the IPO treatment, i.e., they are considered “silent” and are matched by the usual IPO closure conditions. Consequently, L‑bisimilarity interpolates between the coarse IPO equivalence (when L is empty) and the fine‑grained saturated equivalence (when L contains all possible labels).

A central technical contribution is the proof that L‑bisimilarity is a congruence under mild algebraic constraints on L. The required conditions are: (1) L is closed under composition of labelled transitions, ensuring that sequential observations remain within the chosen label set; (2) L is closed under taking inverses of transitions, which guarantees that backward steps are also observable when forward steps are; and (3) labelled transitions respect context insertion, i.e., they commute with the structural operators of the RS. Under these assumptions, the authors show that if two processes are L‑bisimilar, they remain so after being placed in any RS context, thereby satisfying the essential compositionality property needed for modular reasoning.

The paper also revisits the barbed semantics previously proposed by the same authors. Barbs are observable predicates on processes (e.g., the presence of an output capability on a channel). By augmenting L with the specific barb‑inducing transitions, L‑bisimilarity subsumes the barbed equivalence: the two notions coincide when L is chosen precisely to capture the barb observations. This unification demonstrates that barbs can be treated as a special class of labels within the same formalism, simplifying the landscape of behavioural equivalences for RSs.

To validate the theoretical framework, the authors instantiate L‑bisimilarity on two well‑known calculi:

1. Asynchronous CCS – Here the label set L is taken to consist solely of output actions. The resulting L‑bisimilarity matches the established asynchronous barbed congruence, confirming that the framework can faithfully recover known equivalences while avoiding the full overhead of saturated bisimilarity.

2. Calculus of Mobile Ambients (MA) – For MA the authors select labels that correspond to ambient movement primitives (e.g., in, out, open). By doing so, L‑bisimilarity captures the spatial mobility aspects of ambients precisely. The authors demonstrate that the induced equivalence aligns with both IPO‑based and saturated equivalences when appropriate choices of L are made, illustrating the flexibility of the approach.

The experimental case studies reveal that L‑bisimilarity can be tuned to provide just enough observational power for a given application, thereby reducing the computational burden associated with saturated bisimilarity while retaining sufficient discriminating ability. The authors also discuss practical considerations: an ill‑chosen L may lead to overly coarse equivalences, whereas a too‑large L reintroduces the complexity of saturation. Hence, the design of L must be guided by the semantics of the target language and the properties of interest.

In conclusion, the paper makes three significant contributions: (i) the definition of a novel, parameterised behavioural equivalence that unifies IPO, saturated, and barbed semantics; (ii) a rigorous congruence theorem under easily verifiable conditions on the label set; and (iii) concrete demonstrations on asynchronous CCS and Mobile Ambients that showcase the practical utility of the approach. By offering a flexible middle ground between minimal and maximal observation, L‑bisimilarity opens new avenues for modular reasoning, verification, and tool support in a broad spectrum of reactive computational models.
