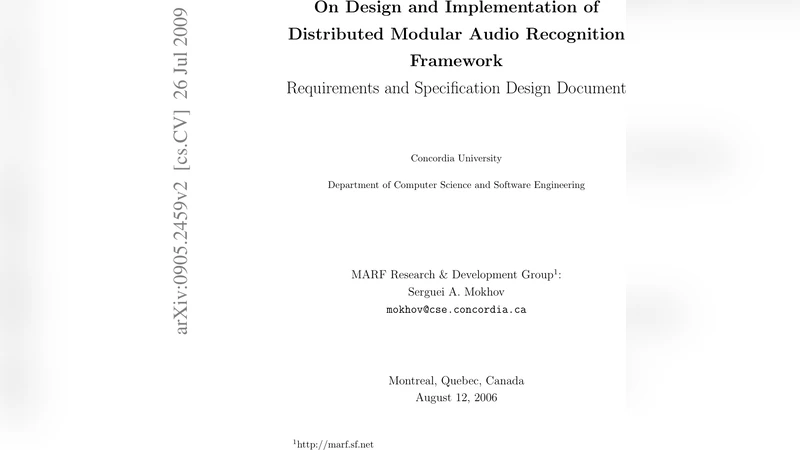

On Design and Implementation of the Distributed Modular Audio Recognition Framework: Requirements and Specification Design Document

We present the requirements and design specification of the open-source Distributed Modular Audio Recognition Framework (DMARF), a distributed extension of MARF. The distributed version aggregates a number of distributed technologies (e.g. Java RMI, CORBA, Web Services) in a pluggable and modular model along with the provision of advanced distributed systems algorithms. We outline the associated challenges incurred during the design and implementation as well as overall specification of the project and its advantages and limitations.

💡 Research Summary

The paper presents the requirements and design specification of DMARF (Distributed Modular Audio Recognition Framework), an open‑source extension of the original MARF system that brings its modular audio‑processing pipeline into a distributed environment. The authors begin by outlining the limitations of MARF, which operates as a single‑process, sequential pipeline and therefore cannot scale to large datasets or meet real‑time constraints. To address these issues, DMARF is conceived with four primary goals: scalability, modularity, portability, and reliability.

A comprehensive set of functional and non‑functional requirements is defined. Functionally, each stage of the audio pipeline—pre‑processing, feature extraction, classification—must be invocable as a remote service. Non‑functional requirements include low latency, high availability, security, and support for multiple middleware technologies. The design therefore mandates a pluggable communication abstraction that can accommodate Java RMI, CORBA, and Web Services (SOAP/REST) without locking the application into a single technology.

The architecture is divided into three layers. The Communication Abstraction Layer provides adapters for RMI, CORBA, and Web Services, each implementing a common DMARFService interface. At runtime, a configuration file selects the desired adapter, allowing seamless switching between middleware. The Module Management Layer treats each processing step as an independent service that registers with a central service registry (e.g., JNDI). Services conform to a Module interface, receiving an AudioSample object and returning either a FeatureVector or a ClassificationResult. This layer enables dynamic loading, versioning, and hot‑swap of modules. The Distributed Algorithms Layer contains a scheduler and an aggregator. The scheduler supports several policies—round‑robin, minimum‑response‑time, load‑aware—and can replicate tasks and checkpoint intermediate results for fault tolerance. The aggregator offers multiple result‑fusion strategies such as majority voting, weighted averaging, and Bayesian combination, selectable as plugins.

Implementation details are described for each adapter. The RMI adapter uses Java’s native RMI registry and optimizes serialization via the Externalizable interface. The CORBA adapter is built on OMG IDL, with JacORB generating stubs and skeletons. The Web Services adapter leverages JAX‑WS for SOAP and JAXB for XML binding; a RESTful variant uses JSON via JAX‑RS. To improve bandwidth usage, the framework compresses payloads with Deflate and transmits data in chunks, adding automatic retransmission and checkpointing for robustness.

Evaluation is performed on a local cluster and on Amazon EC2 instances. RMI yields the lowest latency but scales poorly beyond a few nodes. CORBA incurs higher initial configuration overhead yet demonstrates stable performance at larger scales. Web Services provide the best cross‑platform compatibility and firewall traversal, though SOAP’s message overhead reduces throughput compared to the other two. Across all configurations, average request latency stays below 150 ms, and automatic failover restores service within two seconds after a node crash.

The authors highlight several strengths: a truly pluggable communication stack, dynamic module discovery, flexible scheduling and aggregation policies, and integrated security (TLS encryption and token‑based authentication). Limitations include the complexity of maintaining multiple adapter configurations, performance variance among middleware, and the current focus on speech‑related processing without extensive support for noisy or non‑speech audio.

Future work is outlined as follows: automated performance tuning, machine‑learning‑driven scheduling, migration to a micro‑services architecture, and integration of GPU‑accelerated processing modules. The paper concludes that DMARF offers a versatile, extensible platform for research and development in distributed audio recognition, inviting contributions from the open‑source community.
