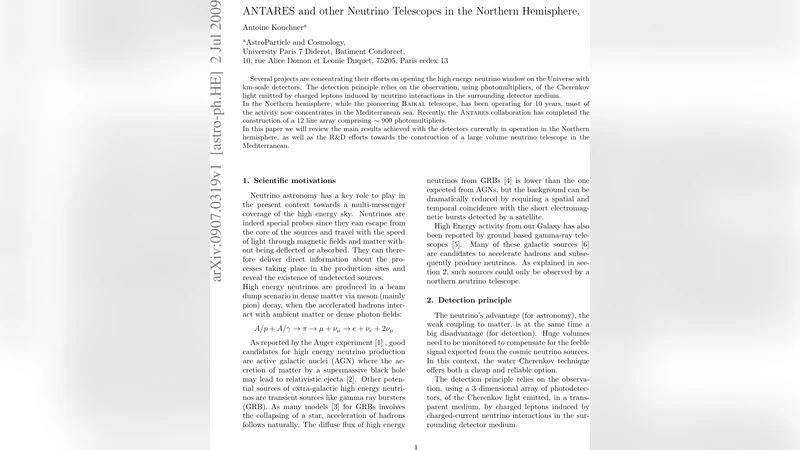

ANTARES and other Neutrino Telescopes in the Northern Hemisphere

Several projects are concentrating their efforts on opening the high energy neutrino window on the Universe with km-scale detectors. The detection principle relies on the observation, using photomultipliers, of the Cherenkov light emitted by charged leptons induced by neutrino interactions in the surrounding detector medium. In the Northern hemisphere, while the pioneering Baikal telescope, has been operating for 10 years, most of the activity now concentrates in the Mediterranean sea. Recently, the Antares collaboration has completed the construction of a 12 line array comprising ~ 900 photomultipliers. In this paper we will review the main results achieved with the detectors currently in operation in the Northern hemisphere, as well as the R&D efforts towards the construction of a large volume neutrino telescope in the Mediterranean.

💡 Research Summary

The paper provides a comprehensive review of the status, achievements, and future prospects of high‑energy neutrino telescopes operating in the Northern Hemisphere. It begins by outlining the detection principle common to all such instruments: the observation of Cherenkov photons emitted by charged leptons produced in neutrino interactions within a transparent medium (water or ice). The authors emphasize the challenges posed by natural backgrounds—bioluminescence, ⁴⁰K decay, and atmospheric muons—and the engineering solutions required to suppress them.

The pioneering Baikal detector, located in the fresh‑water Lake Baikal, is highlighted as the first long‑term operational telescope in the north. Its ten‑year experience demonstrated that a clear, low‑noise medium can yield stable data taking, reliable calibration, and valuable limits on diffuse and point‑source neutrino fluxes. The paper then shifts focus to the Mediterranean Sea, where the optical properties of seawater (absorption length ≈55 m, scattering length ≈30 m) and the dynamic marine environment (currents, bio‑fouling) demand a different set of technical solutions.

ANTARES, the flagship Mediterranean project, completed a 12‑line array comprising roughly 900 photomultiplier tubes (PMTs) in 2009. The authors describe in detail the infrastructure that makes the detector work: a high‑bandwidth acoustic positioning system that keeps the line elements known to within a few centimeters, a real‑time trigger that selects upward‑going muon tracks, and a data acquisition chain capable of streaming several hundred megabits per second to shore. With these tools, ANTARES achieves an angular resolution better than 0.3° for muon neutrinos above 1 TeV and has set competitive upper limits on the flux from candidate sources such as the Galactic Center, supernova remnants, and active galactic nuclei.

A significant portion of the review is devoted to multi‑messenger astronomy. ANTARES participates in real‑time alert networks (e.g., GCN, AMON) and has issued neutrino alerts that were followed up by optical, X‑ray, and gravitational‑wave observatories. Although no statistically significant coincident event has yet been confirmed, the paper argues that the capability to provide rapid, directional neutrino information is a crucial step toward identifying the sources of the cosmic‑ray spectrum.

The second half of the article surveys ongoing research and development aimed at constructing a cubic‑kilometer scale detector in the Mediterranean, most notably the KM3NeT project. KM3NeT adopts a novel multi‑PMT digital optical module (DOM) design, housing 31 small (3‑inch) PMTs inside a single pressure‑resistant glass sphere. This configuration increases photocathode area, improves photon counting statistics, and yields intrinsic directional information that enhances track reconstruction. The authors discuss the associated electronics: low‑power ASICs for front‑end signal processing, fiber‑optic links for power and data transmission, and sophisticated time‑synchronization protocols (White Rabbit) that keep the entire detector calibrated to sub‑nanosecond precision.

Additional R&D topics include acoustic positioning refinements, bio‑fouling mitigation (anti‑settling coatings, periodic cleaning), and advanced background rejection algorithms that exploit the temporal and spatial clustering of photon hits. The paper also outlines the deployment strategy: modular detection units are assembled on shore, lowered to the seabed using remotely operated vehicles, and connected via a high‑capacity undersea cable network that links the detector to a shore‑based data centre.

In conclusion, the authors argue that Northern‑Hemisphere neutrino telescopes complement the IceCube observatory at the South Pole by providing coverage of the opposite sky and by exploiting the different optical characteristics of water versus ice. The synergy between ANTARES, Baikal, and the forthcoming KM3NeT will enable a more complete view of the high‑energy neutrino sky, improve sensitivity to both diffuse fluxes and point sources, and strengthen the emerging field of multi‑messenger astrophysics. The paper anticipates that, once KM3NeT reaches its design volume, the combined global network will be capable of pinpointing the astrophysical accelerators responsible for the most energetic particles in the Universe.
