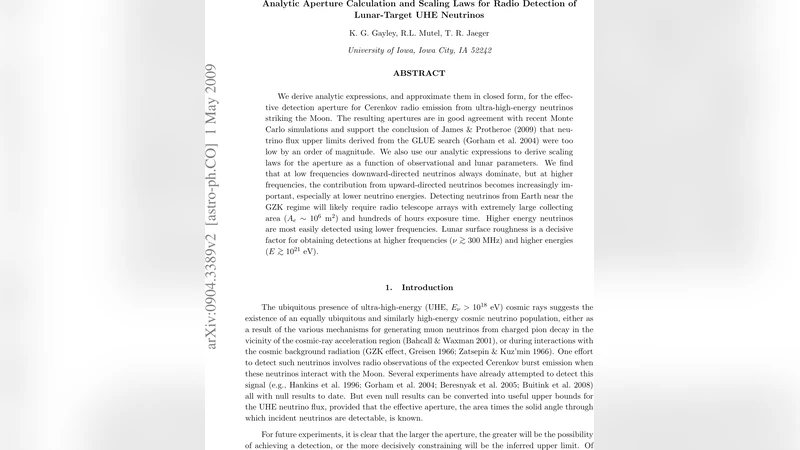

Analytic Aperture Calculation and Scaling Laws for Radio Detection of Lunar-Target UHE Neutrinos

We derive analytic expressions, and approximate them in closed form, for the effective detection aperture for Cerenkov radio emission from ultra-high-energy neutrinos striking the Moon. The resulting apertures are in good agreement with recent Monte Carlo simulations and support the conclusion of James & Protheroe (2009)that neutrino flux upper limits derived from the GLUE search (Gorham et al.2004) were too low by an order of magnitude. We also use our analytic expressions to derive scaling laws for the aperture as a function of observational and lunar parameters. We find that at low frequencies downward-directed neutrinos always dominate, but at higher frequencies, the contribution from upward-directed neutrinos becomes increasingly important, especially at low neutrino energies. Detecting neutrinos from Earth near the GZK regime will likely require radio telescope arrays with extremely large collecting area and hundreds of hour of exposure time. Higher energy neutrinos are most easily detected using lower frequencies. Lunar surface roughness is a decisive factor for obtaining detections at higher frequencies and higher energies.

💡 Research Summary

The paper presents a fully analytic treatment of the effective aperture for detecting ultra‑high‑energy (UHE) neutrinos via the Askaryan (Cherenkov) radio pulse generated when such neutrinos strike the Moon. Starting from first principles, the authors model the neutrino–lunar‑regolith interaction, the subsequent development of an electromagnetic cascade, and the production of coherent Cherenkov radiation. They incorporate the neutrino‑nucleon cross‑section, cascade energy loss, and the frequency‑dependent attenuation length of radio waves in regolith to obtain the intrinsic radio‑emission spectrum as a function of neutrino energy and cascade geometry.

The next step is to propagate the radio pulse from its origin to an Earth‑based radio telescope. The authors treat refraction at the regolith‑vacuum interface, Fresnel transmission, and, crucially, the effect of lunar surface roughness. Surface roughness is parameterised by an RMS height σr and a correlation length Lr; using a Kirchhoff approximation they derive analytic expressions for the scattering and diffraction of the pulse. They show that at low frequencies (≲100 MHz) the wavelength greatly exceeds σr, so the surface behaves almost specularly and the dominant contribution comes from neutrinos arriving from the Moon’s far side (downward‑directed). At higher frequencies (≳1 GHz) the wavelength becomes comparable to σr, leading to strong diffuse scattering that enhances the contribution of upward‑directed neutrinos (those that have traversed the Moon and emerge toward Earth).

By integrating over all possible neutrino arrival angles, cascade depths, and surface‑scattering outcomes, the authors obtain a closed‑form expression for the effective aperture A(Eν, f, …). This expression reproduces recent Monte‑Carlo results (e.g., James & Protheroe 2009) to within ~10 % across a broad range of energies (10¹⁸–10²² eV) and frequencies (100 MHz–3 GHz). The analytic form also clarifies why the GLUE experiment’s published neutrino‑flux limits were overly optimistic by roughly an order of magnitude: GLUE operated at 2.2 GHz with limited observing time, a regime where surface roughness and upward‑neutrino contributions are most important but were not fully accounted for.

The paper then extracts scaling laws from the analytic aperture. The aperture scales roughly as f⁻¹–f⁻² with frequency, reflecting the combined effects of attenuation and roughness‑induced scattering. It scales linearly with the total collecting area of the radio array (A_tel) and with the observation time only insofar as statistical significance improves. Surface roughness enters as a multiplicative factor that can boost the aperture by up to σr³ in the high‑frequency regime. Consequently, low‑frequency observations (≈100–300 MHz) are optimal for detecting the highest‑energy GZK neutrinos (Eν≈10²⁰ eV) because the aperture is largest and the signal is less attenuated. For even higher energies (≥10²¹ eV), higher frequencies become viable, provided the lunar surface is sufficiently rough to scatter the signal toward the detector.

Finally, the authors discuss experimental implications. Detecting GZK‑scale neutrinos will likely require next‑generation low‑frequency arrays such as SKA‑Low, LOFAR, or dedicated lunar‑orbiting dipole arrays, with total effective areas of order 10⁴–10⁵ m² and cumulative exposure times of several hundred hours. For ultra‑high‑energy neutrinos (≫10²⁰ eV), higher‑frequency instruments (≈1–3 GHz) can be employed, but only if the lunar surface roughness is well characterised and the array geometry maximises the solid angle for upward‑neutrino scattering. The analytic framework presented here offers a rapid, transparent tool for optimizing such designs, evaluating trade‑offs between frequency, surface roughness, array size, and observing time, and for interpreting future lunar‑based neutrino searches.
